Texture Address

PreviousCustom Frame Texture Coordinate WidthNextTexture Left

Last updated 4 months ago

Was this helpful?

Introduction

The Texture Address variable can be used to define the area that the NineSlice displays. By default the Texture Address is set to Entire Texture which means the NineSlice will display the entire source file (split up among the nine pieces).

NineSlice only supports Entire Texture and Custom for the Texture Address value. It does not support Dimension Based, which is only available on the element.

Entire Texture

The following screenshot shows an entire texture being used for a NineSlice.

The entire texture is split up into 3 sections horizontally and 3 sections vertically, matching up the texture coordinates used to display the NineSlice's 9 sections.

Custom

The Custom value allows specifying a custom set of coordinates for the Nine Slice. Custom is most often used when an image is part of a sprite sheet. The following example uses this image:

The NineSlice uses the following variables:

  • Texture Address = Custom

  • Texture Top = 0

  • Texture Left = 0

  • Texture Height = 40

  • Texture Width = 40

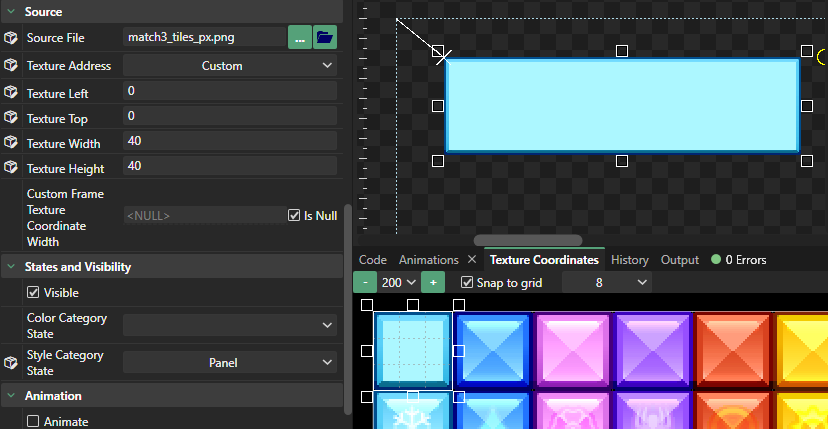

These values result in the the following NineSlice:
