Overworlds are used to provide a high-level map for the player. When interactive, overworlds can be used for the player to select a level. The following tutorials cover various aspects of overworld creation and logic.

Introduction

The previous tutorial created a Screen which holds our world map Sprite. This tutorial will be all code. We'll be modifying the Camera to make it look like we are "falling" into the world map.

Changing the Camera to 3D

As mentioned before, we will be changing the Camera to 3D in code. The real ActRaiser game would be played with a 2D camera, and only switch to 3D for this one screen. To make the Camera 3D:

1. Open the project in Visual Studio

2. Open the Mode7Screen.cs file

3. Change CustomInitialize so that it sets the Camera as a 3D camera:

void CustomInitialize()
{
    Camera.Main.Orthogonal = false;

    // This is roughly the starting distance which mimics the real game
    Camera.Main.Z = 750;
}

The first line tells the camera to use a 3D projection. By default the camera has Orthogonal=true which means it is using a 2D camera. A 3D camera will be necessary so that the ground Sprite will appear larger as the camera gets closer. The starting Z value can be thought of as the altitude that the camera starts at. A larger value results in the camera starting higher up. This value of 750 results in the map appearing at a similar height to the real ActRaiser game. This was obtained through iterative changes while comparing the view to the YouTube video in the previous tutorial. The camera will begin at roughly the right height, just like the real game.

Adding the Falling Logic

Next we'll add code to make the Camera fall. In the real game, the falling doesn't begin immediately. Instead, the screen fades in from black, then the falling begins after the fading in finishes. Therefore, we don't want to have the logic for falling begin immediately. Instead, we'll use the Call.After syntax to make the animation happen a little bit later. But first, let's create the function which modifies the Camera behavior.

private static void BeginCameraFalling()
{
    var secondsPerRotation = 5.0f;
    var fallingSeconds = 8.0f;

    Camera.Main.Z = 750;
    Camera.Main.RotationZ = 0;
    Camera.Main.ZVelocity = -(Camera.Main.Z / fallingSeconds);
    Camera.Main.RotationZVelocity = MathHelper.TwoPi / secondsPerRotation;
}

We can adjust the two values at the beginning to change the rotation speed of the camera, or to change how fast it falls to the ground. These values roughly create the feel of the game. Notice that this function also resets the Camera's Z position to 750 so that we can reset it and test the falling multiple times without restarting the game. Finally, we'll modify the CustomActivity method to allow us to start the falling behavior, and to change the camera's Up vector.

void CustomActivity(bool firstTimeCalled)
{
    Camera.Main.UpVector = Camera.Main.RotationMatrix.Up;
    if(InputManager.Keyboard.KeyPushed(Microsoft.Xna.Framework.Input.Keys.Space))
    {
        BeginCameraFalling();
    }
}

The line which assigns the UpVector is necessary to allow the main Camera to rotate on its Z axis. By default, FlatRedBall Cameras cannot rotate on Z unless this line of code is added. The remainder of the function allows us to start and restart the falling movement. We can now run the game and press the space bar to begin falling.

Conclusion

This already looks fairly close to the real game. The next tutorial will add fading in/out to the screen and a little bit of cleanup to make this screen easier to integrate with other screens.

Introduction

This tutorial shows how to create an effect similar to the Actraiser spinning sequence which plays before each of the platformer levels. To see this in action, see the following video: [embed]https://youtu.be/iJTnHa9aWiA?t=68[/embed] Fortunately FlatRedBall supports 3D cameras, so the effect is fairly easy to create. We will begin with an empty project to show how this effect can be created from scratch. My project is called ActraiserMode7.

Creating a Screen

Normally we use the Glue Wizard to set up a project. In this case we won't use the Glue Wizard because we won't be creating a full game. Rather, we'll just create a single Screen which is not a typical FRB Screen - it won't have any collision, entities, or even any UI. Since this Screen will be fully self-contained, everything we do in this tutorial can be done in an existing project too. First, we'll add a new Screen:

1. Click the Add Screen/Level button in the Quick Actions tab
2. Enter the name Mode7Screen

3. Select the Empty Screen option

4. Click OK

Camera Setup

Next we'll make sure our Camera is set up properly.

1. Click the Camera icon in the toolbar

2. Set the resolution to 256x224 to match the SNES resolution

3. Keep the perspective as 2D - even though our game will use 3D perspectives, in a real game the 3D perspective is temporary. We will use a 3D camera in this Screen, but we want other screens to be 2D.

4. Change the Texture Filter to Point

5. Change the Scale to a larger number such as 300% or 400% so the window is large enough to see clearly

Adding the WorldMap Sprite

Next, click the Add Object to Mode7Screen and add a Sprite.

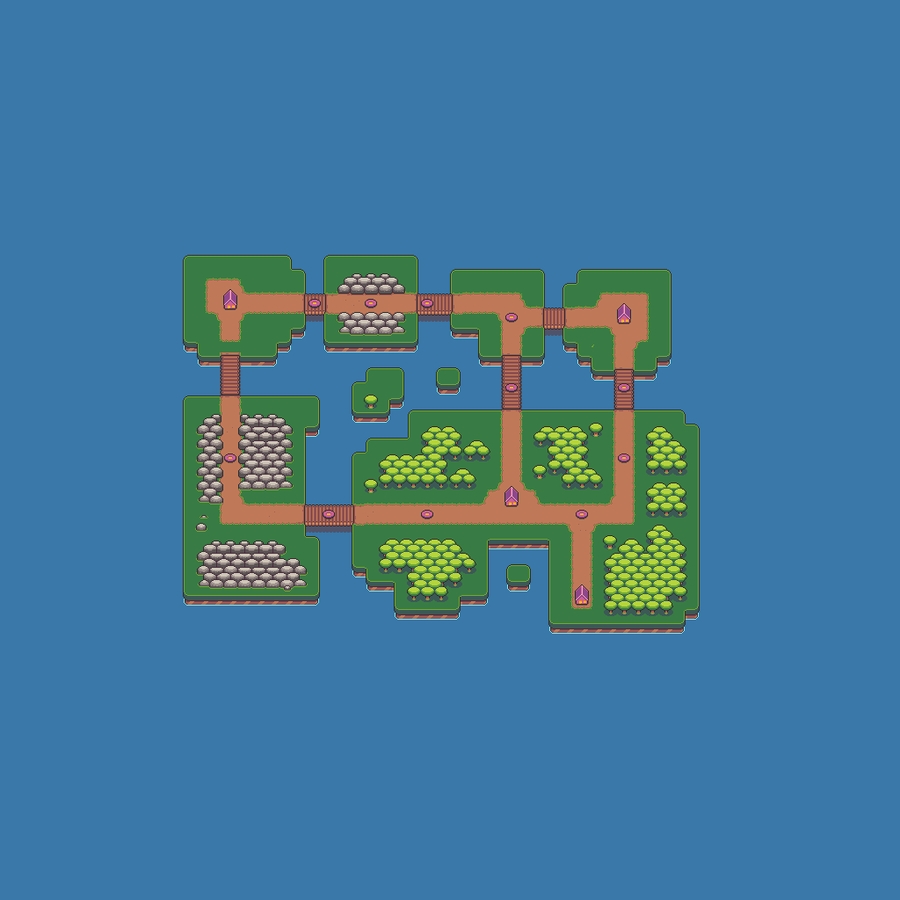

Finally, set the SpriteInstance's Texture property to OverworldMapImage.

Our game now displays the Sprite (or at least part of it) if we run it.

Conclusion

Our game is now set up to display the world map. The next tutorial will add the Camera behavior to mimic the behavior in ActRaiser when starting a new game.

Introduction

The previous tutorial ended with the camera falling and rotating in a way similar to the falling sequence in ActRaiser. In this tutorial we'll be adding fading in and fading out using Gum.

Adding a Gum Screen

We will be using Gum to fade our screen in and out by overlaying a black colored rectangle with animated alpha. As an alternative we could also fade the screen by creating an overlay Sprite in FlatRedBall. Gum will resolve a few problems for us automatically, such as not having to worry about positioning our overlay Sprite so it always sits in between the camera and world Sprite. To add Gum, click the Add Gum Project button in the Quick Actions tab.

Normally Gum screens will be created whenever adding a new Glue screen, but we already have an existing Glue screen that was created before adding the Gum project. We can add a Gum screen:

1. Expand the Screens folder

2. Right-click on the Mode7Screen

3. Click Create New Gum Screen for Mode7Screen

Now we can open the Gum project by clicking on the Gum icon in the toolbar.

Our Gum project will have a Screen called Mode7ScreenGum.

Adding Overlay Rectangle

To add an overlay ColoredRectangle:

1. Expand the Standards folder

2. Drag+drop the ColoredRectangle type onto the Mode7ScreenGum

3. Rename the newly-created ColoredRectangle to **OverlayRectangle

**

1. Change the color of the rectangle to Black (Red, Green, and Blue values set to 0)
2. Click the Alignment tab

3. Change the Dock to fill

We now have a fully opaque black overlay in our game. If we run the game now, the black overlay will completely cover the spinning map.

Creating Opacity State Category

The fade-in and fade-out will be Gum animations. Since animations in Gum are created using states, so we must first create a state category and two states:

1. Right-click in the States list box

2. Select Add Category
3. Enter the category name Opacity. Avoid naming the category an existing name like Alpha

4. Right-click on Opacity and select Add State
5. Enter the name Opaque

6. Add another state and name it Transparent

Notice that when a state is selected, Glue informs you that you are editing that particular state. Any change you make to the object when a state is selected will apply to the state, so be sure to only change properties that you want changed in the state. In our case, the only property we want to change in a state is the OverlayRectangle Alpha property:

1. Select the Transparent state

2. Verify OverlayRectangle is selected

3. Change Alpha to 0

The Opaque state automatically inherits the default value of 255, so no changes are needed on this state. We can see the two states by clicking on them and observing the change in the Editor window.

Creating Gum Animations

The two states we created above (Opaque and Transparent) will be keyframes in our animations. We'll create our two animations next:

1. Click State Animation -> View Animations to view/edit animations for Mode7ScreenGum
2. The Animations tab will appear in the bottom right tab view, so you may need to expand it to view animations
3. Click the Add Animation button
4. Enter the name FadeIn (no spaces) and click OK
5. Click the Add State button to add a keyframe to the animation
6. FadeIn animation will begin Opaque and animate to Transparent, so select the Opacity/Opaque state first and click OK
7. The Opaque state will be added at time 0.00

8. Repeat the steps above to add the Transparent state

Gum adds the second keyframe at time 1.00, and we can use the play button to view the animation in the editor window.

Repeat the steps above to add a FadeOut animation. The first state should be Opacity/Transparent, and the second should be Opacity/Opaque.

By default both of our animations are 1 second in length. The fade in and fade out in ActRaiser are much shorter, around .3 seconds. We can speed the animations up by changing the Time variable on the second state in both FadeIn and FadeOut.

Playing Animation in Code

Now that our animations are defined in Gum, we can play them in code. The logic we will be implementing will perform the following:

• Begin playing the FadeIn animation. The camera should not be moving yet.

• Once the FadeIn animation finishes, the camera should begin falling and spinning.

• When the camera is close to the ground, the FadeOut animation should play.

We want the FadeOut animation to finish right when the camera reaches the ground. We will be using the length of the animations to decide when to start falling and when to start playing the FadeOut animation. We could either use await Task.Delay or we could use the built-in FlatRedBall method Call to delay the falling and fade out animation playing. We use Task.Delay for simplicity, but keep in mind that this approach will not respect slow-motion settings in Glue or changes to TimeManager.TimeFactor. Modify the Mode7Screen so it contains the following code:

Now when we run the game, it begins with a black screen which fades in, the camera falls, and before it hits the ground it fades back to black.

Conclusion

While it may seem like we spent a lot of time creating simple fade-in and fade-out animations, becoming fluent with using Gum is worthwhile since it is so commonly in FlatRedBall development. Now that the animation is done, we're finished. Congratulations, you have created a screen similar to the ActRaiser falling animation scene!
