Node Network (.nntx)

Introduction

A NodeNetwork is a collection of nodes (points in world space), connected by links. A node network is used to perform "pathfinding" - the movement logic for navigating a map with obstacles.

Creating a NodeNetwork in Glue

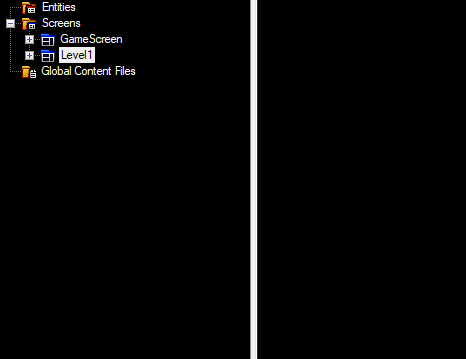

Glue has built-in support for working with NodeNetworks. To add a NodeNetwork to your level screen:

1. Expand your level Screen in Glue

2. Right-click on the Files folder

3. Select Add File -> New File

4. Use the dropdown to select Node Network (.nntx)

5. Change the name of the file if desired

6. Click OK

Editing a NodeNetwork File

To edit a NodeNetwork file, double-click the file in Glue and the AIEditor should open. If you have not set up the file associations, you can do this by following these steps:

1. Right-click on the node network in Glue

2. Select View in Explorer

3. Right-click on node network file (.nntx) in Windows Explorer

4. Select Open with...


5. Click More Apps to expand the list

6. Scroll to the bottom of the list and select Look for another app on this PC


7. Navigate to the location where the FRBDK was unzipped (this is also where Glue is located)

8. Find the AIEditor.exe and select that as the default application

Note that you may need to install XNA 3.1 Redistributable to run the AIEditor. For more information, see the AIEditor page.
