Height Units

PreviousHas EventsNextIgnored By Parent Size

Last updated 2 months ago

Was this helpful?

Introduction

Height Units controls how a unit is vertically sized, which may be relative to its parent. By default most types uses Absolute height, where each unit represents 1 pixel of height in pixels. When using Absolute, an object ignores its parent's Height.

Absolute

The following shows a child with 50 Absolute Height:

Text instances which use an Absolute height of 0 size themselves to be the height of their contained text. This behavior will likely change in future versions of Gum so this combination is not recommended. Instead, to size a Text instance according to its contained text, Set Height Units to Relative to Children.

Relative to Parent

The following shows a child ColoredRectangle with -10 Relative to Parent Height, which means is sized 10 pixels less tall than its parent.

Percentage of Parent

The following shows a child ColoredRectangle with 100 Percentage of Parent, which means it has 100% of the height of its parent. Note that 100 Percentage is the same as 0 Relative to Parent:

Ratio of Parent

Ratio of Parent can be used to fill available space or to share available space with other objects using a ratio.

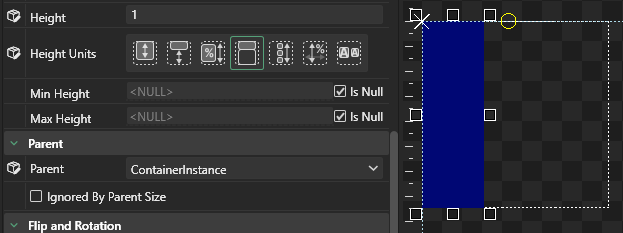

The simplest case is a single child in a container with its Height Units set to Ratio of Parent.

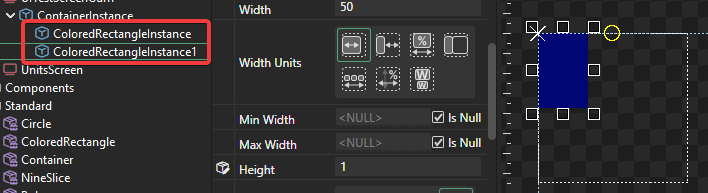

As more children are added, each child's height is adjusted to make room for the new children.

Ratio values are distributed among all siblings using Ratio of Parent proportionally. The image above shows four siblings, each given 1/4 of the ratio. If one of the the ratios changes (such as by increasing the second sibling's Height value to 3), then all siblings adjust in response to this change.

In this case, the total ratio is 6 (1 + 3 + 1 + 1), so the red is given 3/6 (1/2) of the parent's height, while each of the others is given 1/6 of the parent's height.

Values of 0 are supported, resulting in the object drawing with an absolute height of 0.

Ratio of Parent is calculated after accounting for the height of children which are using absolute height. For example, if the height of the first child is 80 with a Height Units of Absolute, then the other three shrink to give the first the necessary room.

This effect can also be seen by adjusting the height using the handles.

Gum ignores invisible objects when calculating available space for Ratio of Parent units. Therefore, if a sibling is invisible, Gum treats it as if it has 0 height which allows all other ratio siblings to expand.

Relative to Children

Relative to Children can be used to size an object based on the position and sizes of a parent's children. The following image shows a container with 0 Relative to Children Height, which means that its height is set just large enough to contain its children. Notice that if the children are moved, the parent's height adjusts. Both children are considered so the container adjusts its height according to the bottom-most side of either child:

A non-zero Height when using Relative to Children can be used to add additional padding to a parent container. The following animation shows how changing the height can adjust the absolute height relative to children:

Ignored Height Values

A parent container can ignore its children when it determines its own height when using a Height Units of Relative to Children if any of the following are true:

  1. The child's Ignored By Parent Size is true.

  2. The child's height depends on its parent's height. This circular dependency is resolved by the parent ignoring this child.

  3. The child is explicitly positioned outside of parent's bounds

  4. The child's Y Units is Percentage of Parent Height

Child's Ignored By Parent Size is True (1)

Child Depends on Parent Height (2)

If a child's height depends on the parent, then the child is ignored by the parent. Once the parent has determined its own height, then the child is sized according to the parent. This type of circular dependency is common when adding background visuals to a container.

For example consider a container with two children - BlueRectangle and YellowRectangle - with the following variables:

  • BlueRectangle Y = Pixels from Top

  • BlueRectangle Height Units = Absolute

  • YellowRectangle Height Units = Relative to Parent

Only YellowRectangle depends on its parent.

Since BlueRectangle's absolute height value does not depend on the parent, the parent can use BlueRectangle's absolute height when calculating its own absolute height. Since YellowRectangle depends on the parent, the parent ignores the YellowRectangle. Instead, YellowRectangle depends on the parent container's absolute height for calculating its own absolute height. This in effect creates a situation where BlueRectangle affects the height of both its parent and also its YellowRectangle sibling.

Child Explicitly Positioned Outside of Parent's Bounds (3)

A parent does not consider a child if the child is explicitly positioned outside of the parent's bounds. This can happen if the child's Y Units and Y values result in the child being drawn outside of the parent's bounds.

If a child has Y Units of Pixels from Top and its Y value pushes the child out of the top of its parent, then the portion that is outside of the top of the parent is ignored. The BlueRectangle in the following image has an absolute height of 50. Its Y value is -20, so only 30 pixels are used to determine the parent's height.

Similarly, if a child uses a Y Units of Pixels from Bottom then the parent does not consider the height of any portion which is outside of its bounds. The following animation shows RedRectangle placed outside of the bottom of its bounds with a Y Units of Pixels from Bottom.

Notice that if RedRectangle is moved so that it is inside the bounds, it can affect the absolute height of the parent. As RedRectangle is moved into the bounds, the parent grows to accommodate the desired RedRectangle Y value.

If a child is a Text instance using a Y Origin of Baseline and a Y Units of Pixels from Bottom, then portions of the text which fall below the baseline are ignored by the parent's height.

Child Y Units is Percentage of Parent Height (4)

A parent ignores its child if the child uses a Y Units of Percentage of Parent Height because this also creates a circular dependency (parent height depends on child position, child position depends on parent height).

Relative to Children and Auto Grid Vertical

If a parent sets its Height Units to Relative to Children, then it resizes itself to contain its children. Normally, the height of the entire parent is determined by the child which needs the most space vertically. If the parent uses an Auto Grid Vertical layout, then the children control the size of the cells as well as the entire parent. Since all cells must be the same size, the child which needs the most amount of space vertically determines the height of all cells.

For example, the following image shows a four by four grid, each containing one white rectangle. The first rectangle has an Absolute Width and Height of 100, so each cell is sized to be 100x100. Note that the other rectangles are 50x50.

The largest child determines the cell size for all other children. Therefore, if a child is moved or resized so it outgrows its cell, then the parent height adjusts in response.

The height of a container is determined by the height of the largest cell multiplied by the number of rows. If the parent contains enough rows to support all of its children, then the Auto Grid Vertical Cells value is used to determine the number of rows displayed.

For example, the following container has 4 columns and 3 rows, resulting in 12 cells. The height of the grid is based on 3 rows multiplied by the height of the largest cell.

If children are removed from the container, the container's height does not change - Auto Grid Vertical Cells acts as a minimum number of rows.

Since Auto Grid Vertical Cells acts only as a minimum and not maximum, more children can be added and the container expands to support the newly-added children.

Relative to Children and Text

The term "children" can refer to:

  • Instances added to a parent, such as ColoredRectangles added to a Container

  • Individual letters in a Text instance - each letter and line of text can expand the height of its parent

The following animation shows a Text instance which has its Height Units set to Relative To Children. As more lines of text are added, the Text automatically expands in size.

The height of a Text instance using Relative to Children depends on the number of lines displayed by the Text instance and the maximum line height given the current font properties. Therefore, the height of a Text stance remains the same regardless of the contents of a single line.

For example, the following image contains multiple Text instances. Each has a single line of text, but the line of text differs in the height of each character. Notice that the texts are all the same height even though the contents of their lines differ.

We can observe the absolute height of a Text instance by mousing over one of the handles for resizing vertically.

In this case, the height is 41 pixels tall. This is based on the lineHeight as defined on the .fnt file. The image above is using an Arial 36 font which has a lineHeight value of 41 pixels.

Percentage of Width

Percentage of Width adjusts the object's effective height so it remains proportional to the Width value multiplied by the Height value (as a percentage). For example, if a Height value of 200 is entered, then the effective height is 200% (2x) of the Width.

The following image shows a child ColoredRectangle with a Height of 200 Percentage of Other Dimension. In this image, the Width value is 50 units, so the effective height is 100 units:

Percentage of File Height

The following image shows a child Sprite with 200 Percentage of Source File Height, which means it draws two times as tall as its source image:

This value depends on the Sprite's Texture Height property, so changing Texture Height also changes the Sprite's absolute height.

Maintain File Aspect Ratio Height

Sprites can select a Height Unit called Maintain File Aspect Ratio Height which sets the height of the sprite so its aspect ratio matches its source file multiplied by the Height value. Usually Maintain File Aspect Ratio Height is used with a Height value of 100 so that the Sprite shows is source file at the correct aspect ratio.

When this value is used, a Sprite's Width can be changed resulting in its absolute height also changing.

When using Maintain File Aspect Ratio Height, the Sprite's absolute height depends on the Sprite's Texture Height property.

All relationships between parent and children depend only on the direct parent or child. Grandchildren and grandparents are not considered when performing calculations. For more information, see the page.

In this case the blue has no siblings (its parent has no other children), so it occupies the entire parent height. If a second child is added (by copy/pasting the existing child), then each child is given 1 ratio value, which means each is 1/2 of the size of the entire parent.

To better visualize the effect of ratio, it's common to set the parent's to Top to Bottom Stack, and to give each child a different color as shown in the following image.

Ratio of Parent also respects . A Stack Spacing value greater than 0 removes the available space for all children with a Height Units of Relative to Parent.

The following image shows a child with 50 Relative to Children Height, which means that it is 50 pixels taller than is necessary to contain its children. Since the rectangle has no children, this is the same as having 50 Absolute Height:

If a child has its Ignored By Parent Size set to true, then the parent ignores this child when calculating its own size. For more information, see the page.

can select a Height Units called Percentage of File Height, which sets the height of the Sprite according to the file that it is displaying. This is the default Height Units for Sprites.

Svgs also support using Maintain File Aspect Ratio Height. For more information on using Svgs see the page.

ColoredRectangle
Children Layout
Stack Spacing
Ignored By Parent Size
Sprites
Skia Standard Elements
ColoredRectangle
ColoredRectangle
Parent
Rectangle with an Absolute height of 50
Rectangle using a Relative to Parent height value of -10
Rectangle using a Percentage of Parent value of 100
Ratio of Parent Height Units
Ratio of Parent set to 1
Two stacked ColoredRectangles, each with a height ratio of 1
Stacked children with a Height Units of Ratio of Parent
Children shrink to make room for new ColoredRectangles
Red ColoredRectangle with a Height value of 3
ColoredRectangle with a Ratio of Parent Height of 0
Absolute ColoredRectangle with 80 Height
Adjusting Height changes all sibling heights
Toggling visibility removes an object from the height ratio calculation
Increasing Stack Spacing reduces the available ratio space for all children
Rectangle using Relative to Children Height of 50, resulting in an absolute height of 50 since it has no children
Moving children can adjust the absolute height of the parent if the parent is using a Height Units of Relative to Children
Height is relative to the bottom-most child when using Relative to Children
Moving BlueRectangle changes the height of both its parent and also YellowRectangle
Parent absolute height is 30 since the BlueRectangle explicitly has 20 of its height set outside of the parent's bounds
RedRectangle not affecting the absolute height of its parent since it is placed outside of the parent's bounds
Moving a child which uses Pixels From Bottom upward can make the parent grow to accommodate the child's Y value
Portions of the text are ignored when calculating heights
Y Units of Percentage of Parent Height results in the child ignored
The largest child determines the height of the cell when the parent uses Relative to Children height
Resizing or moving a child can result in all cells growing or shrinking
Auto Grid Horizontal with Height Units Relative To Children
Removed children do not shrink the container beyond its minimum number of rows
Container expanding as more children are added to the grid
Adding lines of text to a Text instance expands its height if its Height Units is set to Relative To Children
Texts with the same height despite having different string
Text which has an absolute height of 41 pixels
Font36Arial has a lineHeight of 41.
Rectangle using Percentage of Other Dimension Height of 200
Sprite using Percentage of File Height of 200
Changing a Sprite's Texture Height adjusts its absolute height when using Percentage of File Height
Changing the Width when using Maintain File Aspect Ratio Height also adjusts absolute height
Changing either Width or Texture Height affects the Sprite's absolute height
