  1. Gum Tool
  2. Tutorials and Examples
  3. Intro Tutorials

1 - The Basics

PreviousIntro TutorialsNext2 - Variables Tab

Last updated 4 months ago

Was this helpful?

Introduction

This page walks you through the basics of using the Gum UI tool, which we'll refer to simply as Gum for this and all other documentation.

Gum Elements

Gum separates its elements into three categories: Screens, Components, and Standard. Behaviors are an advanced topic that we'll skip for these tutorials.

Standard elements represent the building-blocks for screens and components, and all projects use the same set of standard elements. To see the list of elements, expand the Standard tree item. Clicking on any element displays it in the preview window.

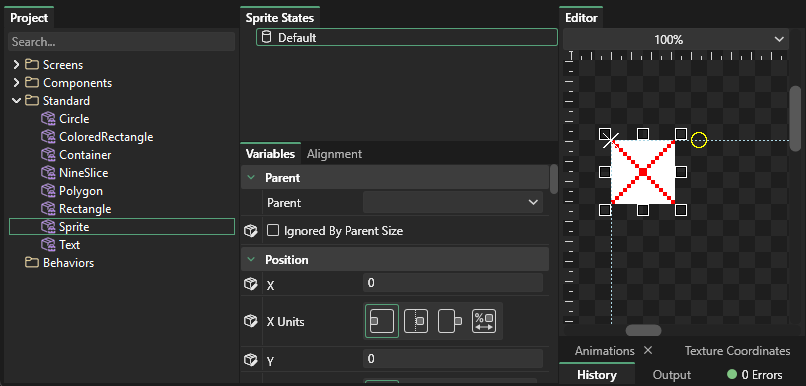

Sprite element is selected in the image above. Notice that since a SourceFile is not set, the Sprite renders as a red X.

Standard Types

Plugins can add additional standard elements. The list above is the default list of standard elements before plugins have made any changes.

Components

Components are objects which can contain standard elements and instances of other components. Components can be very simple, such as a Label, or very complex, such as an options menu with dozens of instances. Items added to components or screens are called instances.

Screens

Screens are objects which can contain standard elements and instances of other components. Unlike Components, Screens cannot be added to other Screens. Screens exist mainly for organization. Screens can be simple, such as a loading screen, or complex such as a HUD in an RTS game.

Components vs. Screens

Components and screens are similar - both can contain instances of standard elements, and both can contain other components. The only difference between screens and components is that screens cannot contain other screens.

For example you can think of screens in a video game which might include a main menu, credits screen, options screen, and level selection screen. You can think of components as elements which are composed of multiple standard elements. Examples include a Button component which is made up of a Sprite instance and a Text instance, or a Logo component which may be made up of multiple Sprites and Text objects.

Creating a Screen

To create a screen:

  1. Right-click on the Screens tree item and select Add Screen

  2. Enter the name of the new screen - such as MainMenu

  3. Click OK. The newly-created screen is created and selected

Adding instances

Instances of standard and component elements can be added to screens and components. To add an instance:

  1. Select the destination screen or component. For example, select the MainMenu screen

  2. Push the left mouse button (but don't release it) on the Text item. If you happen to release the mouse button, this selects the Text item, so you need to re-select the destination (MainMenu).

  3. Drag the Text item onto the Editor tab

  4. Release the mouse button. A new text instance appears in your screen.

Alternatively, you can also drag+drop a standard element into a screen in the tree view.

If an element is dropped in the Editor window, it appears at the location where it has been dropped - setting its X and Y values. If an element is dropped in the Project tab, then it preserves its default X and Y values.

Editing in the preview window

Once an instance is a part of a screen or component it can be edited visually in the preview window. The selected instance has eight (8) handles surrounding it. These are called the resize handles and can be used to change the selected instance's width and height.

In the case of the Text object, the resize handles are used to control how the text object performs line wrapping.

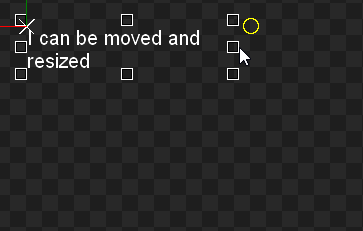

You can use the resize handles to resize the instance, or you can simply push the mouse button and drag inside the instance to change its position. Notice that an object's outline is displayed when the cursor is hovering over the instance.

Conclusion

This tutorial introduces the basics of working with standard elements and adding them to Screens. The next tutorial covers the Variables tab which can be used to access all element variables.

Circle - circle outline. These are usually not used for UI, but can be used if you are defining collision in your Gum objects for a game.

ColoredRectangle - filled-in rectangle. These are often used for solid-colored backgrounds and frames.

Container - invisible object used to contain other objects. These are used to provide margins, change layouts (such as vertical vs horizontal stacking), and to organize your UI.

NineSlice - visual object which uses nine sprites to create a resizable object from a source PNG (or portion of a PNG). The corner sprites (4) are not resized. The top, bottom, left, and right sprites are stretched on one axis. The middle sprite stretches both horizontally and vertically. These are used to create resizable frames.

Polygon - polygon outline which can have any number of points. These are usually not used for UI, but can be used if you are defining collision in your Gum objects for a game.

Rectangle - rectangle outline. These can be used for single-line frames or if you are defining collision in your Gum objects for a game.

Sprite - a visual object which displays a source PNG (or a portion of a PNG). These are used for icons, backgrounds, and other visual objects which are usually not resized dynamically.

Text - a visual object which can display characters. These are used for any situation where text needs to be displayed such as labels and paragraphs.

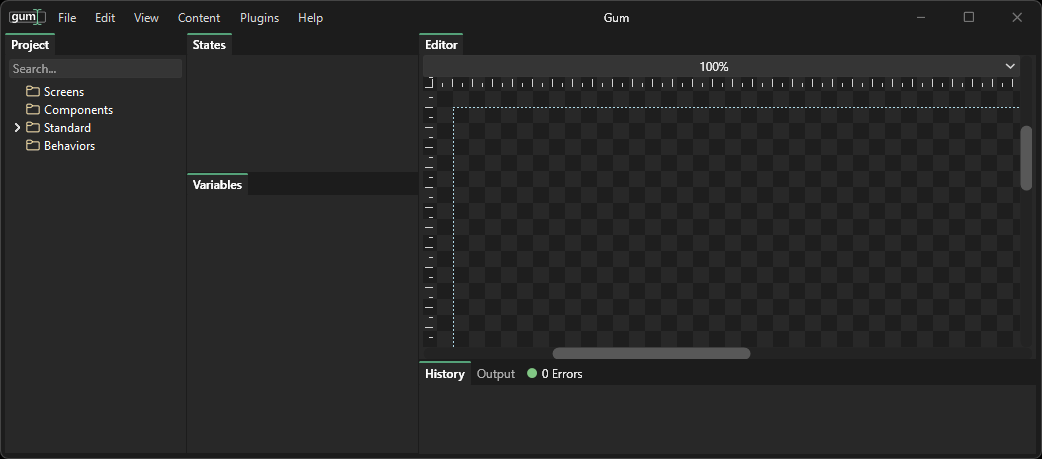

Empty Gum Project
Screens, Components, and Standard folders
A Sprite standard element with no source file set
Right-click, Add Screen option

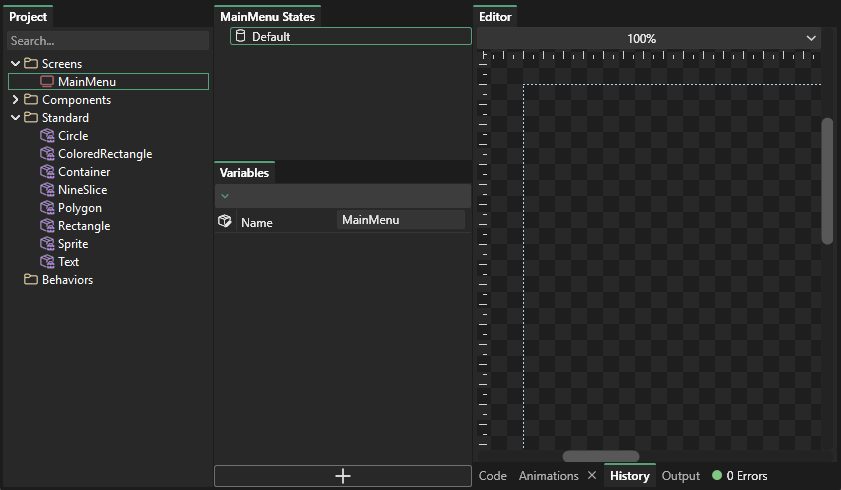

The MainMenu screen in Gum
Adding a Text instance to the MainMenu screen in the Editor tab
Adding a Text instance to the MainMenu screen in the Project tab
A selected Text instance with resize handles
Moving and resizing a Text object.
