Bottom-Up Stack

Bottom-up stacks can be used to display stacks of elements which should move up as more are added. This concept is similar to messages received in a chat window. Gum layout can be used to produce this type of stack.

This example shows a bottom-up stack (vertical) but the same approach could be used to create a right-aligned stack.

Items in a bottom-up stack need a parent Container. This Container could be an instance of a Container or a component since components usually have their Base Type set to Container. For this example we'll use a container.

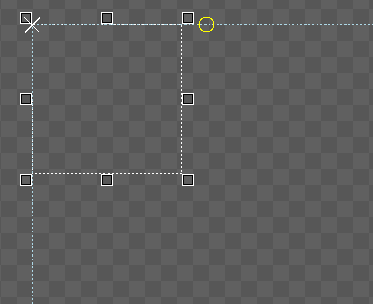

Container instance

This container to stack needs the following variables set:

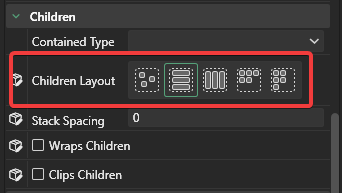

• Children Layout set to Top to Bottom Stack so all children stack vertically



  Children Layout set to Top to Bottom Stack

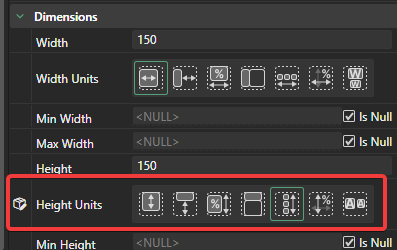

• Height Units set to Relative to Children so the container resizes itself as more children are added



  Height Units set to Relative to Children

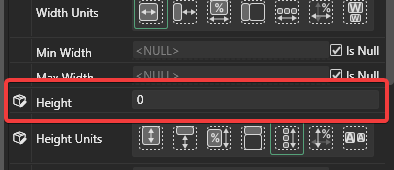

• Height set to 0 so the effective height of the container is based purely on its children



  Height set to 0

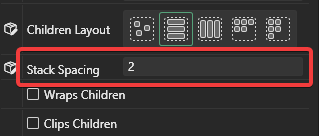

• Stack Spacing set to 2 (optional) to add spacing between each child



  Stack Spacing set to 2

Now children of the Container stack vertically. This concept works for any type of child, but we'll use ColoredRectangles for this example. Add a few instances to the Container and they stack vertically.

ColoredRectangle instances stacking vertically in a container

Finally we can have the stack grow up instead of down. To do this, change the following variables on the parent container:

• Y Origin set to Bottom



  Y Origin set to Bottom

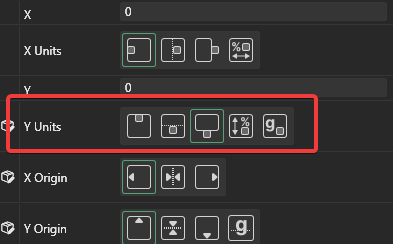

• Y Units set to Pixels from Bottom



  Y Units set to Pixels from Bottom

Now as new children are added, the parent stack grows and all items shift up.

Stack grows upward as more children are added
