FlatRedBall
  • 🖥️Downloading FlatRedBall
  • 🏗️Building FlatRedBall From Source
    • Linking Games to FlatRedBall Engine Source
    • Linking FNA
  • ❓Need Help?
  • ✨FlatRedBall Features
  • 🎓Tutorials
    • Introduction To FlatRedBall
    • Quick Start Guide
    • Beefball - A Full FlatRedBall Tutorial Project
      • Creating a FlatRedBall Project
      • Creating an Entity
      • Creating a Screen
      • Controlling an Entity
      • Creating the Screen Collision
      • Advanced PlayerBall Controls
      • Creating the Puck Entity
      • Adding Multiple Players
      • Scoring and Restarting Rounds
      • Scoring Hud
      • Scoring Hud Logic
      • Adding Dashing
    • Platformer Tutorials
      • Platformer Basics
        • Creating an Entity
        • Controlling a Platformer Entity
        • Movement Values
        • Double Jump
      • Checkpoint and Level End
      • Climbing Ladders
      • Doors
      • GroundCollidedAgainst and Movement Values
      • Moving Platforms
      • Multiple Players
      • NPC Dialog
      • Breaking Blocks
        • New Project Setup
        • Creating Level1 Map
        • Creating the Block Entity
        • Block Removal
      • Dealing Damage
        • New Project Setup
        • Enemy Entity
        • Shooting Bullets
        • Damaging the Enemy
      • Enemy Movement
        • New Project Setup
        • Enemy Entity
        • Enemy Input Logic
        • Detecting Platform Edges
      • Ground Type and Water Movement
        • New Project Setup
        • Creating Level1 Map
        • Adding Ice and Water
        • Platformer Movement Values
      • Animation and Platformer Values
        • New Project Setup
        • Creating AnimationLayers
        • Modifying Platformer Values
      • Wall Sliding and Jumping
    • Damage Dealing
      • Setup
      • Team Index
      • Damage Events
      • IDamageArea Removal
      • Melee Damage
    • Entity Variants Using Inheritance
    • FlatRedBall.Forms
      • Getting Started with FlatRedBall.Forms
        • Setup
        • Working with Common Controls
        • Forms vs Gum in Code
      • Forms and Xbox360GamePad
      • Data Binding (BindingContext)
        • BindingContext Property
        • Binding FlatRedBall.Forms
        • Parent and Children Binding using BindingContext
        • ListBox Templates
      • Styling Forms
      • Defining New Forms Types
        • Adding New Types to FlatRedBall.Forms Library
      • Accessing Forms Events in Gum Runtimes
    • Top Down Games
      • Top Down Basics
        • Setup
        • Input Device
        • CurrentMovement
      • Enemy Movement
        • Enemy Pathfinding
        • Direct Enemy Control
      • GroundVelocity
      • Animation
      • Sorting
    • Post Processing
    • Rock Blaster - A Full FlatRedBall Tutorial Project
      • Introduction
      • Setup
      • Game Skeleton
      • Player Entity
      • Player Behavior
      • Rock Entity
      • Collision
      • Rock States
      • HUD
      • Multiple Players
      • Health
      • Health Part 2
      • Destroying Entities
      • Cleaning Up
    • Code-Only Projects (No Editor)
      • Creating a FlatRedBall Project
      • Adding a Circle
      • Loading Textures and Using Sprites
    • Code Tutorials
      • 3D Camera Setup
      • Adding FlatRedBall to a MonoGame/FNA Project
      • Adding WPF to an Existing Game
      • async and await
      • CLR Profiler
      • Collision Jitter
      • Culling
      • Customizing Cursor Visuals
        • Windows Desktop
        • windows-rt
      • Depth Buffer Z Fighting
      • Dictionaries and Enum Keys
      • FlatRedBall XNA in Windows Form
      • Improving Performance
        • CustomActivity Performance
        • Identifying Screen Creation Performance Issues
        • Rendering Performance
        • Manually Updated Objects
          • Introduction
          • Measuring Automatic Updates
          • Measuring Sprite Automatic Updates
          • Manual Particle Systems
      • Object Sorting
      • Pix
      • Rendering Sprites with Shaders
      • Tile-Based Movement
      • Velocity
    • Distribution
      • App Icon
      • Emptying bin Folder Using Probing Path
      • itch.io
      • Release Build
      • Steam
    • FlatRedBall and Velcro Physics
      • Using Velcro Physics with the FlatRedBall Editor
      • Code-Only Velcro Projects
    • FlatRedBall Editor Plugins
      • Introduction to FlatRedBall Plugins
      • Creating a Plugin Project
      • Creating a Plugin Class
      • Adding UI to FlatRedBall
      • Using MVVM
      • Creating a NamedObjectSave-Editing Plugin
      • Adding File Format Support
      • Adding Code Files to a Game Project
      • Errors
      • Exporting a Plugin
    • Additional FlatRedBall Editor Tutorials
      • How to Create a First Person Camera
      • How to Play Sounds
      • How to Share Reference Data Between Screens and Entities
    • Math Tutorials
      • Circle Collision
      • Determining required magnitude for trajectory
      • Introduction to Collision
      • Power of Two
      • Rectangle Collision
      • rotation
      • statistics
      • trigonometry
      • vector
      • matrix
      • interpolation
    • Overworld Tutorials
      • Spinning Mode 7
        • New Project Setup
        • Adding Camera Code
        • Fading In and Out
  • 🎞️Videos
  • 📐FlatRedBall Editor
    • Display Settings
    • Entities
      • BaseEntity
      • Constructor
      • ConvertToManuallyUpdated
      • CreatedByOtherEntities
      • CustomActivity
      • CustomDestroy
      • CustomInitialize
      • Destroying Entities
      • Entity Performance
      • Export Entity
      • Implements IClickable
      • Implements ICollidable
      • Implements IDamageArea
      • Implements IDrawableBatch
      • Implements IGumCollidable
      • Implements IVisible
      • Implements IWindow
        • SlideOnClick
      • Import Entity
      • Inheriting from FlatRedBall Types
      • LayerProvidedByContainer
      • MoveToLayer
      • PooledByFactory
      • Top Down Movement
        • TopDownSpeedMultiplier
      • Use Global Content
    • Events
      • ResolutionRrOrientationChanged
    • Factories
      • CreateNew
      • EntitySpawned
      • Initialize
      • SortAxis
    • Files
      • File Types
        • Animation Chain List (.achx)
        • Comma Separated Values (.csv)
          • Combining .csvs With Entities
          • CreatesDictionary
          • Cross Referencing CSVs
          • Instantiating Custom Types
          • OrderedList
          • SetCreatedClass
            • generate-data-class
          • uniformrowtype
        • Effect (.fx, .fxb)
        • Font (.fnt)
        • JSON (.json)
        • Model (.fbx)
        • MP3
        • Node Network (.nntx)
        • OpenDocument Spreadsheet (.ods)
        • ShapeCollections (.shcx)
        • SplineList (.splx)
        • Texture2D (.png)
        • Wave (.wav)
      • Accessing Files in Code
      • Adding File Objects to Managers
      • Destroy on Unload
      • File Build Tool
      • Folders
      • Global Content Files
      • IsDatabaseForLocalizing
      • IsManuallyUpdated
      • IncludeDirectoryRelativeToContainer
      • LoadedAtRuntime
      • LoadedOnlyWhenReferenced
      • Name
      • Platform Inclusions
      • Project Specific Files
      • RuntimeType
      • SourceFile
      • UseContentPipeline
      • Wildcard Files
    • FileVersion (.gluj)
    • Generated Code
    • Global Content Files
      • LoadAsynchronously
      • Reload
      • Setting Files At Runtime
    • Live Edit
      • Render Targets
    • Menu
      • Content
        • Additional Content
          • Using Runtime Types as Objects
          • creating-runtime-objects
          • runtime-object-charateristics
          • simple-line-of-text-tutorial
        • Introduction
        • pipeline-settings
      • File
        • New Project
      • Edit
        • Find File References
      • Plugins
        • Install Plugin
        • Manage Plugins
      • Project
        • View Projects
      • Settings
        • Camera Settings
        • File Associations
        • File Build Tools
        • Performance Settings
      • Update
        • Introduction
        • glue-reference-menu-frbdk
        • glue-reference-menu-libraries
    • Multi-Platform
      • Synced Projects
      • Changing Main Project Type
      • Android
        • Distribution
        • Setup
      • iOS
        • Certificates and Profiles
        • Copying Projects to Mac
        • Using Xamarin Build Host
      • Switch (Nintendo)
      • Web
    • Objects
      • Object Types
        • AxisAlignedRectangle
        • Camera
        • CameraControllingEntity
        • Circle
        • CollisionRelationship
        • Layer
          • DestinationRectangle
          • Is2D
        • Polygon
        • PositionedObjectList
        • RenderTarget2D
        • ShapeCollection
        • SoundEffectInstance
        • Sprite
        • Text
        • TileNodeNetwork
      • AddToManagers
      • AttachToCamera
      • AttachToContainer
      • CallActivity
      • Collidable Objects
      • EntireFile
      • ExposedInDerived
      • HasPublicProperty
      • IgnoresPausing
      • IncludeInIClickable
      • IncludeInICollidable
      • IsContainer
      • LayerOn
      • Map
      • SetByDerived
      • SourceFile
      • SourceType
    • Plugins
      • glue-gluevault-component-pages-rendertargetrenderer
      • glue-gluevault-component-pages-simple-command-console
      • glue-gluevault-component-pages-squid-gui-integration
      • kalldrexx-interactive-debugging-console
    • Profiling
    • Screens
      • AsyncLoadingState
      • BaseScreen
      • Constructor
      • Creating a New Screen
      • CustomDestroy
      • CustomInitialize
      • DefaultLayer
      • GameScreen
      • IsActivityFinished
      • IsLoadingScreen
      • LoadStaticContent
      • MoveToScreen
      • PauseAdjustedCurrentTime
      • Set as StartUp Screen
      • UnloadsContentManagerWhenDestroyed
    • States
      • InterpolateToState
      • InterpolateToState vs InterpolateBetween
      • State Categories
      • State Classes
      • States and Inheritance
      • Tunneling Category Variables
    • Variables
      • CreatesEvent
      • HasAccompanyingVelocityProperty
      • IsShared
      • Proper Variable Naming
      • SetByDerived
      • Type
      • Variable Order
    • Visual Studio Project (.csproj)
  • 🏃Animation Editor
    • Frame Time
    • Animation Shapes and Collision
  • Tiled
    • Tiled Basics
      • Introduction
      • Creating a GameScreen
      • Adding Collision
      • Colliding Entities Against TileShapeCollections
      • Working with Multiple Levels
      • Creating Entities from Tiles
      • Creating Entities from Object Layers
      • Accessing Tiled Properties
      • Working with Tiled Shapes
    • Tiled Files in Entities
    • TileEntityInstantiator
    • Using TiledObjects.Generated.xml
    • LayeredTileMap
      • Collisions
      • Destroy
      • FromTiledMapSave
      • Z
    • MapDrawableBatch
      • AddTile
      • CoordinateAdjustment
      • GetBottomLeftWorldCoordinateForOrderedTile
      • MergeOntoThis
      • NamedTileOrderedIndexes
      • PaintTile
      • PaintTileTextureCoordinates
      • ParallaxX
      • Paste
      • Properties
      • RemoveQuads
      • RenderingScale
      • SortAxis
    • TiledMapSave
    • TileShapeCollection
      • AddCollisionAtWorld
      • AddCollisionFrom
      • AddCollisionFromTilesWithProperty
      • AddMergedCollisionFromLayer
      • AddMergedCollisionFromTilesWithProperty
      • AdjustRepositionDirectionsOnAddAndRemove
      • CollideAgainst
      • CollideAgainstClosest
      • GetRectangleAtPosition
      • InsertCollidables
      • LastCollisionAxisAlignedRectangles
      • Rectangles
      • RemoveFromManagers
      • RemoveSurroundedCollision
  • 🟩Gum
    • Tutorials
      • Introduction and Setup
      • Screens in Gum
      • Gum Objects in Code
      • Events on Gum Objects
      • Events on Gum Objects Part 2
      • Exposed Variables
      • States
      • Adding Code to Gum Objects
    • Accessing Gum Screens in Code
    • Adding Components to Layers
    • Adding Gum Screens to FlatRedBall
    • Animations in Code
    • Components in FlatRedBall Entities
    • Converting Gum Coordinates
    • Creating Components in Code
    • GraphicalUiElement as IWindow
    • Gum Resolution
    • Gum Properties Tab
    • Gum Animations
      • How to Play Gum Screen Animations
      • Named Events
      • Setting Gum Animationchain Achx in Code
  • 🦴Spine
    • Setup
    • Atlas
    • Changing Spine Textures at Runtime
    • SpineDrawableBatch
      • Event
      • PlayAnimation
      • SetCollision
      • Skeleton
  • ⏸️Aseprite
    • AnimationChainList
  • 🏫API Documentation
    • FlatRedBall Engine
      • AI
        • LineOfSight
          • VisibilityGrid
        • Pathfinding
          • PositionedNode
          • Link
            • Cost
            • NodeLinkingTo
          • NodeNetwork
            • GetPath
            • UpdateShapes
            • Visible
          • TileNodeNetwork
            • AddAndLinkTiledNode
            • AddAndLinkTiledNodeWorld
            • OccupyTileWorld
            • SetCosts
      • Audio
        • AudioManager
          • AreSoundEffectsEnabled
          • CurrentlyPlayingSong
          • MasterSongVolume
          • MasterSoundVolume
          • Play
          • PlaySong
          • PlaySongs
          • StopSong
        • PositionedSound
        • Sound
      • Camera
        • AbsoluteRightXEdge
        • AbsoluteRightXEdgeAt
        • AddLayer
        • AddSpriteToBillboard
        • AspectRatio
        • AttachTo
        • BackgroundColor
        • CameraCullMode
        • ClearMinimumsAndMaximums
        • ClearsDepthBuffer
        • DestinationRectangle
        • DrawsShapes
        • DrawsToScreen
        • DrawsWorld
        • FarClipPlane
        • FieldOfView
        • FixAspectRatioYConstant
        • ForceUpdateDependencies
        • GetViewport
        • IsSpriteInView
        • KeepSpriteInScreen
        • Layer
        • Layers
        • Main
        • MaximumX
        • Orthogonal
        • OrthogonalHeight
        • OrthogonalWidth
        • PixelsPerUnitAt
        • Position
        • PositionRandomlyInView
        • RelativeXEdgeAt
        • RemoveLayer
        • RotationMatrix
        • SetBordersAtZ
        • SetLookAtRotationMatrix
        • SetSplitScreenViewport
        • UpdateViewProjectionMatrix
        • UpVector
        • UsePixelCoordinates
        • UsePixelCoordinates3D
        • View
      • Content
        • ContentLoadBatch
        • AnimationChain
          • AnimationChainListSave
        • ContentManager
          • AddUnloadMethod
          • FileAliases
          • IsAssetLoadedByName
          • Load
          • LoadFromGlobalIfExists
          • Multiple Content Managers
        • Math
          • Geometry
            • ShapeCollectionSave
        • Polygon
          • PolygonSave
        • Scene
          • CameraSave
          • SceneSave
        • SpriteEditorScene
          • Camera
      • Debugging
        • Debugger
          • CommandLineWrite
          • GetFullPerformanceInformation
          • TextBlue
          • WriteAutomaticallyUpdatedObjectInformation
      • Entities
        • CameraControllingEntity
        • IDamageable
        • IDamageArea
      • FlatRedBallServices
        • AddDisposable
        • AddManager
        • CornerGrabbingResize
        • Draw
        • ForceClientSizeUpdates
        • Game
        • GetManagerInformation
        • GlobalContentManager
        • GraphicsOptions
        • Initialize
        • IsLoaded
        • Load
        • Owner
        • Random
        • RenderAll
        • Unload
        • Update
        • WindowHandle
      • Graphics
        • Animation
          • AnimationChain
            • Clone
            • FrameToFrame
            • TotalLength
          • AnimationChainList
          • AnimationController
          • AnimationFrame
            • RelativeX
            • ShapeCollectionSave
            • Texture
          • IAnimationChainAnimatable
            • Animate
            • Animation and Timing
            • AnimationChains
            • AnimationSpeed
            • CurrentChainName
            • CurrentFrameIndex
            • JustChangedFrame
            • JustCycled
            • UseAnimationRelativePosition
        • BitmapFont
          • BMFC File
          • BitmapCharacterInfo
          • FNT File
          • Glyphs
          • LineHeightInPixels
          • RenderToTexture2D
        • BlendOperation
        • ColorOperation
          • Add
          • Color
          • ColorTextureAlpha
          • InterpolateColor
          • Modulate
          • Texture
        • GraphicsOptions
          • Filtering
          • IsFullScreen
          • ResolutionHeight
          • SetFullScreen
          • SetResolution
          • SizeOrOrientationChanged
          • TextureFilter
          • TextureLoadingColorKey
          • UseMultisampling
        • IColorable
          • Alpha
          • BlendOperation
          • Blue
          • ColorOperation
        • IDrawableBatch
          • Z
          • RenderState
        • IVisible
          • IgnoresParentVisibility
        • Layer
          • Layer Membership Details
          • LayerCameraSettings
          • Remove
          • RenderTarget
          • SortType
          • Sprites
          • UsePixelCoordinates
        • LayerCameraSettings
          • OrthogonalWidth
          • TopDestination
        • Particle
          • EmissionSettings
            • Drag
            • PixelSize
            • ScaleX
          • Emitter
        • PostProcessing
          • SwapChain
        • RenderBreak
        • Renderer
          • Draw
          • LastFrameRenderBreakList
          • RenderBreaksAllocatedThisFrame
        • Text
          • AdjustPositionForPixelPerfectDrawing
          • ColorOperation
          • DisplayText
          • GetWidth
          • Font
          • HorizontalAlignment
          • InsertNewLines
          • MaxWidth
          • MaxWidthBehavior
          • NewLineDistance
          • NumberOfLines
          • ScaleX
          • SetColor
          • SetPixelPerfectScale
          • VerticalAlignment
          • Width
        • TextManager
          • AddManuallyUpdated
          • AddText
          • AddToLayer
          • FilterTexts
          • RemoveText
        • Texture
          • RenderTargetSprite
          • ImageData
            • ApplyColorOperation
            • Fill
            • FromTexture2D
      • Gui
        • Cursor
          • Camera
          • ClickNoSlideThreshold
          • CustomUpdate
          • GetRay
          • IngnoreInputThisFrame
          • IsInWindow
          • IsOn
          • IsOn3d
          • PrimaryClick
          • PrimaryClickNoSlide
          • PrimaryPushTime
          • ScreenX
          • SecondaryClick
          • SetControllingGamepad
          • SetJoystickControl
          • TransformationMatrix
          • WindowOver
          • WidowPushed
          • WorldPosition
          • WorldX
          • WorldXAt
          • WorldYAt
          • XForUi
        • GuiManager
          • AddDominantWindow
          • BringsClickedWindowsToFront
          • BringToFront
          • GamepadsForUiControl
          • MakeRegularWindow
          • RemoveWindow
          • SortZAndLayerBased
          • Windows
        • IClickable
        • IInputReceiver
          • IWindow
            • CallClick
            • Enabled
          • ReceiveInput
      • Input
        • AnalogButton
        • AnalogStick
          • IsMaxPositionNormalized
        • DelegateBased1DInput
        • DelegateBased2DInput
        • DelegateBasedPressableInput
        • I1DInput
        • I2DInput
        • IMouseOver
        • InputDeviceBase
        • InputManager
          • ClearAllInput
          • InputReceiver
        • IPressableInput
        • Keyboard
          • Clear
          • ControlPositionedObject
          • Get2DInput
          • GetKey
          • GetStringTyped
          • IgnoreKeyForOneFrame
          • KeyDown
          • KeyPushed
        • Mouse
          • GrabbedPositionedObject
          • IsOn3D
          • ModifyMouseState
          • Restricting Mouse to Screen Bounds
          • SetScreenPosition
        • TouchScreen
          • LastFrameGestures
          • ReadsGestures
        • Windows
          • WindowsInputEventManager
        • Xbox360GamePad
          • ButtonDown
          • ButtonMap
          • ButtonPosition vs Button
          • ButtonPushed
          • ControlPositionedObject
          • CreateDefaultButtonMap
          • Deadzone
          • DeadzoneType
          • FakeIsConnected
          • GamepadLayout
          • IgnoreButtonForOneFrame
      • Instructions
        • DelegateInstruction
        • IInstructable
          • Call
          • Cnstructions
          • Set
        • Instruction
        • InstructionList
          • ExecuteAndRemoveOrCyclePassedInstructions
        • InstructionManager
          • Add
          • AddSafe
          • Instructions
          • MoveThrough
          • MoveTo
          • MoveToAccurate
          • ObjectsIgnoringPausing
          • PauseEngine
          • Pulse
          • RotateToAccurate
        • Reflection
          • LateBinder
          • PropertyCollection
        • MethodInstruction
        • StaticMethodInstruction
      • IO
        • Csv
          • CsvHeader
          • CsvFilemanager
            • Cells with Multiple Lines
            • Color
            • CsvDeserializelist
            • Rows with Lists
          • RuntimeCsvRepresentation
            • FromList
            • GenerateCsvString
        • FileManager
          • BinarySerialize
          • CloneObject
          • FromFileText
          • GetAllFilesInDirectory
          • GetUserFolder
          • InitializeUserFolder
          • RelativeDirectory
          • SaveEmbeddedResource
          • SaveText
          • Standardize
          • UserApplicationDataForThisApplication
          • XmlDeserialize
          • XmlSerialize
      • Localization
        • LocalizationManager
      • Managers
        • IManager
      • Math
        • IAttachableRemovable
        • AttachableList
          • FindByName
          • MakeOneWay
        • Collision
          • CollisionManager
            • Relationships
            • Update
        • Geometry
          • AxisAlignedCube
            • CollideAgainstBounce
          • AxisAlignedRectangle
            • Axis Alignment And Rotation
            • CollideAgainstMoveSoft
            • Color
            • GetRandomPositionInThis
            • KeepThisInsideOf
            • LastMoveCollisionReposition
            • Left
            • RepositionDirections
          • Capsule2D
          • Circle
            • CollideAgainst
            • CollideAgainstBounce
            • CollideAgainstMove
            • IsPointInside
            • LastCollisionTangent
            • LastMoveCollisionReposition
            • ProjectParentVelocityOnLastMoveCollisionTangent
            • Visible
            • Z
          • Colliding a List of Shapes Against Itself
          • FloatRectangle
          • ICollidable
          • IScalable
            • Scale
          • Line
            • Color
            • LastCollisionPoint
            • RelativePoint1
            • SetFromAbsoluteEndpoints
          • Point
          • Polygon
            • AbsolutePointPosition
            • Clone
            • CollideAgainstBounce
            • CollideAgainstMove and Attachments
            • CollideAgainstMove
            • Color
            • CreateEquilateral
            • CreateRectangle
            • ForceUpdateDependencies
            • IsPointInside
            • LastMoveCollisionReposition
            • OptimizeRadius
            • Points
            • Position
            • ProjectParentVelocityOnLastMoveCollisionTangent
            • ScaleBy
            • Thin Polygon Problem
            • VectorFrom
            • Visible
            • Z
          • Segment
            • ClosestPointTo
          • Shape
          • ShapeCollection
            • AttachTo
            • AxisAlignedRectangles
            • CollideAgainst
            • CollideAgainstBounceWithoutSnag
            • CollideAgainstMove
            • CollideAgainstMoveWithoutSnag
            • LastCollisionAxisAlignedRectangles
            • SortAscending
            • Visible
          • ShapeManager
            • AddToLayer
            • Remove
            • ShapeDrawingOrder
          • ShapeMerger
          • Shapes and 2D Collision
          • Sphere
        • IAttachable
          • Attachment Updates in the Engine
          • Detach
          • ParentRotationChangesPosition
          • ParentRotationChangesRotation
          • TopParent
        • IRotatable
          • RotationMatrix
        • MathFunctions
          • AbsoluteToWindow
          • AngleToAngle
          • AngleToVector
          • GetPointInCircle
          • GetPositionAfterTime
          • RegulatAngle
          • RotatePointAroundPoint
          • RoundFloat
          • RoundToInt
          • WidowToAbsolute
        • Paths
          • Path
        • PositionedObjectList
          • Add
          • AttachTo
          • Clear
          • GetFirstAfter
          • GetFirstAfterPosition
          • SortXInsertionAscending
        • Splines
          • Spline
            • GetPositionAtLengthAlongSpline
      • Performance
        • Measurement
          • Section
            • GetAndStartContextAndTime
            • Save
            • ToStringVerbose
      • PositionedObject
        • Acceleration
        • AttachTo
        • Children
        • Clone
        • Drag
        • ForceUpdatedependencies
        • ForceUpdatedependenciesDeep
        • Initialize
        • KeepTrackOfReal
        • LastPosition
        • Mirrored properties
        • ParentRotationChangesPosition
        • ParentRotationChangesRotation
        • Position
        • RelativePosition
        • RelativeRotationZ
        • RelativeVelocity
        • RemoveSelfFromListsBelongingTo
        • RotationZ
        • SetRelativeFromAbsolute
        • TimedActivity
        • TopParent
        • UpdateDependencies
        • Velocity
        • Z
      • Screens
        • Screen
          • ContentManagerName
          • CustomDestroy
          • IsActivityFinished
          • MoveToScreen
          • PauseThisScreen
        • ScreenManager
          • Activity
          • CurrentScreen
          • Start
      • Sprite
        • Alpha
        • AnimateSelf
        • AnimationChains
        • AnimationSpeed
        • Bottom
        • BottomTextureCoordinate
        • Changing a Sprite's Origin
        • ColorOperation
        • CurrentChainName
        • CurrentFrameIndex
        • IgnoreAnimationChainTextureFlip
        • Inheriting from the Sprite Class
        • JustCycled
        • LeftTextureCoordinate
        • PixelSize
        • Position
        • RightTextureCoordinate
        • SetAnimationChain
        • SetScaleXRatioToY
        • Sorting and Overlapping
        • Sprite vs Texture2d
        • Texture Coordinates
        • Texture
        • TextureAddressMode
        • TextureCoordinate
        • TextureFilter
        • TextureScale
        • TimeIntoAnimation
        • TopTextureCoordinate
        • UseAnimationRelativePosition
        • Vertices
        • VerticesForDrawing
        • Visible
      • SpriteList
      • SpriteManager
        • AddDrawableBatch
        • AddManagedInvisibleSprite
        • AddManualSprite
        • AddParticleSprite
        • AddPositionedObject
        • AddSprite
        • AddToLayer
        • AddZBufferedDrawableBatch
        • AddZBufferedSprite
        • AutomaticallyUpdatedSprites
        • Camera
        • ConvertToAutomaticallyUpdated
        • ConvertToManagedInvisible
        • ConvertToManuallyUpdated
        • ConvertToZBufferedSprite
        • DrawableBatches
        • ManagedPositionedObjects
        • ManualUpdate
        • MaxParticleCount
        • MoveToBack
        • OrderedSortType
          • Z
        • OrderedSprites
        • RemoveDrawableBatch
        • RemoveLayer
        • RemovePositionedObject
        • RemoveSprite
        • RemoveSpriteOneWay
        • SortTexturesSecondary
        • SortYSpritesSecondary
        • UnderAllDrawnLayer
      • TimeManager
        • Accumulating Time
        • CurrentScreenSecondsSince
        • CurrentTime
        • Profiling
        • SecondDifference
        • SecondsSince
        • SumTimeSection
        • SystemCurrentTime
        • TimeFactor
        • Working with TimeSpan
      • Utilities
        • StringFunctions
    • FlatRedBall.Forms
      • Controls
        • Button
        • CheckBox
        • ComboBox
        • FrameworkElement
          • DefaultFormsComponents
          • HandleTab
          • Show
          • Visual
        • Games
          • DialogBox
          • OnScreenKeyboard
          • SettingsView
        • ListBox
        • ListBoxItem
        • RadioButton
        • ScrollBar
        • ScrollViewer
        • Slider
        • StackPanel
        • TextBox
        • TreeView
        • TreeViewItem
      • MVVM
        • DependsOnAttribute
    • FlatRedBall Editor Plugin
      • customvariable
      • Introduction
      • flatredball-glue-elements-objectfinder
      • flatredball-glue-guidisplay-propertygriddisplayer
      • Introduction
      • flatredball-glue-projectmanager
      • Introduction
      • flatredball-glue-saveclasses-namedobjectsave
      • flatredball-glue-saveclasses-referencedfilesave
      • flatredball-glue
        • plugins
          • flatredball-glue-exportedinterfaces-igluestate
          • flatredball-glue-exportedinterfaces-igluxcommands-addreferencedfiletoglobalcontent
          • flatredball-glue-exportedinterfaces-igluxcommands
          • Introduction
          • flatredball-glue-exportedinterfaces-iprojectcommands-makeabsolute
          • flatredball-glue-exportedinterfaces-iprojectcommands
          • flatredball-glue-interfaces-icodegeneratorplugin
          • flatredball-glue-interfaces-imenustripplugin
          • Introduction
          • flatredball-glue-pluginbase-getfilesreferencedby
          • flatredball-glue-pluginbase
          • Introduction
        • vshelpers
          • codebuilditemadder
    • FlatRedBall Editor (Glue)
      • AssetTypeInfo
      • Cleaning Up Screens
      • CodeGeneration
        • ICodeBlock
      • CustomActivity
      • CustomLoadStaticContent
      • Entity
        • Introduction
        • glue-reference-entities-destroy
      • Game1CodeGenerator
      • GetFile
      • PauseThisScreen
      • SaveClasses
        • GlueSettingsSave
      • Screen
        • glue-reference-screens-pauseadjustedsecondssince
    • Live Edit
      • EditorVisuals
        • Circle
        • Text
      • Instance Creation
    • Gum Runtime
      • GraphicalUiElement
        • GetAbsoluteLeft
        • GetGraphicalUiElementByName
        • HasCursorover
        • InterpolateBetween
        • InterpolateTo
        • MoveToFrbLayer
        • RaiseChildrenEventsOutsideOfBounds
        • SetProperty
        • ShowLineRectangles
        • TestCollision
      • RenderingLibrary
        • camera
        • ipositionedsizedobject
        • graphics
          • Layer
          • text
            • textrenderingmode
    • iOS
      • uikit-uiviewcontroller
    • Microsoft.Xna.Framework
      • Audio
        • SoundEffect
        • SoundEffectInstance
      • Color
      • Introduction
      • Game
        • IsActive
        • IsFixedTimeStep
        • IsMouseVisible
        • TargetElapsedTime
      • GameWindow
        • Introduction
        • Introduction
        • handle
      • Graphics
        • Shared Parameters
        • model
        • spritebatch
        • GraphicsDevice
          • renderstate
          • SetRenderTarget
        • renderstate
          • referencealpha
        • Texture2D
          • Creating New Textures Programatically
      • GraphicsDeviceManager
        • supportedorientations
      • Media
        • MediaPlayer
        • Song
          • FromUri
      • Vector3
    • NAudio
      • NAudio_Song
    • SkiaGum
      • SkiaSpriteCanvas
      • Renderables
        • RenderableSkiaObject
    • State Interpolation
      • Tween
      • Tweener
      • TweenerManager
  • 🏘️Contributing
    • How to Contribute
    • Builds (Releases)
      • Gum
    • Writing Documentation
    • Contributing Code (Pull Requests)
    • Automated Test Project
    • Programming Style Guide
  • 🎮FlatRedBall Games
    • angry-boy
    • avatar-skate
    • avatar-word-wave
    • bobble-biker
    • box-the-gopher
    • cargo-crush
    • combo-red-moon-rising
    • cubism
    • eat-my-shuriken-and-die
    • elemento
    • food-battler
    • free-towels
    • gravi-dot
    • hyperdodge
    • juice-factory
    • operation-sd-space-defense
    • picture-puzzle-revolution
    • prismatic
    • quarantine
    • quest-for-freshness
    • star-stepper
    • steambirds
    • sticky-bump
    • tile-trip
    • trashman
    • tumble-heads
    • udder-chaos
    • without-escape
    • games-oniro
  • 🔴FlatRedBall Logo
  • Installing XNA in Visual Studio 2017
Powered by GitBook
On this page
  • Introduction
  • What is a CollisionRelationship?
  • What Types of Objects Can be Used in CollisionRelationships?
  • Creating a CollisionRelationship
  • Editing a CollisionRelationship in FlatRedBall
  • Collision Physics
  • Collision Events
  • Manual Collision Relationships

Was this helpful?

Edit on GitHub
Export as PDF
  1. FlatRedBall Editor
  2. Objects
  3. Object Types

CollisionRelationship

PreviousCircleNextLayer

Last updated 1 month ago

Was this helpful?

Introduction

The FRB Editor supports the creation and management of CollisionRelationship objects. This document covers the features provided by the FRB Editor, and explains common scenarios where you may need to interact with the CollisionsRelationships in code. Most cases can be handled by CollisionRelationships in the FRB Editor; however, more advanced situations can be handled in code. For information about creating and working with CollisionRelationships in code, see the .

What is a CollisionRelationship?

CollisionRelationships define how to respond when two types of objects collide (overlap). Examples of reactions to overlapping objects include:

  • A player must take damage when colliding with a bullet

  • A bullet must be destroyed when colliding with a wall

  • An enemy must be moved so that it doesn't overlap the same space as another enemy

  • A car must reduce its maximum speed when driving over grass

Even simple games will require multiple relationships, and larger games may include dozens of relationships. Glue makes the creation and management of these much simpler than management purely in code.

What Types of Objects Can be Used in CollisionRelationships?

Collision relationships can be created between:

  • Lists of entities which implement ICollidable

  • Individual Entity instances which implement ICollidable

  • TileShapeCollections

  • ShapeCollections (regular, as opposed to TileShapeCollections)

Creating a CollisionRelationship

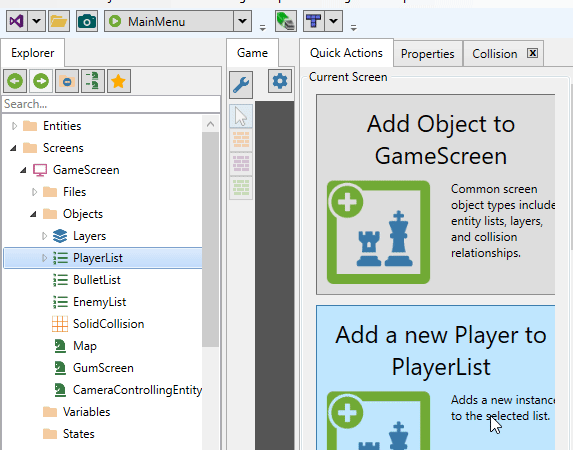

CollisionRelationships can be created a few ways. Typically collision relationships are added to a screen, such as a base GameScreen. In this example we will use a screen called GameScreen which already has a few objects:

  • PlayerList (a list of Player entities)

  • BulletList (a list of Bullet entities)

  • EnemyList (a list of Enemy entities)

  • SolidCollision (a TileShapeCollection)

Option 1 - Drag+drop

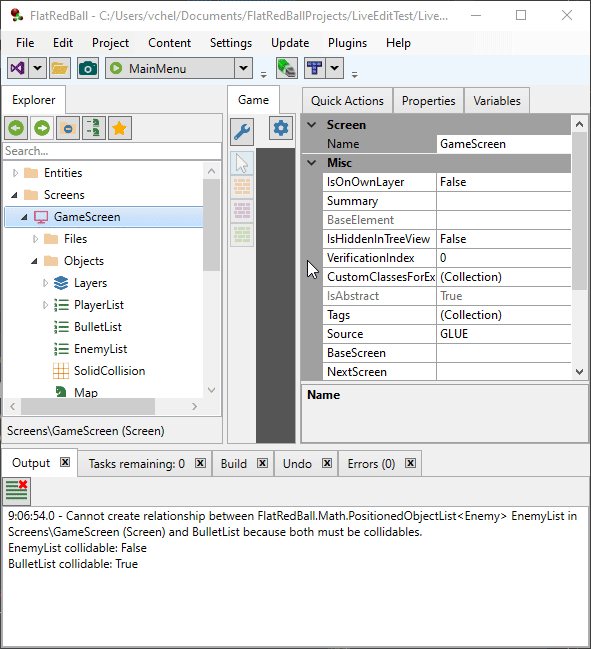

You can drag+drop one collidable object (such as a list) onto another collidable object (such as another list or a TileShapeCollection) so long as the two objects are in the same screen. This will create a CollisionRelationship between the two objects.

Option 2 - Collision Tab

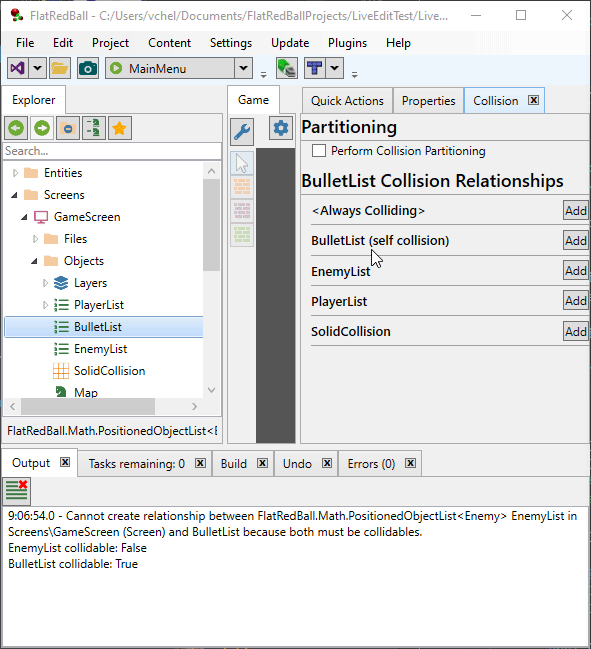

The Collision tab displays when a collidable object or list is selected

The image above displays the Collision tab for the BulletList. Notice that the BulletList can collide with any of the other collidable objects in the GameScreen including itself. Adding collision is easy - just click the Add button next to the object in the Collision tab to create a new relationship. For example, clicking on the Add button next to EnemyList creates a relationship between BulletList and EnemyList.

Option 3 - Create CollisionRelationship Object Manually

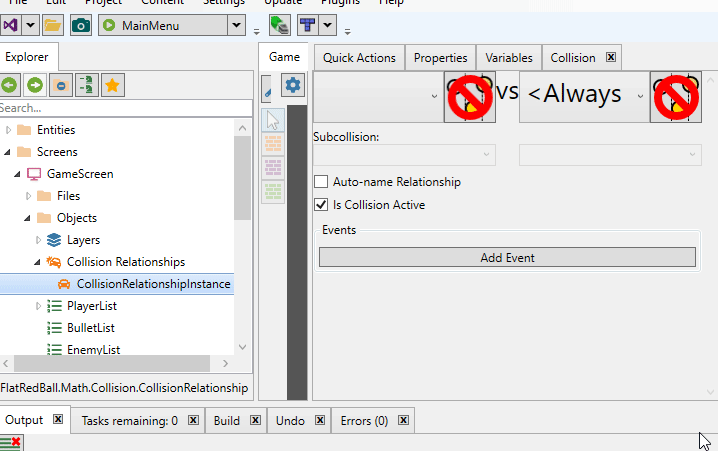

CollisionRelationships are regular Objects which can be created through the right-click menu. To create a CollisionRelationship through the right-click menu:

  1. Right-click on a Screen's Objects

  2. Select Add Object

  3. Verify FlatRedBall or Custom Type is selected

  4. Select the CollisionRelationship type

  5. Click OK

In this case the newly-created CollisionRelationship will not yet reference any collidable objects in the screen, and the game will not compile until the objects in the relationship are set (as shown in the next section).

Editing a CollisionRelationship in FlatRedBall

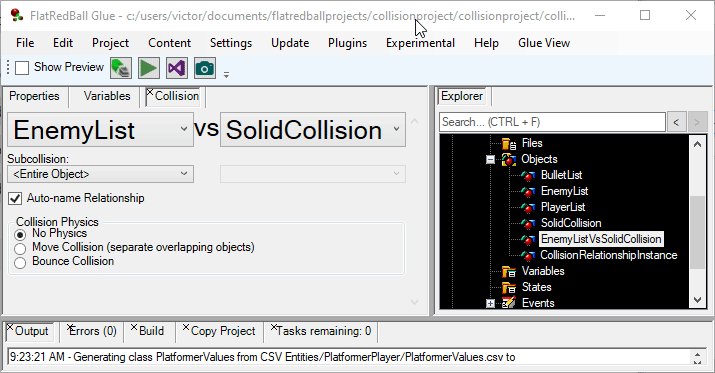

Once a CollisionRelationship is created, it can be edited by selecting it under the Screen's Objects folder and clicking the Collision tab.

A CollisionRelationship objects can be changed using the two drop-downs. Note that if the Auto-name Relationship checkbox is checked, the name of the relationship will automatically change when either of the two objects in the relationship changes. Of course, if you create CollisionRelationships using either the Add button or the drag-drop method, you do not need to set the object types.

Subcollision

Subcollision allows specifying a specific shape within a collidable entity to use when performing collision. This is useful if an entity includes multiple shapes, each for different purposes. For example, an enemy may have a circle for solid collision (preventing the enemy from walking through walls) but it may also have a line for line-of-sight collision. In this case, we do not want the line to collide against the walls, so we would specify that only the enemy's circle should collide with the walls. All available shapes for subcollisions appear in the Subcollision dropdowns for each object. Note that changing the subcollision will also rename the CollisionRelationship if the Auto-name Relationship option is checked.

Collision Physics

Physics can be set up through the Collision tab which offers multiple options.

:

  • No Physics - Colliding objects will not automatically have their positions or velocities changed by the CollisionRelationship.

  • Move Collision - Colliding objects will be separated if a collision occurs using their relative mass values. The most common values for First Mass and Second Mass are 1, 1 if both objects have equal mass and 0, 1 if the first object should not be able to push the second (in the case of colliding against a solid TileShapeCollection)

    • First Mass - the mass of the first object in the relationship (the mass of enemies) relative to the mass of the second object. If this object should not be able to push the second object, it should have a mass of 0.

    • Second Mass - the mass of the second object relative to the first object. If this object should not be able to push the first object, it should have a mass of 0.

  • Move Soft Collision - Colliding objects will be separated, but gradually over time. This creates a "soft" feel, allowing objects to overlap and push each other around.

  • Bounce Collision - Colliding objects will be separated if a collision occurs. They will also have their velocity adjusted in response to the elasticity value. An elasticity value of 1 will preserve momentum. An elasticity of 0 will be an inelastic collision - where momentum is lost.

    • First Mass/Second Mass - see Move collision

    • Elasticity - A multiplier for an object's velocity when it collides. A value of 0 will absorb momentum. A value of 1 will preserve momentum. A value greater than 1 will add momentum.

Physics can also be applied using collision events if your game needs to customize the behavior when a collision occurs. For example, you may want the relaitive masses between entities to vary rather than always being fixed.

Collision Events

In some cases games will need to perform custom logic when a collision occurs. For example:

  • A Player entity takes damage when colliding with a bullet

  • The Bullet entity being destroyed when colliding with a wall

  • An Enemy entity's movement speed being slowed when colliding with mud TileShapeCollection

  • Certain objects should have different masses when performing collision.

Collision events can be created by dropping a CollisionRelationship on a Screen's Events folder.

Notice that the CollisionRelationship used in this example is between a list of Enemies and a list of Players, but the event is raised for a single Enemy and a single Player. Since each enemy may collide with each player, the event method may get raised multiple times per frame. Every time the event is raised, the arguments tell you which two objects collided.

Code Example - Destroying Entities in Collision

For example, in the code above, you could destroy either the enemy (which is called first) or the player (which is called second) in the event. To destroy the enemy, you can do the following code:

void OnEnemyListVsPlayerListCollisionOccurred (Entities.Enemy first, Entities.Player second)
{
    first.Destroy();
}

Code Example - Detecting TileShapeCollection Collided Shapes

Code Example - Custom Entity Masses

If all entity instances have the same mass, then you can set your collision relationship physics through the FlatRedBall Editor. If your game requires custom masses, then you can implement your own physics in the collision event.

For example, the following code would adjust the player's mass so that it is higher if the player is shooting. This makes the player harder to move when shooting.

void OnPlayerVsEnemyCollisionOccurred (Entities.Player player, Entities.Enemy enemy)
{
    var playerMass = 1;
    var enemyMass = 1;
    var elasticity = 0;
    if(player.IsAttacking)
    {
        playerMass = 5;
    }
    player.CollideAgainstBounce(enemy, playerMass, enemyMass, elasticity);
}

Manual Collision Relationships

CollisionRelationships created in FlatRedBall are automatically managed and automatically perform their every-frame logic. In some cases games need to manually perform collision logic. For example, a game may need to first reset variables on an entity before collision logic is performed for that frame.

In that case, CollisionRelationships can be marked as inactive either in code or in the editor.

To mark a collision relationship as inactive in the editor, uncheck the Is Active variable in the Variables tab.

To mark a collision relationship as inactive in code, set its IsActive value to false.

// This would be done in GameScreen's CustomInitialize
void CustomInitialize()
{
    EnemyListVsPlayerList.IsActive = false;
}

Once a CollisionRelationship is inactive, its DoCollision method can be explicitly called in code.

void CustomActivity(bool firstTimeCalled)
{
    // before calling collision, reset the Enemy's DidCollide:
    foreach(var enemy in EnemyList)
    {
        enemy.DidCollide = false;
    }
    // now do the collision. This assumes that the
    // DidCollide property gets set or used in the event
    // handling method for this relationship:
    EnemyListVsPlayerList.DoCollisions();
}

All CollisionRelationships will at include at least one Entity or Entity list, so it is important to mark Entities which you intend to use in relationships as ICollidable. For information on ICollidable entities, see the .

Note that the TileShapeCollection may have its value set to true. This allows the creation of CollisionRelationships in a base Screen even though the TileShapeCollection is created in a derived Screen.

For more information on FlatRedBall events, see the . Like all other events, collision events can be edited in code. In the example above, the GameScreen.Event.cs file now includes an function OnEnemyVsPlayerCollisionOccurred which is called whenever a collision occurs between an Enemy and Player instance. Make sure to add code to <YourGameScreen>.Event.cs and not the <YourScreen>.Genererated.Event.cs.

To identify which shapes an entity collided against in a TileShapeCollection, the LastCollisionAxisAlignedRectangles property can be used. For more information see the LastCollisionAxisAlignedRectangles .

📐
