Enemy Entity

Introduction

This tutorial covers how to add an Enemy to your project. To speed up the process we'll be importing an existing entity rather than building a new one ourselves. Once imported, we will modify the entity so it has the functionality we'll need for this tutorial - specifically adding the ability for the enemy to take damage.

Importing Enemy Entity

To import the entity

1. Download the exported entity file from here: https://github.com/vchelaru/FlatRedBall/raw/NetStandard/Samples/Platformer/DealingDamage/Enemy.entz

2. In Glue, right-click on the Entities folder

3. Select Import Entity


4. Navigate to the location where you saved the Enemy file earlier and click OK

We now have a fully-functional enemy which has:

• Collision shape named AxisAlignedRectangle

• Sprite displaying a walking animation

• Platformer values so that it can collide with solid collision

• EnemyInput object which will keep the enemy from moving (does not use the gamepad or keyboard)

Adding EnemyList to GameScreen

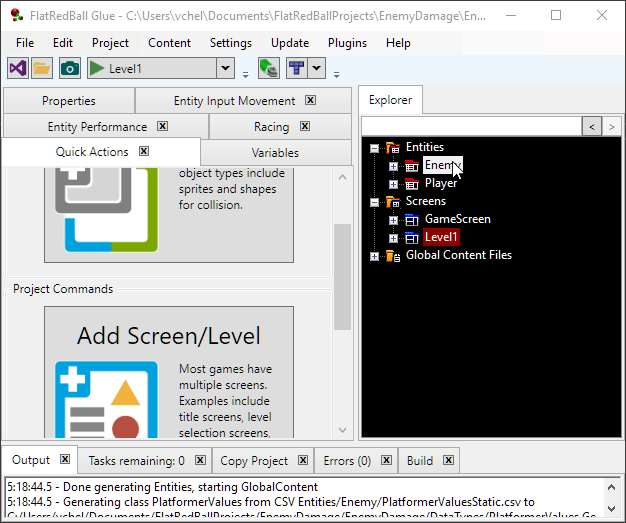

We will add a list to our GameScreen and an instance of our Enemy to Level1 so we can see the enemy in game. To add an enemy list to GameScreen:

1. Select the Enemy entity

2. Select the Quick Actions tab

3. Click the Add Enemy List to GameScreen button - this creates a list of enemies which we'll use to create collision relationships later

4. Click the Add Enemy Factory button - this allows us to create enemies in code and Tiled maps.

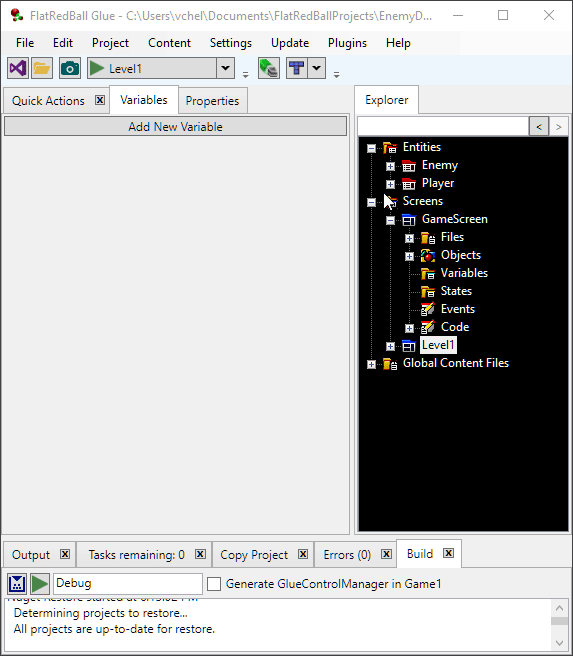

To add an enemy to your Level1:

1. Drag+drop the Enemy entity onto Level1\


2. Select Enemy1 and click on the Variables tab

3. Set X to 160

4. Set Y to -160



Now we have an enemy in the game, but it falls through the level. We can fix this by telling the enemies to collide against our GameScreen's SolidCollision object:

1. Expand GameScreen

2. Expand the Objects folder

3. Drag+drop the EnemyList onto the SolidCollision object

If we run the game now, the enemy will fall and land in the level next to the player.
