async and await

Introduction

FlatRedBall provides a built-in synchronization context enabling the use of async and await keywords while keeping logic on the primary thread. This document discusses common usage of these keywords.

Async and Await Concepts

For a general discussion of async and await, see the Microsoft Asynchronous Programming page. The most common FlatRedBall usage of asynchronous programming is to delay the execution of some action. For example, consider a player entity which can shoot a bullet. After shooting a bullet the player must reload. The following code could be used to implement shooting and reloading:

async void DoShootingActivity()
{
  if(InputManager.Keyboard.KeyPushed(Keys.Space) && this.IsReloading == false)
  {
    this.ShootBullet(); // this is how the bullet in instantiated
    this.IsReloading = true;
    await TimeManager.DelaySeconds(this.ReloadTimeInSeconds);
    this.IsReloading = false;
  }
}

In this example, if the player is not reloading, pressing the space bar shoots a bullet and immediately sets the IsReloading variable to true. The remainder of the code (the line setting IsReloading back to false) will not execute until some time passes, as specified in ReloadTimeInSeconds. The example above shows how using async/await can reduce the amount of code needed to perform time-based logic. By contrast, implementing the code above without using the async and await keywords would require additional variables for timing.

Task.Delay vs TimeManager.DelaySeconds

Programmers who have performed async programming may be familiar with the Task.Delay method. For example, the following code creates a Circle, then destroy it after 3 seconds:

var circle = new Circle();
ShapeManager.Add(circle);
await Task.Delay(3);
ShapeManager.Remove(circle);

While the code is perfectly valid, it does suffer from a few problems:

• The removal of the circle executes after 3 seconds, even if the game is paused.

• The delay of 3 seconds runs in real-world time, and does not respect slow-motion or fast-forward.

These limitations make sense - the Task.Delay method doesn't know about game-specific considerations like pausing or slow motion. By contrast, the TimeManager.DelaySeconds method can take all of these concepts into consideration. Therefore, in most cases your game should use TimeManager.DelaySeconds instead of Task.Delay. Of course, if you are performing logic which should run on a timer regardless of pausing or slow motion, then Task.Delay should be used.

Asynchronous Programming and Screen Destruction

FlatRedBall eliminates any async calls which have yet to execute when transitioning a screen. This allows code to fire-and-forget async calls without needing to consider whether screens have switched since the last call. For example, consider the following code which adds text objects to a stacking Gum container, one each second:

void CustomInitialize()
{
    StartAddingTexts();

    Forms.ButtonInstance.Click += (not, used) => MoveToScreen(typeof(Level1));
}

private async void StartAddingTexts()
{
    while(true)
    {
        var text = new TextRuntime();
        text.Text = GumScreen.ContainerInstance.Children.Count.ToString();
        GumScreen.ContainerInstance.Children.Add(text);

        await TimeManager.DelaySeconds(1);
    }
}

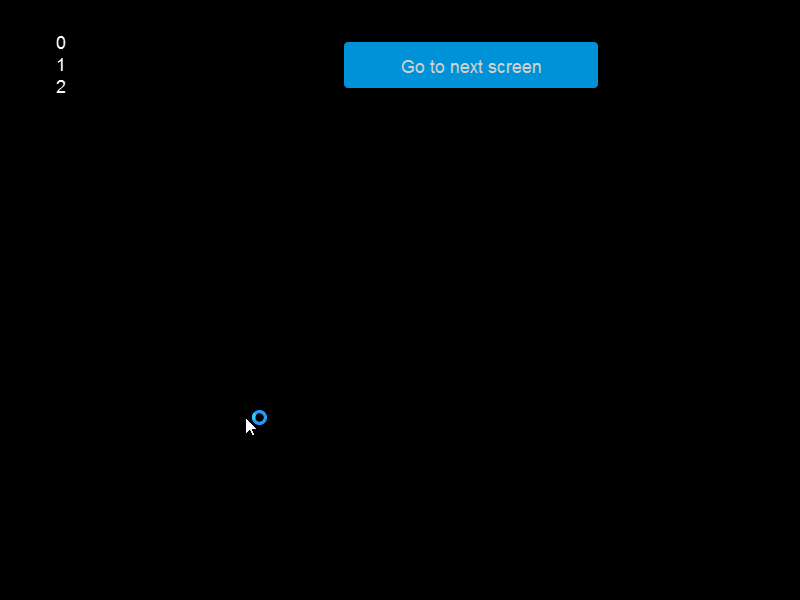

This code might produce the following result:

Notice that although the code has a while(true) statement, the code does not block the execution of the normal game loop. In other words, the button still shows its hover state in response to cursor movement.

However, a loop like this would normally never end, but if we move to the next screen the loop will end. In short, code can be safely written without considering whether the screen has changed when using await calls.
