FlatRedBall
  • 🖥️Downloading FlatRedBall
  • 🏗️Building FlatRedBall From Source
    • Linking Games to FlatRedBall Engine Source
    • Linking FNA
  • ❓Need Help?
  • ✨FlatRedBall Features
  • 🎓Tutorials
    • Introduction To FlatRedBall
    • Quick Start Guide
    • Beefball - A Full FlatRedBall Tutorial Project
      • Creating a FlatRedBall Project
      • Creating an Entity
      • Creating a Screen
      • Controlling an Entity
      • Creating the Screen Collision
      • Advanced PlayerBall Controls
      • Creating the Puck Entity
      • Adding Multiple Players
      • Scoring and Restarting Rounds
      • Scoring Hud
      • Scoring Hud Logic
      • Adding Dashing
    • Platformer Tutorials
      • Platformer Basics
        • Creating an Entity
        • Controlling a Platformer Entity
        • Movement Values
        • Double Jump
      • Checkpoint and Level End
      • Climbing Ladders
      • Doors
      • GroundCollidedAgainst and Movement Values
      • Moving Platforms
      • Multiple Players
      • NPC Dialog
      • Breaking Blocks
        • New Project Setup
        • Creating Level1 Map
        • Creating the Block Entity
        • Block Removal
      • Dealing Damage
        • New Project Setup
        • Enemy Entity
        • Shooting Bullets
        • Damaging the Enemy
      • Enemy Movement
        • New Project Setup
        • Enemy Entity
        • Enemy Input Logic
        • Detecting Platform Edges
      • Ground Type and Water Movement
        • New Project Setup
        • Creating Level1 Map
        • Adding Ice and Water
        • Platformer Movement Values
      • Animation and Platformer Values
        • New Project Setup
        • Creating AnimationLayers
        • Modifying Platformer Values
      • Wall Sliding and Jumping
    • Damage Dealing
      • Setup
      • Team Index
      • Damage Events
      • IDamageArea Removal
      • Melee Damage
    • Entity Variants Using Inheritance
    • FlatRedBall.Forms
      • Getting Started with FlatRedBall.Forms
        • Setup
        • Working with Common Controls
        • Forms vs Gum in Code
      • Forms and Xbox360GamePad
      • Data Binding (BindingContext)
        • BindingContext Property
        • Binding FlatRedBall.Forms
        • Parent and Children Binding using BindingContext
        • ListBox Templates
      • Styling Forms
      • Defining New Forms Types
        • Adding New Types to FlatRedBall.Forms Library
      • Accessing Forms Events in Gum Runtimes
    • Top Down Games
      • Top Down Basics
        • Setup
        • Input Device
        • CurrentMovement
      • Enemy Movement
        • Enemy Pathfinding
        • Direct Enemy Control
      • GroundVelocity
      • Animation
      • Sorting
    • Post Processing
    • Rock Blaster - A Full FlatRedBall Tutorial Project
      • Introduction
      • Setup
      • Game Skeleton
      • Player Entity
      • Player Behavior
      • Rock Entity
      • Collision
      • Rock States
      • HUD
      • Multiple Players
      • Health
      • Health Part 2
      • Destroying Entities
      • Cleaning Up
    • Code-Only Projects (No Editor)
      • Creating a FlatRedBall Project
      • Adding a Circle
      • Loading Textures and Using Sprites
    • Code Tutorials
      • 3D Camera Setup
      • Adding FlatRedBall to a MonoGame/FNA Project
      • Adding WPF to an Existing Game
      • async and await
      • CLR Profiler
      • Collision Jitter
      • Culling
      • Customizing Cursor Visuals
        • Windows Desktop
        • windows-rt
      • Depth Buffer Z Fighting
      • Dictionaries and Enum Keys
      • FlatRedBall XNA in Windows Form
      • Improving Performance
        • CustomActivity Performance
        • Identifying Screen Creation Performance Issues
        • Rendering Performance
        • Manually Updated Objects
          • Introduction
          • Measuring Automatic Updates
          • Measuring Sprite Automatic Updates
          • Manual Particle Systems
      • Object Sorting
      • Pix
      • Rendering Sprites with Shaders
      • Tile-Based Movement
      • Velocity
    • Distribution
      • App Icon
      • Emptying bin Folder Using Probing Path
      • itch.io
      • Release Build
      • Steam
    • FlatRedBall and Velcro Physics
      • Using Velcro Physics with the FlatRedBall Editor
      • Code-Only Velcro Projects
    • FlatRedBall Editor Plugins
      • Introduction to FlatRedBall Plugins
      • Creating a Plugin Project
      • Creating a Plugin Class
      • Adding UI to FlatRedBall
      • Using MVVM
      • Creating a NamedObjectSave-Editing Plugin
      • Adding File Format Support
      • Adding Code Files to a Game Project
      • Errors
      • Exporting a Plugin
    • Additional FlatRedBall Editor Tutorials
      • How to Create a First Person Camera
      • How to Play Sounds
      • How to Share Reference Data Between Screens and Entities
    • Math Tutorials
      • Circle Collision
      • Determining required magnitude for trajectory
      • Introduction to Collision
      • Power of Two
      • Rectangle Collision
      • rotation
      • statistics
      • trigonometry
      • vector
      • matrix
      • interpolation
    • Overworld Tutorials
      • Spinning Mode 7
        • New Project Setup
        • Adding Camera Code
        • Fading In and Out
  • 🎞️Videos
  • 📐FlatRedBall Editor
    • Display Settings
    • Entities
      • BaseEntity
      • Constructor
      • ConvertToManuallyUpdated
      • CreatedByOtherEntities
      • CustomActivity
      • CustomDestroy
      • CustomInitialize
      • Destroying Entities
      • Entity Performance
      • Export Entity
      • Implements IClickable
      • Implements ICollidable
      • Implements IDamageArea
      • Implements IDrawableBatch
      • Implements IGumCollidable
      • Implements IVisible
      • Implements IWindow
        • SlideOnClick
      • Import Entity
      • Inheriting from FlatRedBall Types
      • LayerProvidedByContainer
      • MoveToLayer
      • PooledByFactory
      • Top Down Movement
        • TopDownSpeedMultiplier
      • Use Global Content
    • Events
      • ResolutionRrOrientationChanged
    • Factories
      • CreateNew
      • EntitySpawned
      • Initialize
      • SortAxis
    • Files
      • File Types
        • Animation Chain List (.achx)
        • Comma Separated Values (.csv)
          • Combining .csvs With Entities
          • CreatesDictionary
          • Cross Referencing CSVs
          • Instantiating Custom Types
          • OrderedList
          • SetCreatedClass
            • generate-data-class
          • uniformrowtype
        • Effect (.fx, .fxb)
        • Font (.fnt)
        • JSON (.json)
        • Model (.fbx)
        • MP3
        • Node Network (.nntx)
        • OpenDocument Spreadsheet (.ods)
        • ShapeCollections (.shcx)
        • SplineList (.splx)
        • Texture2D (.png)
        • Wave (.wav)
      • Accessing Files in Code
      • Adding File Objects to Managers
      • Destroy on Unload
      • File Build Tool
      • Folders
      • Global Content Files
      • IsDatabaseForLocalizing
      • IsManuallyUpdated
      • IncludeDirectoryRelativeToContainer
      • LoadedAtRuntime
      • LoadedOnlyWhenReferenced
      • Name
      • Platform Inclusions
      • Project Specific Files
      • RuntimeType
      • SourceFile
      • UseContentPipeline
      • Wildcard Files
    • FileVersion (.gluj)
    • Generated Code
    • Global Content Files
      • LoadAsynchronously
      • Reload
      • Setting Files At Runtime
    • Live Edit
      • Render Targets
    • Menu
      • Content
        • Additional Content
          • Using Runtime Types as Objects
          • creating-runtime-objects
          • runtime-object-charateristics
          • simple-line-of-text-tutorial
        • Introduction
        • pipeline-settings
      • File
        • New Project
      • Edit
        • Find File References
      • Plugins
        • Install Plugin
        • Manage Plugins
      • Project
        • View Projects
      • Settings
        • Camera Settings
        • File Associations
        • File Build Tools
        • Performance Settings
      • Update
        • Introduction
        • glue-reference-menu-frbdk
        • glue-reference-menu-libraries
    • Multi-Platform
      • Synced Projects
      • Changing Main Project Type
      • Android
        • Distribution
        • Setup
      • iOS
        • Certificates and Profiles
        • Copying Projects to Mac
        • Using Xamarin Build Host
      • Switch (Nintendo)
      • Web
    • Objects
      • Object Types
        • AxisAlignedRectangle
        • Camera
        • CameraControllingEntity
        • Circle
        • CollisionRelationship
        • Layer
          • DestinationRectangle
          • Is2D
        • Polygon
        • PositionedObjectList
        • RenderTarget2D
        • ShapeCollection
        • SoundEffectInstance
        • Sprite
        • Text
        • TileNodeNetwork
      • AddToManagers
      • AttachToCamera
      • AttachToContainer
      • CallActivity
      • Collidable Objects
      • EntireFile
      • ExposedInDerived
      • HasPublicProperty
      • IgnoresPausing
      • IncludeInIClickable
      • IncludeInICollidable
      • IsContainer
      • LayerOn
      • Map
      • SetByDerived
      • SourceFile
      • SourceType
    • Plugins
      • glue-gluevault-component-pages-rendertargetrenderer
      • glue-gluevault-component-pages-simple-command-console
      • glue-gluevault-component-pages-squid-gui-integration
      • kalldrexx-interactive-debugging-console
    • Profiling
    • Screens
      • AsyncLoadingState
      • BaseScreen
      • Constructor
      • Creating a New Screen
      • CustomDestroy
      • CustomInitialize
      • DefaultLayer
      • GameScreen
      • IsActivityFinished
      • IsLoadingScreen
      • LoadStaticContent
      • MoveToScreen
      • PauseAdjustedCurrentTime
      • Set as StartUp Screen
      • UnloadsContentManagerWhenDestroyed
    • States
      • InterpolateToState
      • InterpolateToState vs InterpolateBetween
      • State Categories
      • State Classes
      • States and Inheritance
      • Tunneling Category Variables
    • Variables
      • CreatesEvent
      • HasAccompanyingVelocityProperty
      • IsShared
      • Proper Variable Naming
      • SetByDerived
      • Type
      • Variable Order
    • Visual Studio Project (.csproj)
  • 🏃Animation Editor
    • Frame Time
    • Animation Shapes and Collision
  • Tiled
    • Tiled Basics
      • Introduction
      • Creating a GameScreen
      • Adding Collision
      • Colliding Entities Against TileShapeCollections
      • Working with Multiple Levels
      • Creating Entities from Tiles
      • Creating Entities from Object Layers
      • Accessing Tiled Properties
      • Working with Tiled Shapes
    • Tiled Files in Entities
    • TileEntityInstantiator
    • Using TiledObjects.Generated.xml
    • LayeredTileMap
      • Collisions
      • Destroy
      • FromTiledMapSave
      • Z
    • MapDrawableBatch
      • AddTile
      • CoordinateAdjustment
      • GetBottomLeftWorldCoordinateForOrderedTile
      • MergeOntoThis
      • NamedTileOrderedIndexes
      • PaintTile
      • PaintTileTextureCoordinates
      • ParallaxX
      • Paste
      • Properties
      • RemoveQuads
      • RenderingScale
      • SortAxis
    • TiledMapSave
    • TileShapeCollection
      • AddCollisionAtWorld
      • AddCollisionFrom
      • AddCollisionFromTilesWithProperty
      • AddMergedCollisionFromLayer
      • AddMergedCollisionFromTilesWithProperty
      • AdjustRepositionDirectionsOnAddAndRemove
      • CollideAgainst
      • CollideAgainstClosest
      • GetRectangleAtPosition
      • InsertCollidables
      • LastCollisionAxisAlignedRectangles
      • Rectangles
      • RemoveFromManagers
      • RemoveSurroundedCollision
  • 🟩Gum
    • Tutorials
      • Introduction and Setup
      • Screens in Gum
      • Gum Objects in Code
      • Events on Gum Objects
      • Events on Gum Objects Part 2
      • Exposed Variables
      • States
      • Adding Code to Gum Objects
    • Accessing Gum Screens in Code
    • Adding Components to Layers
    • Adding Gum Screens to FlatRedBall
    • Animations in Code
    • Components in FlatRedBall Entities
    • Converting Gum Coordinates
    • Creating Components in Code
    • GraphicalUiElement as IWindow
    • Gum Resolution
    • Gum Properties Tab
    • Gum Animations
      • How to Play Gum Screen Animations
      • Named Events
      • Setting Gum Animationchain Achx in Code
  • 🦴Spine
    • Setup
    • Atlas
    • Changing Spine Textures at Runtime
    • SpineDrawableBatch
      • Event
      • PlayAnimation
      • SetCollision
      • Skeleton
  • ⏸️Aseprite
    • AnimationChainList
  • 🏫API Documentation
    • FlatRedBall Engine
      • AI
        • LineOfSight
          • VisibilityGrid
        • Pathfinding
          • PositionedNode
          • Link
            • Cost
            • NodeLinkingTo
          • NodeNetwork
            • GetPath
            • UpdateShapes
            • Visible
          • TileNodeNetwork
            • AddAndLinkTiledNode
            • AddAndLinkTiledNodeWorld
            • OccupyTileWorld
            • SetCosts
      • Audio
        • AudioManager
          • AreSoundEffectsEnabled
          • CurrentlyPlayingSong
          • MasterSongVolume
          • MasterSoundVolume
          • Play
          • PlaySong
          • PlaySongs
          • StopSong
        • PositionedSound
        • Sound
      • Camera
        • AbsoluteRightXEdge
        • AbsoluteRightXEdgeAt
        • AddLayer
        • AddSpriteToBillboard
        • AspectRatio
        • AttachTo
        • BackgroundColor
        • CameraCullMode
        • ClearMinimumsAndMaximums
        • ClearsDepthBuffer
        • DestinationRectangle
        • DrawsShapes
        • DrawsToScreen
        • DrawsWorld
        • FarClipPlane
        • FieldOfView
        • FixAspectRatioYConstant
        • ForceUpdateDependencies
        • GetViewport
        • IsSpriteInView
        • KeepSpriteInScreen
        • Layer
        • Layers
        • Main
        • MaximumX
        • Orthogonal
        • OrthogonalHeight
        • OrthogonalWidth
        • PixelsPerUnitAt
        • Position
        • PositionRandomlyInView
        • RelativeXEdgeAt
        • RemoveLayer
        • RotationMatrix
        • SetBordersAtZ
        • SetLookAtRotationMatrix
        • SetSplitScreenViewport
        • UpdateViewProjectionMatrix
        • UpVector
        • UsePixelCoordinates
        • UsePixelCoordinates3D
        • View
      • Content
        • ContentLoadBatch
        • AnimationChain
          • AnimationChainListSave
        • ContentManager
          • AddUnloadMethod
          • FileAliases
          • IsAssetLoadedByName
          • Load
          • LoadFromGlobalIfExists
          • Multiple Content Managers
        • Math
          • Geometry
            • ShapeCollectionSave
        • Polygon
          • PolygonSave
        • Scene
          • CameraSave
          • SceneSave
        • SpriteEditorScene
          • Camera
      • Debugging
        • Debugger
          • CommandLineWrite
          • GetFullPerformanceInformation
          • TextBlue
          • WriteAutomaticallyUpdatedObjectInformation
      • Entities
        • CameraControllingEntity
        • IDamageable
        • IDamageArea
      • FlatRedBallServices
        • AddDisposable
        • AddManager
        • CornerGrabbingResize
        • Draw
        • ForceClientSizeUpdates
        • Game
        • GetManagerInformation
        • GlobalContentManager
        • GraphicsOptions
        • Initialize
        • IsLoaded
        • Load
        • Owner
        • Random
        • RenderAll
        • Unload
        • Update
        • WindowHandle
      • Graphics
        • Animation
          • AnimationChain
            • Clone
            • FrameToFrame
            • TotalLength
          • AnimationChainList
          • AnimationController
          • AnimationFrame
            • RelativeX
            • ShapeCollectionSave
            • Texture
          • IAnimationChainAnimatable
            • Animate
            • Animation and Timing
            • AnimationChains
            • AnimationSpeed
            • CurrentChainName
            • CurrentFrameIndex
            • JustChangedFrame
            • JustCycled
            • UseAnimationRelativePosition
        • BitmapFont
          • BMFC File
          • BitmapCharacterInfo
          • FNT File
          • Glyphs
          • LineHeightInPixels
          • RenderToTexture2D
        • BlendOperation
        • ColorOperation
          • Add
          • Color
          • ColorTextureAlpha
          • InterpolateColor
          • Modulate
          • Texture
        • GraphicsOptions
          • Filtering
          • IsFullScreen
          • ResolutionHeight
          • SetFullScreen
          • SetResolution
          • SizeOrOrientationChanged
          • TextureFilter
          • TextureLoadingColorKey
          • UseMultisampling
        • IColorable
          • Alpha
          • BlendOperation
          • Blue
          • ColorOperation
        • IDrawableBatch
          • Z
          • RenderState
        • IVisible
          • IgnoresParentVisibility
        • Layer
          • Layer Membership Details
          • LayerCameraSettings
          • Remove
          • RenderTarget
          • SortType
          • Sprites
          • UsePixelCoordinates
        • LayerCameraSettings
          • OrthogonalWidth
          • TopDestination
        • Particle
          • EmissionSettings
            • Drag
            • PixelSize
            • ScaleX
          • Emitter
        • PostProcessing
          • SwapChain
        • RenderBreak
        • Renderer
          • Draw
          • LastFrameRenderBreakList
          • RenderBreaksAllocatedThisFrame
        • Text
          • AdjustPositionForPixelPerfectDrawing
          • ColorOperation
          • DisplayText
          • GetWidth
          • Font
          • HorizontalAlignment
          • InsertNewLines
          • MaxWidth
          • MaxWidthBehavior
          • NewLineDistance
          • NumberOfLines
          • ScaleX
          • SetColor
          • SetPixelPerfectScale
          • VerticalAlignment
          • Width
        • TextManager
          • AddManuallyUpdated
          • AddText
          • AddToLayer
          • FilterTexts
          • RemoveText
        • Texture
          • RenderTargetSprite
          • ImageData
            • ApplyColorOperation
            • Fill
            • FromTexture2D
      • Gui
        • Cursor
          • Camera
          • ClickNoSlideThreshold
          • CustomUpdate
          • GetRay
          • IngnoreInputThisFrame
          • IsInWindow
          • IsOn
          • IsOn3d
          • PrimaryClick
          • PrimaryClickNoSlide
          • PrimaryPushTime
          • ScreenX
          • SecondaryClick
          • SetControllingGamepad
          • SetJoystickControl
          • TransformationMatrix
          • WindowOver
          • WidowPushed
          • WorldPosition
          • WorldX
          • WorldXAt
          • WorldYAt
          • XForUi
        • GuiManager
          • AddDominantWindow
          • BringsClickedWindowsToFront
          • BringToFront
          • GamepadsForUiControl
          • MakeRegularWindow
          • RemoveWindow
          • SortZAndLayerBased
          • Windows
        • IClickable
        • IInputReceiver
          • IWindow
            • CallClick
            • Enabled
          • ReceiveInput
      • Input
        • AnalogButton
        • AnalogStick
          • IsMaxPositionNormalized
        • DelegateBased1DInput
        • DelegateBased2DInput
        • DelegateBasedPressableInput
        • I1DInput
        • I2DInput
        • IMouseOver
        • InputDeviceBase
        • InputManager
          • ClearAllInput
          • InputReceiver
        • IPressableInput
        • Keyboard
          • Clear
          • ControlPositionedObject
          • Get2DInput
          • GetKey
          • GetStringTyped
          • IgnoreKeyForOneFrame
          • KeyDown
          • KeyPushed
        • Mouse
          • GrabbedPositionedObject
          • IsOn3D
          • ModifyMouseState
          • Restricting Mouse to Screen Bounds
          • SetScreenPosition
        • TouchScreen
          • LastFrameGestures
          • ReadsGestures
        • Windows
          • WindowsInputEventManager
        • Xbox360GamePad
          • ButtonDown
          • ButtonMap
          • ButtonPosition vs Button
          • ButtonPushed
          • ControlPositionedObject
          • CreateDefaultButtonMap
          • Deadzone
          • DeadzoneType
          • FakeIsConnected
          • GamepadLayout
          • IgnoreButtonForOneFrame
      • Instructions
        • DelegateInstruction
        • IInstructable
          • Call
          • Cnstructions
          • Set
        • Instruction
        • InstructionList
          • ExecuteAndRemoveOrCyclePassedInstructions
        • InstructionManager
          • Add
          • AddSafe
          • Instructions
          • MoveThrough
          • MoveTo
          • MoveToAccurate
          • ObjectsIgnoringPausing
          • PauseEngine
          • Pulse
          • RotateToAccurate
        • Reflection
          • LateBinder
          • PropertyCollection
        • MethodInstruction
        • StaticMethodInstruction
      • IO
        • Csv
          • CsvHeader
          • CsvFilemanager
            • Cells with Multiple Lines
            • Color
            • CsvDeserializelist
            • Rows with Lists
          • RuntimeCsvRepresentation
            • FromList
            • GenerateCsvString
        • FileManager
          • BinarySerialize
          • CloneObject
          • FromFileText
          • GetAllFilesInDirectory
          • GetUserFolder
          • InitializeUserFolder
          • RelativeDirectory
          • SaveEmbeddedResource
          • SaveText
          • Standardize
          • UserApplicationDataForThisApplication
          • XmlDeserialize
          • XmlSerialize
      • Localization
        • LocalizationManager
      • Managers
        • IManager
      • Math
        • IAttachableRemovable
        • AttachableList
          • FindByName
          • MakeOneWay
        • Collision
          • CollisionManager
            • Relationships
            • Update
        • Geometry
          • AxisAlignedCube
            • CollideAgainstBounce
          • AxisAlignedRectangle
            • Axis Alignment And Rotation
            • CollideAgainstMoveSoft
            • Color
            • GetRandomPositionInThis
            • KeepThisInsideOf
            • LastMoveCollisionReposition
            • Left
            • RepositionDirections
          • Capsule2D
          • Circle
            • CollideAgainst
            • CollideAgainstBounce
            • CollideAgainstMove
            • IsPointInside
            • LastCollisionTangent
            • LastMoveCollisionReposition
            • ProjectParentVelocityOnLastMoveCollisionTangent
            • Visible
            • Z
          • Colliding a List of Shapes Against Itself
          • FloatRectangle
          • ICollidable
          • IScalable
            • Scale
          • Line
            • Color
            • LastCollisionPoint
            • RelativePoint1
            • SetFromAbsoluteEndpoints
          • Point
          • Polygon
            • AbsolutePointPosition
            • Clone
            • CollideAgainstBounce
            • CollideAgainstMove and Attachments
            • CollideAgainstMove
            • Color
            • CreateEquilateral
            • CreateRectangle
            • ForceUpdateDependencies
            • IsPointInside
            • LastMoveCollisionReposition
            • OptimizeRadius
            • Points
            • Position
            • ProjectParentVelocityOnLastMoveCollisionTangent
            • ScaleBy
            • Thin Polygon Problem
            • VectorFrom
            • Visible
            • Z
          • Segment
            • ClosestPointTo
          • Shape
          • ShapeCollection
            • AttachTo
            • AxisAlignedRectangles
            • CollideAgainst
            • CollideAgainstBounceWithoutSnag
            • CollideAgainstMove
            • CollideAgainstMoveWithoutSnag
            • LastCollisionAxisAlignedRectangles
            • SortAscending
            • Visible
          • ShapeManager
            • AddToLayer
            • Remove
            • ShapeDrawingOrder
          • ShapeMerger
          • Shapes and 2D Collision
          • Sphere
        • IAttachable
          • Attachment Updates in the Engine
          • Detach
          • ParentRotationChangesPosition
          • ParentRotationChangesRotation
          • TopParent
        • IRotatable
          • RotationMatrix
        • MathFunctions
          • AbsoluteToWindow
          • AngleToAngle
          • AngleToVector
          • GetPointInCircle
          • GetPositionAfterTime
          • RegulatAngle
          • RotatePointAroundPoint
          • RoundFloat
          • RoundToInt
          • WidowToAbsolute
        • Paths
          • Path
        • PositionedObjectList
          • Add
          • AttachTo
          • Clear
          • GetFirstAfter
          • GetFirstAfterPosition
          • SortXInsertionAscending
        • Splines
          • Spline
            • GetPositionAtLengthAlongSpline
      • Performance
        • Measurement
          • Section
            • GetAndStartContextAndTime
            • Save
            • ToStringVerbose
      • PositionedObject
        • Acceleration
        • AttachTo
        • Children
        • Clone
        • Drag
        • ForceUpdatedependencies
        • ForceUpdatedependenciesDeep
        • Initialize
        • KeepTrackOfReal
        • LastPosition
        • Mirrored properties
        • ParentRotationChangesPosition
        • ParentRotationChangesRotation
        • Position
        • RelativePosition
        • RelativeRotationZ
        • RelativeVelocity
        • RemoveSelfFromListsBelongingTo
        • RotationZ
        • SetRelativeFromAbsolute
        • TimedActivity
        • TopParent
        • UpdateDependencies
        • Velocity
        • Z
      • Screens
        • Screen
          • ContentManagerName
          • CustomDestroy
          • IsActivityFinished
          • MoveToScreen
          • PauseThisScreen
        • ScreenManager
          • Activity
          • CurrentScreen
          • Start
      • Sprite
        • Alpha
        • AnimateSelf
        • AnimationChains
        • AnimationSpeed
        • Bottom
        • BottomTextureCoordinate
        • Changing a Sprite's Origin
        • ColorOperation
        • CurrentChainName
        • CurrentFrameIndex
        • IgnoreAnimationChainTextureFlip
        • Inheriting from the Sprite Class
        • JustCycled
        • LeftTextureCoordinate
        • PixelSize
        • Position
        • RightTextureCoordinate
        • SetAnimationChain
        • SetScaleXRatioToY
        • Sorting and Overlapping
        • Sprite vs Texture2d
        • Texture Coordinates
        • Texture
        • TextureAddressMode
        • TextureCoordinate
        • TextureFilter
        • TextureScale
        • TimeIntoAnimation
        • TopTextureCoordinate
        • UseAnimationRelativePosition
        • Vertices
        • VerticesForDrawing
        • Visible
      • SpriteList
      • SpriteManager
        • AddDrawableBatch
        • AddManagedInvisibleSprite
        • AddManualSprite
        • AddParticleSprite
        • AddPositionedObject
        • AddSprite
        • AddToLayer
        • AddZBufferedDrawableBatch
        • AddZBufferedSprite
        • AutomaticallyUpdatedSprites
        • Camera
        • ConvertToAutomaticallyUpdated
        • ConvertToManagedInvisible
        • ConvertToManuallyUpdated
        • ConvertToZBufferedSprite
        • DrawableBatches
        • ManagedPositionedObjects
        • ManualUpdate
        • MaxParticleCount
        • MoveToBack
        • OrderedSortType
          • Z
        • OrderedSprites
        • RemoveDrawableBatch
        • RemoveLayer
        • RemovePositionedObject
        • RemoveSprite
        • RemoveSpriteOneWay
        • SortTexturesSecondary
        • SortYSpritesSecondary
        • UnderAllDrawnLayer
      • TimeManager
        • Accumulating Time
        • CurrentScreenSecondsSince
        • CurrentTime
        • Profiling
        • SecondDifference
        • SecondsSince
        • SumTimeSection
        • SystemCurrentTime
        • TimeFactor
        • Working with TimeSpan
      • Utilities
        • StringFunctions
    • FlatRedBall.Forms
      • Controls
        • Button
        • CheckBox
        • ComboBox
        • FrameworkElement
          • DefaultFormsComponents
          • HandleTab
          • Show
          • Visual
        • Games
          • DialogBox
          • OnScreenKeyboard
          • SettingsView
        • ListBox
        • ListBoxItem
        • RadioButton
        • ScrollBar
        • ScrollViewer
        • Slider
        • StackPanel
        • TextBox
        • TreeView
        • TreeViewItem
      • MVVM
        • DependsOnAttribute
    • FlatRedBall Editor Plugin
      • customvariable
      • Introduction
      • flatredball-glue-elements-objectfinder
      • flatredball-glue-guidisplay-propertygriddisplayer
      • Introduction
      • flatredball-glue-projectmanager
      • Introduction
      • flatredball-glue-saveclasses-namedobjectsave
      • flatredball-glue-saveclasses-referencedfilesave
      • flatredball-glue
        • plugins
          • flatredball-glue-exportedinterfaces-igluestate
          • flatredball-glue-exportedinterfaces-igluxcommands-addreferencedfiletoglobalcontent
          • flatredball-glue-exportedinterfaces-igluxcommands
          • Introduction
          • flatredball-glue-exportedinterfaces-iprojectcommands-makeabsolute
          • flatredball-glue-exportedinterfaces-iprojectcommands
          • flatredball-glue-interfaces-icodegeneratorplugin
          • flatredball-glue-interfaces-imenustripplugin
          • Introduction
          • flatredball-glue-pluginbase-getfilesreferencedby
          • flatredball-glue-pluginbase
          • Introduction
        • vshelpers
          • codebuilditemadder
    • FlatRedBall Editor (Glue)
      • AssetTypeInfo
      • Cleaning Up Screens
      • CodeGeneration
        • ICodeBlock
      • CustomActivity
      • CustomLoadStaticContent
      • Entity
        • Introduction
        • glue-reference-entities-destroy
      • Game1CodeGenerator
      • GetFile
      • PauseThisScreen
      • SaveClasses
        • GlueSettingsSave
      • Screen
        • glue-reference-screens-pauseadjustedsecondssince
    • Live Edit
      • EditorVisuals
        • Circle
        • Text
      • Instance Creation
    • Gum Runtime
      • GraphicalUiElement
        • GetAbsoluteLeft
        • GetGraphicalUiElementByName
        • HasCursorover
        • InterpolateBetween
        • InterpolateTo
        • MoveToFrbLayer
        • RaiseChildrenEventsOutsideOfBounds
        • SetProperty
        • ShowLineRectangles
        • TestCollision
      • RenderingLibrary
        • camera
        • ipositionedsizedobject
        • graphics
          • Layer
          • text
            • textrenderingmode
    • iOS
      • uikit-uiviewcontroller
    • Microsoft.Xna.Framework
      • Audio
        • SoundEffect
        • SoundEffectInstance
      • Color
      • Introduction
      • Game
        • IsActive
        • IsFixedTimeStep
        • IsMouseVisible
        • TargetElapsedTime
      • GameWindow
        • Introduction
        • Introduction
        • handle
      • Graphics
        • Shared Parameters
        • model
        • spritebatch
        • GraphicsDevice
          • renderstate
          • SetRenderTarget
        • renderstate
          • referencealpha
        • Texture2D
          • Creating New Textures Programatically
      • GraphicsDeviceManager
        • supportedorientations
      • Media
        • MediaPlayer
        • Song
          • FromUri
      • Vector3
    • NAudio
      • NAudio_Song
    • SkiaGum
      • SkiaSpriteCanvas
      • Renderables
        • RenderableSkiaObject
    • State Interpolation
      • Tween
      • Tweener
      • TweenerManager
  • 🏘️Contributing
    • How to Contribute
    • Builds (Releases)
      • Gum
    • Writing Documentation
    • Contributing Code (Pull Requests)
    • Automated Test Project
    • Programming Style Guide
  • 🎮FlatRedBall Games
    • angry-boy
    • avatar-skate
    • avatar-word-wave
    • bobble-biker
    • box-the-gopher
    • cargo-crush
    • combo-red-moon-rising
    • cubism
    • eat-my-shuriken-and-die
    • elemento
    • food-battler
    • free-towels
    • gravi-dot
    • hyperdodge
    • juice-factory
    • operation-sd-space-defense
    • picture-puzzle-revolution
    • prismatic
    • quarantine
    • quest-for-freshness
    • star-stepper
    • steambirds
    • sticky-bump
    • tile-trip
    • trashman
    • tumble-heads
    • udder-chaos
    • without-escape
    • games-oniro
  • 🔴FlatRedBall Logo
  • Installing XNA in Visual Studio 2017
Powered by GitBook
On this page
  • Introduction
  • TileShapeCollections and the Wizard
  • Creating TileShapeCollections in the FlatRedBall Editor
  • Example - Setting Collision from a Tile
  • Example - Filling a TileShapeCollection Completely
  • Defining Collision from a TMX File
  • TMX (LayeredTileMap) Example
  • Defining Custom Per-Tile Collision

Was this helpful?

Edit on GitHub
Export as PDF
  1. Tiled

TileShapeCollection

PreviousTiledMapSaveNextAddCollisionAtWorld

Last updated 4 months ago

Was this helpful?

Introduction

TileShapeCollection is a class created specifically for tile based collision. Its features include:

  • Very fast collision - it has partitioning built-in.

  • Eliminates snagging - Internally the TileShapeCollection modifies contained AxisAlignedRectangles' to eliminate snagging.

  • Full support in the FlatRedBall Editor for initial definition and collision relationships.

  • Simplified syntax - Adding collisions to TileShapeCollection is very easy to do in code, whether doing so manually in code or from a loaded TMX file.

TileShapeCollections and the Wizard

If you have created your project using the FlatRedBall Editor Wizard (either platformer or top-down), then your game already has TileShapeCollections. For example, the GameScreen should have a SolidCollision TileShapeCollection.

Creating TileShapeCollections in the FlatRedBall Editor

To add a TileShapeCollection:

  1. Expand your GameScreen or Screen which should contain the TileShapeCollection. Typically collision is added to GameScreen.

  2. Right-click on Objects and select Add Object

  3. Verify FlatRedBall or Custom Type is selected

  4. Select the TileShapeCollection option

  5. Click OK

Now that you have created a TileShapeCollection, you can fill it using a variety of methods as shown before.

Example - Setting Collision from a Tile

The most common usage of TileShapeCollections is to add collision from a particular tile Type. Usually this is done through a Map object in the GameScreen. If your project has been set up using the wizard, then you should have a Map object in GameScreen. If so, you can:

  1. Select the TileShapeCollection that you would like to fill from the map

  2. Check the TileShapeCollection properties

  3. Select the From Type option

  4. Use the dropdown to select the type. These types will match the types defined in your map's Tileset (tsx) file

Example - Filling a TileShapeCollection Completely

When creating a game, you may want to add some placeholder collisions to test your logic and collision relationships. To create placeholder collisions:

  1. Select your TileShapeCollection in Glue

  2. Click the TileShapeCollection Properties

  3. Select the Fill Completely option

  4. Set the Tiles Wide and Tiles High to define the size of collision block you want

  5. Click the Variables tab

  6. Check the Visible checkbox

Now the TileShapeCollection will appear in your game and can be used for testing.

Defining Collision from a TMX File

  1. Open Tiled

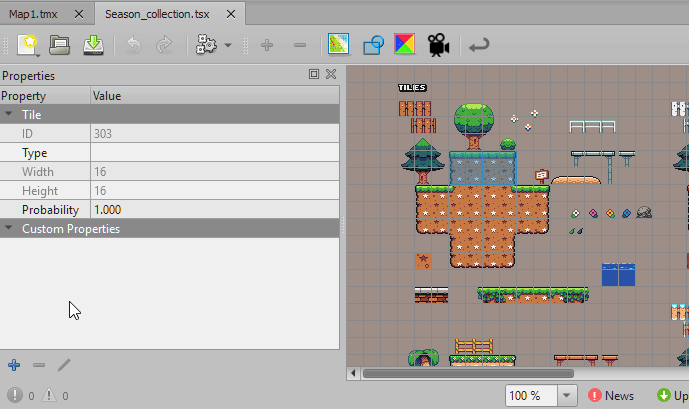

  2. Click the wrench icon to edit the tileset

  3. Select one (or more) tiles which should have collision

  4. Add a Custom Property called SolidCollision. The type of the variable doesn't matter.

  1. Save your tileset (tsx)

  2. Place some tiles in your map

  3. Save your TMX

Now in Glue we can associate the SolidCollision with the TileShapeCollection:

  1. Select the TileShapeCollection in your GameScreen

  2. Click the TileShapeCollection Properties tab

  3. Select the From Property option

  4. Use the dropdown to select your TMX file

  5. Enter the property SolidCollision

Now if you run your game you will see collision wherever you placed your tiles.

TMX (LayeredTileMap) Example

Collision can be added to a TileShapeCollection from a loaded TMX file (which loads into a LayeredTileMap). The following code shows how to add collision from all tiles with the custom property HasCollision.

// These examples assume that a TileShapeCollection named
// solidCollision is defined somewhere (usually class scope for the screen)
TileShapeCollection solidCollision;

// Note that the TileShapeCollection is first created, then
// collision is added. The following code might be in the Screen's CustomInitialize

solidCollision = new TileShapeCollection();
solidCollision.AddCollisionFromTilesWithProperty(TiledLevel, "HasCollision");

Code-Only Example

The following example shows how to create an AxisAlignedRectangle that moves around with the keyboard and collides against a TileShapeCollection. This project assumes a Glue project with:

  1. A Screen called GameScreen

  2. An AxisAlignedRectangle object named Rectangle in GameScreen

To add the TileShapeCollection:

  1. Open the project in Visual Studio

  2. Open GameScreen.cs

  3. Add the following using statement:

    using FlatRedBall.TileCollisions;
  4. Add the following at class scope:

    TileShapeCollection mCollision;
  5. Add the following to CustomInitialize:

    mCollision = new TileShapeCollection();
    mCollision.GridSize = 32;
    mCollision.Visible = true;

    for (int i = 0; i < 10; i++)
    {
        mCollision.AddCollisionAtWorld(i * 32 + 16, 16);
    }

To add movement and collision to your rectangle, add the following code to CustomActivity:

InputManager.Keyboard.ControlPositionedObject(Rectangle, 200);
mCollision.CollideAgainstSolid(Rectangle);

Finally you'll need to remove the TileShapeCollection. To do this, add the following to CustomDestroy:

mCollision.RemoveFromManagers();

Defining Custom Per-Tile Collision

By default each rectangle in a TileShapeCollection occupies the entire tile (16x16). Custom shapes can be defined in Tiled to create rectangles which occupy less than the entire tile, or even polygons for sloped collision. Partial tile collisions are defined in the TSX file, typically in the StandardTileset.tsx. To add collision on tiles:

  1. Open one of your levels in Tiled

  2. Select the TiledIcons (typically where all collision is defined)

  3. Click the wrench icon to edit the tileset

  4. Select the tile which should have partial collision

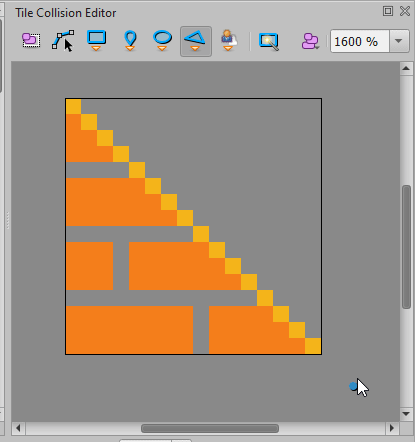

  5. Select View -> View and Toolbars -> Tile Collision Editor

  6. Draw a rectangle or polygon on the tile

  1. Set the Class on the tile which has the collision. Note that the same type can be given to multiple tiles. Be sure to select the tile and not the shape. You may need to deselect and re-select the tile to force its properties to display rather than the newly-drawn polygon. Usually the Class that you specify should match the name of your TileShapeCollection.

  2. Repeat this process for any other tile which should have custom shapes.

  3. Once you have added shapes to all of the tiles, and once you have set the types on the tiles, save the TSX file.

  4. Paint the tiles in their desired locations. Note that tile collision can be previewed in Tiled by selecting the View -> Show Tile Collision Shapes option

  5. Save the Tiled (TMX) file.

Tiles can be flipped and rotated in Tiled to allow for more complex shapes. You can use the shortcut keys X, Y, and Z, or the icons to flip tiles. FlatRedBall respects flipping and rotation for collision.

To use these shapes to fill a TileShapeCollection in FlatRedBall:

  1. Select an existing TileShapeCollection or create a new TileShapeCollection. Typically this TileShapeCollection would be in the GameScreen.

    1. If creating a new TileShapeCollection, name it the exact same as the name you assigned to the Class value for all of your tiles.

  2. Select the TileShapeCollection Properties tab

  3. Select the From TMX Collision - requires shapes defined in the tileset (TSX) option

  4. Set Source TMX File/Object to Map

  5. Set Tile Class to the name that you specified earlier

The TileShapeCollection now includes custom shapes as defined in Tiled.

Solid Collision Considerations

If you are using partial tiles for solid collision, there are a few guidelines you should follow to prevent your entities from being teleported strangely when colliding with shapes. If you are not using the tiles for solid collision, then these rules do not need to be followed.

If a tile has partial collision, then its neighbors must fall into one of the following categories:

  1. It must be completely empty (no collision)

  2. The two tiles must have their solid are aligned perfectly

Let's look at a few examples to see how these rules can be followed. The following shows a valid layout:

Note that the partial collision tiles have neighbors which are either empty (0) or which are aligned perfectly (1).

Similarly, adjacent tiles can also be partial as long as they continue the collision, as shown in the following image:

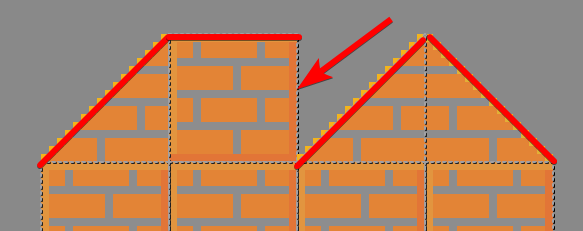

The following would not be a valid collision because the neighbor to the edges of the solid collision do not match.

We can see that the top tiles in the second and third tiles do not align properly, as shown by the following image:

Partial tiles can connect to adjacent partial tiles even if the edges do not meet at the corner of the grid. For example the following layout is valid:

Testing your collision using Fill or Border Outline is a handy way to make sure your game is working as you expect it, but eventually you will want to have collision defined in a map. For this tutorial we'll work with a simple game with a single TMX file already added to the GameScreen which also contains a TileShapeCollection. First we'll specify which tiles should have collision:

RepositionDirections
Turn on Show Tile Collision Shapes to see your collisions in Tiled
Solid collisions
Valid collision with partial tiles
Collision following the guidelines for partial collision
Valid collision with neighbors continuing the collision
Invalid solid collision
Invalid collision due to the solid collision edges not matching
