FlatRedBall
  • 🖥️Downloading FlatRedBall
  • 🏗️Building FlatRedBall From Source
    • Linking Games to FlatRedBall Engine Source
    • Linking FNA
  • ❓Need Help?
  • ✨FlatRedBall Features
  • 🎓Tutorials
    • Introduction To FlatRedBall
    • Quick Start Guide
    • Beefball - A Full FlatRedBall Tutorial Project
      • Creating a FlatRedBall Project
      • Creating an Entity
      • Creating a Screen
      • Controlling an Entity
      • Creating the Screen Collision
      • Advanced PlayerBall Controls
      • Creating the Puck Entity
      • Adding Multiple Players
      • Scoring and Restarting Rounds
      • Scoring Hud
      • Scoring Hud Logic
      • Adding Dashing
    • Platformer Tutorials
      • Platformer Basics
        • Creating an Entity
        • Controlling a Platformer Entity
        • Movement Values
        • Double Jump
      • Checkpoint and Level End
      • Climbing Ladders
      • Doors
      • GroundCollidedAgainst and Movement Values
      • Moving Platforms
      • Multiple Players
      • NPC Dialog
      • Breaking Blocks
        • New Project Setup
        • Creating Level1 Map
        • Creating the Block Entity
        • Block Removal
      • Dealing Damage
        • New Project Setup
        • Enemy Entity
        • Shooting Bullets
        • Damaging the Enemy
      • Enemy Movement
        • New Project Setup
        • Enemy Entity
        • Enemy Input Logic
        • Detecting Platform Edges
      • Ground Type and Water Movement
        • New Project Setup
        • Creating Level1 Map
        • Adding Ice and Water
        • Platformer Movement Values
      • Animation and Platformer Values
        • New Project Setup
        • Creating AnimationLayers
        • Modifying Platformer Values
      • Wall Sliding and Jumping
    • Damage Dealing
      • Setup
      • Team Index
      • Damage Events
      • IDamageArea Removal
      • Melee Damage
    • Entity Variants Using Inheritance
    • FlatRedBall.Forms
      • Getting Started with FlatRedBall.Forms
        • Setup
        • Working with Common Controls
        • Forms vs Gum in Code
      • Forms and Xbox360GamePad
      • Data Binding (BindingContext)
        • BindingContext Property
        • Binding FlatRedBall.Forms
        • Parent and Children Binding using BindingContext
        • ListBox Templates
      • Styling Forms
      • Defining New Forms Types
        • Adding New Types to FlatRedBall.Forms Library
      • Accessing Forms Events in Gum Runtimes
    • Top Down Games
      • Top Down Basics
        • Setup
        • Input Device
        • CurrentMovement
      • Enemy Movement
        • Enemy Pathfinding
        • Direct Enemy Control
      • GroundVelocity
      • Animation
      • Sorting
    • Post Processing
    • Rock Blaster - A Full FlatRedBall Tutorial Project
      • Introduction
      • Setup
      • Game Skeleton
      • Player Entity
      • Player Behavior
      • Rock Entity
      • Collision
      • Rock States
      • HUD
      • Multiple Players
      • Health
      • Health Part 2
      • Destroying Entities
      • Cleaning Up
    • Code-Only Projects (No Editor)
      • Creating a FlatRedBall Project
      • Adding a Circle
      • Loading Textures and Using Sprites
    • Code Tutorials
      • 3D Camera Setup
      • Adding FlatRedBall to a MonoGame/FNA Project
      • Adding WPF to an Existing Game
      • async and await
      • CLR Profiler
      • Collision Jitter
      • Culling
      • Customizing Cursor Visuals
        • Windows Desktop
        • windows-rt
      • Depth Buffer Z Fighting
      • Dictionaries and Enum Keys
      • FlatRedBall XNA in Windows Form
      • Improving Performance
        • CustomActivity Performance
        • Identifying Screen Creation Performance Issues
        • Rendering Performance
        • Manually Updated Objects
          • Introduction
          • Measuring Automatic Updates
          • Measuring Sprite Automatic Updates
          • Manual Particle Systems
      • Object Sorting
      • Pix
      • Rendering Sprites with Shaders
      • Tile-Based Movement
      • Velocity
    • Distribution
      • App Icon
      • Emptying bin Folder Using Probing Path
      • itch.io
      • Release Build
      • Steam
    • FlatRedBall and Velcro Physics
      • Using Velcro Physics with the FlatRedBall Editor
      • Code-Only Velcro Projects
    • FlatRedBall Editor Plugins
      • Introduction to FlatRedBall Plugins
      • Creating a Plugin Project
      • Creating a Plugin Class
      • Adding UI to FlatRedBall
      • Using MVVM
      • Creating a NamedObjectSave-Editing Plugin
      • Adding File Format Support
      • Adding Code Files to a Game Project
      • Errors
      • Exporting a Plugin
    • Additional FlatRedBall Editor Tutorials
      • How to Create a First Person Camera
      • How to Play Sounds
      • How to Share Reference Data Between Screens and Entities
    • Math Tutorials
      • Circle Collision
      • Determining required magnitude for trajectory
      • Introduction to Collision
      • Power of Two
      • Rectangle Collision
      • rotation
      • statistics
      • trigonometry
      • vector
      • matrix
      • interpolation
    • Overworld Tutorials
      • Spinning Mode 7
        • New Project Setup
        • Adding Camera Code
        • Fading In and Out
  • 🎞️Videos
  • 📐FlatRedBall Editor
    • Display Settings
    • Entities
      • BaseEntity
      • Constructor
      • ConvertToManuallyUpdated
      • CreatedByOtherEntities
      • CustomActivity
      • CustomDestroy
      • CustomInitialize
      • Destroying Entities
      • Entity Performance
      • Export Entity
      • Implements IClickable
      • Implements ICollidable
      • Implements IDamageArea
      • Implements IDrawableBatch
      • Implements IGumCollidable
      • Implements IVisible
      • Implements IWindow
        • SlideOnClick
      • Import Entity
      • Inheriting from FlatRedBall Types
      • LayerProvidedByContainer
      • MoveToLayer
      • PooledByFactory
      • Top Down Movement
        • TopDownSpeedMultiplier
      • Use Global Content
    • Events
      • ResolutionRrOrientationChanged
    • Factories
      • CreateNew
      • EntitySpawned
      • Initialize
      • SortAxis
    • Files
      • File Types
        • Animation Chain List (.achx)
        • Comma Separated Values (.csv)
          • Combining .csvs With Entities
          • CreatesDictionary
          • Cross Referencing CSVs
          • Instantiating Custom Types
          • OrderedList
          • SetCreatedClass
            • generate-data-class
          • uniformrowtype
        • Effect (.fx, .fxb)
        • Font (.fnt)
        • JSON (.json)
        • Model (.fbx)
        • MP3
        • Node Network (.nntx)
        • OpenDocument Spreadsheet (.ods)
        • ShapeCollections (.shcx)
        • SplineList (.splx)
        • Texture2D (.png)
        • Wave (.wav)
      • Accessing Files in Code
      • Adding File Objects to Managers
      • Destroy on Unload
      • File Build Tool
      • Folders
      • Global Content Files
      • IsDatabaseForLocalizing
      • IsManuallyUpdated
      • IncludeDirectoryRelativeToContainer
      • LoadedAtRuntime
      • LoadedOnlyWhenReferenced
      • Name
      • Platform Inclusions
      • Project Specific Files
      • RuntimeType
      • SourceFile
      • UseContentPipeline
      • Wildcard Files
    • FileVersion (.gluj)
    • Generated Code
    • Global Content Files
      • LoadAsynchronously
      • Reload
      • Setting Files At Runtime
    • Live Edit
      • Render Targets
    • Menu
      • Content
        • Additional Content
          • Using Runtime Types as Objects
          • creating-runtime-objects
          • runtime-object-charateristics
          • simple-line-of-text-tutorial
        • Introduction
        • pipeline-settings
      • File
        • New Project
      • Edit
        • Find File References
      • Plugins
        • Install Plugin
        • Manage Plugins
      • Project
        • View Projects
      • Settings
        • Camera Settings
        • File Associations
        • File Build Tools
        • Performance Settings
      • Update
        • Introduction
        • glue-reference-menu-frbdk
        • glue-reference-menu-libraries
    • Multi-Platform
      • Synced Projects
      • Changing Main Project Type
      • Android
        • Distribution
        • Setup
      • iOS
        • Certificates and Profiles
        • Copying Projects to Mac
        • Using Xamarin Build Host
      • Switch (Nintendo)
      • Web
    • Objects
      • Object Types
        • AxisAlignedRectangle
        • Camera
        • CameraControllingEntity
        • Circle
        • CollisionRelationship
        • Layer
          • DestinationRectangle
          • Is2D
        • Polygon
        • PositionedObjectList
        • RenderTarget2D
        • ShapeCollection
        • SoundEffectInstance
        • Sprite
        • Text
        • TileNodeNetwork
      • AddToManagers
      • AttachToCamera
      • AttachToContainer
      • CallActivity
      • Collidable Objects
      • EntireFile
      • ExposedInDerived
      • HasPublicProperty
      • IgnoresPausing
      • IncludeInIClickable
      • IncludeInICollidable
      • IsContainer
      • LayerOn
      • Map
      • SetByDerived
      • SourceFile
      • SourceType
    • Plugins
      • glue-gluevault-component-pages-rendertargetrenderer
      • glue-gluevault-component-pages-simple-command-console
      • glue-gluevault-component-pages-squid-gui-integration
      • kalldrexx-interactive-debugging-console
    • Profiling
    • Screens
      • AsyncLoadingState
      • BaseScreen
      • Constructor
      • Creating a New Screen
      • CustomDestroy
      • CustomInitialize
      • DefaultLayer
      • GameScreen
      • IsActivityFinished
      • IsLoadingScreen
      • LoadStaticContent
      • MoveToScreen
      • PauseAdjustedCurrentTime
      • Set as StartUp Screen
      • UnloadsContentManagerWhenDestroyed
    • States
      • InterpolateToState
      • InterpolateToState vs InterpolateBetween
      • State Categories
      • State Classes
      • States and Inheritance
      • Tunneling Category Variables
    • Variables
      • CreatesEvent
      • HasAccompanyingVelocityProperty
      • IsShared
      • Proper Variable Naming
      • SetByDerived
      • Type
      • Variable Order
    • Visual Studio Project (.csproj)
  • 🏃Animation Editor
    • Frame Time
    • Animation Shapes and Collision
  • Tiled
    • Tiled Basics
      • Introduction
      • Creating a GameScreen
      • Adding Collision
      • Colliding Entities Against TileShapeCollections
      • Working with Multiple Levels
      • Creating Entities from Tiles
      • Creating Entities from Object Layers
      • Accessing Tiled Properties
      • Working with Tiled Shapes
    • Tiled Files in Entities
    • TileEntityInstantiator
    • Using TiledObjects.Generated.xml
    • LayeredTileMap
      • Collisions
      • Destroy
      • FromTiledMapSave
      • Z
    • MapDrawableBatch
      • AddTile
      • CoordinateAdjustment
      • GetBottomLeftWorldCoordinateForOrderedTile
      • MergeOntoThis
      • NamedTileOrderedIndexes
      • PaintTile
      • PaintTileTextureCoordinates
      • ParallaxX
      • Paste
      • Properties
      • RemoveQuads
      • RenderingScale
      • SortAxis
    • TiledMapSave
    • TileShapeCollection
      • AddCollisionAtWorld
      • AddCollisionFrom
      • AddCollisionFromTilesWithProperty
      • AddMergedCollisionFromLayer
      • AddMergedCollisionFromTilesWithProperty
      • AdjustRepositionDirectionsOnAddAndRemove
      • CollideAgainst
      • CollideAgainstClosest
      • GetRectangleAtPosition
      • InsertCollidables
      • LastCollisionAxisAlignedRectangles
      • Rectangles
      • RemoveFromManagers
      • RemoveSurroundedCollision
  • 🟩Gum
    • Tutorials
      • Introduction and Setup
      • Screens in Gum
      • Gum Objects in Code
      • Events on Gum Objects
      • Events on Gum Objects Part 2
      • Exposed Variables
      • States
      • Adding Code to Gum Objects
    • Accessing Gum Screens in Code
    • Adding Components to Layers
    • Adding Gum Screens to FlatRedBall
    • Animations in Code
    • Components in FlatRedBall Entities
    • Converting Gum Coordinates
    • Creating Components in Code
    • GraphicalUiElement as IWindow
    • Gum Resolution
    • Gum Properties Tab
    • Gum Animations
      • How to Play Gum Screen Animations
      • Named Events
      • Setting Gum Animationchain Achx in Code
  • 🦴Spine
    • Setup
    • Atlas
    • Changing Spine Textures at Runtime
    • SpineDrawableBatch
      • Event
      • PlayAnimation
      • SetCollision
      • Skeleton
  • ⏸️Aseprite
    • AnimationChainList
  • 🏫API Documentation
    • FlatRedBall Engine
      • AI
        • LineOfSight
          • VisibilityGrid
        • Pathfinding
          • PositionedNode
          • Link
            • Cost
            • NodeLinkingTo
          • NodeNetwork
            • GetPath
            • UpdateShapes
            • Visible
          • TileNodeNetwork
            • AddAndLinkTiledNode
            • AddAndLinkTiledNodeWorld
            • OccupyTileWorld
            • SetCosts
      • Audio
        • AudioManager
          • AreSoundEffectsEnabled
          • CurrentlyPlayingSong
          • MasterSongVolume
          • MasterSoundVolume
          • Play
          • PlaySong
          • PlaySongs
          • StopSong
        • PositionedSound
        • Sound
      • Camera
        • AbsoluteRightXEdge
        • AbsoluteRightXEdgeAt
        • AddLayer
        • AddSpriteToBillboard
        • AspectRatio
        • AttachTo
        • BackgroundColor
        • CameraCullMode
        • ClearMinimumsAndMaximums
        • ClearsDepthBuffer
        • DestinationRectangle
        • DrawsShapes
        • DrawsToScreen
        • DrawsWorld
        • FarClipPlane
        • FieldOfView
        • FixAspectRatioYConstant
        • ForceUpdateDependencies
        • GetViewport
        • IsSpriteInView
        • KeepSpriteInScreen
        • Layer
        • Layers
        • Main
        • MaximumX
        • Orthogonal
        • OrthogonalHeight
        • OrthogonalWidth
        • PixelsPerUnitAt
        • Position
        • PositionRandomlyInView
        • RelativeXEdgeAt
        • RemoveLayer
        • RotationMatrix
        • SetBordersAtZ
        • SetLookAtRotationMatrix
        • SetSplitScreenViewport
        • UpdateViewProjectionMatrix
        • UpVector
        • UsePixelCoordinates
        • UsePixelCoordinates3D
        • View
      • Content
        • ContentLoadBatch
        • AnimationChain
          • AnimationChainListSave
        • ContentManager
          • AddUnloadMethod
          • FileAliases
          • IsAssetLoadedByName
          • Load
          • LoadFromGlobalIfExists
          • Multiple Content Managers
        • Math
          • Geometry
            • ShapeCollectionSave
        • Polygon
          • PolygonSave
        • Scene
          • CameraSave
          • SceneSave
        • SpriteEditorScene
          • Camera
      • Debugging
        • Debugger
          • CommandLineWrite
          • GetFullPerformanceInformation
          • TextBlue
          • WriteAutomaticallyUpdatedObjectInformation
      • Entities
        • CameraControllingEntity
        • IDamageable
        • IDamageArea
      • FlatRedBallServices
        • AddDisposable
        • AddManager
        • CornerGrabbingResize
        • Draw
        • ForceClientSizeUpdates
        • Game
        • GetManagerInformation
        • GlobalContentManager
        • GraphicsOptions
        • Initialize
        • IsLoaded
        • Load
        • Owner
        • Random
        • RenderAll
        • Unload
        • Update
        • WindowHandle
      • Graphics
        • Animation
          • AnimationChain
            • Clone
            • FrameToFrame
            • TotalLength
          • AnimationChainList
          • AnimationController
          • AnimationFrame
            • RelativeX
            • ShapeCollectionSave
            • Texture
          • IAnimationChainAnimatable
            • Animate
            • Animation and Timing
            • AnimationChains
            • AnimationSpeed
            • CurrentChainName
            • CurrentFrameIndex
            • JustChangedFrame
            • JustCycled
            • UseAnimationRelativePosition
        • BitmapFont
          • BMFC File
          • BitmapCharacterInfo
          • FNT File
          • Glyphs
          • LineHeightInPixels
          • RenderToTexture2D
        • BlendOperation
        • ColorOperation
          • Add
          • Color
          • ColorTextureAlpha
          • InterpolateColor
          • Modulate
          • Texture
        • GraphicsOptions
          • Filtering
          • IsFullScreen
          • ResolutionHeight
          • SetFullScreen
          • SetResolution
          • SizeOrOrientationChanged
          • TextureFilter
          • TextureLoadingColorKey
          • UseMultisampling
        • IColorable
          • Alpha
          • BlendOperation
          • Blue
          • ColorOperation
        • IDrawableBatch
          • Z
          • RenderState
        • IVisible
          • IgnoresParentVisibility
        • Layer
          • Layer Membership Details
          • LayerCameraSettings
          • Remove
          • RenderTarget
          • SortType
          • Sprites
          • UsePixelCoordinates
        • LayerCameraSettings
          • OrthogonalWidth
          • TopDestination
        • Particle
          • EmissionSettings
            • Drag
            • PixelSize
            • ScaleX
          • Emitter
        • PostProcessing
          • SwapChain
        • RenderBreak
        • Renderer
          • Draw
          • LastFrameRenderBreakList
          • RenderBreaksAllocatedThisFrame
        • Text
          • AdjustPositionForPixelPerfectDrawing
          • ColorOperation
          • DisplayText
          • GetWidth
          • Font
          • HorizontalAlignment
          • InsertNewLines
          • MaxWidth
          • MaxWidthBehavior
          • NewLineDistance
          • NumberOfLines
          • ScaleX
          • SetColor
          • SetPixelPerfectScale
          • VerticalAlignment
          • Width
        • TextManager
          • AddManuallyUpdated
          • AddText
          • AddToLayer
          • FilterTexts
          • RemoveText
        • Texture
          • RenderTargetSprite
          • ImageData
            • ApplyColorOperation
            • Fill
            • FromTexture2D
      • Gui
        • Cursor
          • Camera
          • ClickNoSlideThreshold
          • CustomUpdate
          • GetRay
          • IngnoreInputThisFrame
          • IsInWindow
          • IsOn
          • IsOn3d
          • PrimaryClick
          • PrimaryClickNoSlide
          • PrimaryPushTime
          • ScreenX
          • SecondaryClick
          • SetControllingGamepad
          • SetJoystickControl
          • TransformationMatrix
          • WindowOver
          • WidowPushed
          • WorldPosition
          • WorldX
          • WorldXAt
          • WorldYAt
          • XForUi
        • GuiManager
          • AddDominantWindow
          • BringsClickedWindowsToFront
          • BringToFront
          • GamepadsForUiControl
          • MakeRegularWindow
          • RemoveWindow
          • SortZAndLayerBased
          • Windows
        • IClickable
        • IInputReceiver
          • IWindow
            • CallClick
            • Enabled
          • ReceiveInput
      • Input
        • AnalogButton
        • AnalogStick
          • IsMaxPositionNormalized
        • DelegateBased1DInput
        • DelegateBased2DInput
        • DelegateBasedPressableInput
        • I1DInput
        • I2DInput
        • IMouseOver
        • InputDeviceBase
        • InputManager
          • ClearAllInput
          • InputReceiver
        • IPressableInput
        • Keyboard
          • Clear
          • ControlPositionedObject
          • Get2DInput
          • GetKey
          • GetStringTyped
          • IgnoreKeyForOneFrame
          • KeyDown
          • KeyPushed
        • Mouse
          • GrabbedPositionedObject
          • IsOn3D
          • ModifyMouseState
          • Restricting Mouse to Screen Bounds
          • SetScreenPosition
        • TouchScreen
          • LastFrameGestures
          • ReadsGestures
        • Windows
          • WindowsInputEventManager
        • Xbox360GamePad
          • ButtonDown
          • ButtonMap
          • ButtonPosition vs Button
          • ButtonPushed
          • ControlPositionedObject
          • CreateDefaultButtonMap
          • Deadzone
          • DeadzoneType
          • FakeIsConnected
          • GamepadLayout
          • IgnoreButtonForOneFrame
      • Instructions
        • DelegateInstruction
        • IInstructable
          • Call
          • Cnstructions
          • Set
        • Instruction
        • InstructionList
          • ExecuteAndRemoveOrCyclePassedInstructions
        • InstructionManager
          • Add
          • AddSafe
          • Instructions
          • MoveThrough
          • MoveTo
          • MoveToAccurate
          • ObjectsIgnoringPausing
          • PauseEngine
          • Pulse
          • RotateToAccurate
        • Reflection
          • LateBinder
          • PropertyCollection
        • MethodInstruction
        • StaticMethodInstruction
      • IO
        • Csv
          • CsvHeader
          • CsvFilemanager
            • Cells with Multiple Lines
            • Color
            • CsvDeserializelist
            • Rows with Lists
          • RuntimeCsvRepresentation
            • FromList
            • GenerateCsvString
        • FileManager
          • BinarySerialize
          • CloneObject
          • FromFileText
          • GetAllFilesInDirectory
          • GetUserFolder
          • InitializeUserFolder
          • RelativeDirectory
          • SaveEmbeddedResource
          • SaveText
          • Standardize
          • UserApplicationDataForThisApplication
          • XmlDeserialize
          • XmlSerialize
      • Localization
        • LocalizationManager
      • Managers
        • IManager
      • Math
        • IAttachableRemovable
        • AttachableList
          • FindByName
          • MakeOneWay
        • Collision
          • CollisionManager
            • Relationships
            • Update
        • Geometry
          • AxisAlignedCube
            • CollideAgainstBounce
          • AxisAlignedRectangle
            • Axis Alignment And Rotation
            • CollideAgainstMoveSoft
            • Color
            • GetRandomPositionInThis
            • KeepThisInsideOf
            • LastMoveCollisionReposition
            • Left
            • RepositionDirections
          • Capsule2D
          • Circle
            • CollideAgainst
            • CollideAgainstBounce
            • CollideAgainstMove
            • IsPointInside
            • LastCollisionTangent
            • LastMoveCollisionReposition
            • ProjectParentVelocityOnLastMoveCollisionTangent
            • Visible
            • Z
          • Colliding a List of Shapes Against Itself
          • FloatRectangle
          • ICollidable
          • IScalable
            • Scale
          • Line
            • Color
            • LastCollisionPoint
            • RelativePoint1
            • SetFromAbsoluteEndpoints
          • Point
          • Polygon
            • AbsolutePointPosition
            • Clone
            • CollideAgainstBounce
            • CollideAgainstMove and Attachments
            • CollideAgainstMove
            • Color
            • CreateEquilateral
            • CreateRectangle
            • ForceUpdateDependencies
            • IsPointInside
            • LastMoveCollisionReposition
            • OptimizeRadius
            • Points
            • Position
            • ProjectParentVelocityOnLastMoveCollisionTangent
            • ScaleBy
            • Thin Polygon Problem
            • VectorFrom
            • Visible
            • Z
          • Segment
            • ClosestPointTo
          • Shape
          • ShapeCollection
            • AttachTo
            • AxisAlignedRectangles
            • CollideAgainst
            • CollideAgainstBounceWithoutSnag
            • CollideAgainstMove
            • CollideAgainstMoveWithoutSnag
            • LastCollisionAxisAlignedRectangles
            • SortAscending
            • Visible
          • ShapeManager
            • AddToLayer
            • Remove
            • ShapeDrawingOrder
          • ShapeMerger
          • Shapes and 2D Collision
          • Sphere
        • IAttachable
          • Attachment Updates in the Engine
          • Detach
          • ParentRotationChangesPosition
          • ParentRotationChangesRotation
          • TopParent
        • IRotatable
          • RotationMatrix
        • MathFunctions
          • AbsoluteToWindow
          • AngleToAngle
          • AngleToVector
          • GetPointInCircle
          • GetPositionAfterTime
          • RegulatAngle
          • RotatePointAroundPoint
          • RoundFloat
          • RoundToInt
          • WidowToAbsolute
        • Paths
          • Path
        • PositionedObjectList
          • Add
          • AttachTo
          • Clear
          • GetFirstAfter
          • GetFirstAfterPosition
          • SortXInsertionAscending
        • Splines
          • Spline
            • GetPositionAtLengthAlongSpline
      • Performance
        • Measurement
          • Section
            • GetAndStartContextAndTime
            • Save
            • ToStringVerbose
      • PositionedObject
        • Acceleration
        • AttachTo
        • Children
        • Clone
        • Drag
        • ForceUpdatedependencies
        • ForceUpdatedependenciesDeep
        • Initialize
        • KeepTrackOfReal
        • LastPosition
        • Mirrored properties
        • ParentRotationChangesPosition
        • ParentRotationChangesRotation
        • Position
        • RelativePosition
        • RelativeRotationZ
        • RelativeVelocity
        • RemoveSelfFromListsBelongingTo
        • RotationZ
        • SetRelativeFromAbsolute
        • TimedActivity
        • TopParent
        • UpdateDependencies
        • Velocity
        • Z
      • Screens
        • Screen
          • ContentManagerName
          • CustomDestroy
          • IsActivityFinished
          • MoveToScreen
          • PauseThisScreen
        • ScreenManager
          • Activity
          • CurrentScreen
          • Start
      • Sprite
        • Alpha
        • AnimateSelf
        • AnimationChains
        • AnimationSpeed
        • Bottom
        • BottomTextureCoordinate
        • Changing a Sprite's Origin
        • ColorOperation
        • CurrentChainName
        • CurrentFrameIndex
        • IgnoreAnimationChainTextureFlip
        • Inheriting from the Sprite Class
        • JustCycled
        • LeftTextureCoordinate
        • PixelSize
        • Position
        • RightTextureCoordinate
        • SetAnimationChain
        • SetScaleXRatioToY
        • Sorting and Overlapping
        • Sprite vs Texture2d
        • Texture Coordinates
        • Texture
        • TextureAddressMode
        • TextureCoordinate
        • TextureFilter
        • TextureScale
        • TimeIntoAnimation
        • TopTextureCoordinate
        • UseAnimationRelativePosition
        • Vertices
        • VerticesForDrawing
        • Visible
      • SpriteList
      • SpriteManager
        • AddDrawableBatch
        • AddManagedInvisibleSprite
        • AddManualSprite
        • AddParticleSprite
        • AddPositionedObject
        • AddSprite
        • AddToLayer
        • AddZBufferedDrawableBatch
        • AddZBufferedSprite
        • AutomaticallyUpdatedSprites
        • Camera
        • ConvertToAutomaticallyUpdated
        • ConvertToManagedInvisible
        • ConvertToManuallyUpdated
        • ConvertToZBufferedSprite
        • DrawableBatches
        • ManagedPositionedObjects
        • ManualUpdate
        • MaxParticleCount
        • MoveToBack
        • OrderedSortType
          • Z
        • OrderedSprites
        • RemoveDrawableBatch
        • RemoveLayer
        • RemovePositionedObject
        • RemoveSprite
        • RemoveSpriteOneWay
        • SortTexturesSecondary
        • SortYSpritesSecondary
        • UnderAllDrawnLayer
      • TimeManager
        • Accumulating Time
        • CurrentScreenSecondsSince
        • CurrentTime
        • Profiling
        • SecondDifference
        • SecondsSince
        • SumTimeSection
        • SystemCurrentTime
        • TimeFactor
        • Working with TimeSpan
      • Utilities
        • StringFunctions
    • FlatRedBall.Forms
      • Controls
        • Button
        • CheckBox
        • ComboBox
        • FrameworkElement
          • DefaultFormsComponents
          • HandleTab
          • Show
          • Visual
        • Games
          • DialogBox
          • OnScreenKeyboard
          • SettingsView
        • ListBox
        • ListBoxItem
        • RadioButton
        • ScrollBar
        • ScrollViewer
        • Slider
        • StackPanel
        • TextBox
        • TreeView
        • TreeViewItem
      • MVVM
        • DependsOnAttribute
    • FlatRedBall Editor Plugin
      • customvariable
      • Introduction
      • flatredball-glue-elements-objectfinder
      • flatredball-glue-guidisplay-propertygriddisplayer
      • Introduction
      • flatredball-glue-projectmanager
      • Introduction
      • flatredball-glue-saveclasses-namedobjectsave
      • flatredball-glue-saveclasses-referencedfilesave
      • flatredball-glue
        • plugins
          • flatredball-glue-exportedinterfaces-igluestate
          • flatredball-glue-exportedinterfaces-igluxcommands-addreferencedfiletoglobalcontent
          • flatredball-glue-exportedinterfaces-igluxcommands
          • Introduction
          • flatredball-glue-exportedinterfaces-iprojectcommands-makeabsolute
          • flatredball-glue-exportedinterfaces-iprojectcommands
          • flatredball-glue-interfaces-icodegeneratorplugin
          • flatredball-glue-interfaces-imenustripplugin
          • Introduction
          • flatredball-glue-pluginbase-getfilesreferencedby
          • flatredball-glue-pluginbase
          • Introduction
        • vshelpers
          • codebuilditemadder
    • FlatRedBall Editor (Glue)
      • AssetTypeInfo
      • Cleaning Up Screens
      • CodeGeneration
        • ICodeBlock
      • CustomActivity
      • CustomLoadStaticContent
      • Entity
        • Introduction
        • glue-reference-entities-destroy
      • Game1CodeGenerator
      • GetFile
      • PauseThisScreen
      • SaveClasses
        • GlueSettingsSave
      • Screen
        • glue-reference-screens-pauseadjustedsecondssince
    • Live Edit
      • EditorVisuals
        • Circle
        • Text
      • Instance Creation
    • Gum Runtime
      • GraphicalUiElement
        • GetAbsoluteLeft
        • GetGraphicalUiElementByName
        • HasCursorover
        • InterpolateBetween
        • InterpolateTo
        • MoveToFrbLayer
        • RaiseChildrenEventsOutsideOfBounds
        • SetProperty
        • ShowLineRectangles
        • TestCollision
      • RenderingLibrary
        • camera
        • ipositionedsizedobject
        • graphics
          • Layer
          • text
            • textrenderingmode
    • iOS
      • uikit-uiviewcontroller
    • Microsoft.Xna.Framework
      • Audio
        • SoundEffect
        • SoundEffectInstance
      • Color
      • Introduction
      • Game
        • IsActive
        • IsFixedTimeStep
        • IsMouseVisible
        • TargetElapsedTime
      • GameWindow
        • Introduction
        • Introduction
        • handle
      • Graphics
        • Shared Parameters
        • model
        • spritebatch
        • GraphicsDevice
          • renderstate
          • SetRenderTarget
        • renderstate
          • referencealpha
        • Texture2D
          • Creating New Textures Programatically
      • GraphicsDeviceManager
        • supportedorientations
      • Media
        • MediaPlayer
        • Song
          • FromUri
      • Vector3
    • NAudio
      • NAudio_Song
    • SkiaGum
      • SkiaSpriteCanvas
      • Renderables
        • RenderableSkiaObject
    • State Interpolation
      • Tween
      • Tweener
      • TweenerManager
  • 🏘️Contributing
    • How to Contribute
    • Builds (Releases)
      • Gum
    • Writing Documentation
    • Contributing Code (Pull Requests)
    • Automated Test Project
    • Programming Style Guide
  • 🎮FlatRedBall Games
    • angry-boy
    • avatar-skate
    • avatar-word-wave
    • bobble-biker
    • box-the-gopher
    • cargo-crush
    • combo-red-moon-rising
    • cubism
    • eat-my-shuriken-and-die
    • elemento
    • food-battler
    • free-towels
    • gravi-dot
    • hyperdodge
    • juice-factory
    • operation-sd-space-defense
    • picture-puzzle-revolution
    • prismatic
    • quarantine
    • quest-for-freshness
    • star-stepper
    • steambirds
    • sticky-bump
    • tile-trip
    • trashman
    • tumble-heads
    • udder-chaos
    • without-escape
    • games-oniro
  • 🔴FlatRedBall Logo
  • Installing XNA in Visual Studio 2017
Powered by GitBook
On this page
  • Introduction
  • Adjusting the Player and Camera
  • Breaking Blocks Conceptually
  • Adding Player BlockCollision
  • Adding Block Destroying Logic
  • Conclusion

Was this helpful?

Edit on GitHub
Export as PDF
  1. Tutorials
  2. Platformer Tutorials
  3. Breaking Blocks

Block Removal

PreviousCreating the Block EntityNextDealing Damage

Last updated 1 year ago

Was this helpful?

Introduction

Currently our game is fully playable as a platformer, but it is missing the feature we've been working towards on this whole tutorial - the removal of blocks on collision. Games which remove blocks based on collision are common. Some games, such as Mega Man and Metroid, remove blocks in response t being shot by a weapon. Super Mario Bros removes blocks in response to collision with the player. Specifically, if Mario has collected a power-up which makes him grow, then hitting a block from below destroys it.

This tutorial will implement this type of destruction since it will give us the opportunity to perform more advanced collision logic.

Adjusting the Player and Camera

Before we add logic to destroy Blocks, we will make some minor adjustments to the game to make it easier to control, and easier to see our player. First, we'll adjust the collision on the player.

  1. Expand the Player Objects folder

  2. Select the AxisAlignedRectangle

  3. Change the Width to 16

  4. Change the Height to 24

We'll also adjust the movement of the player so it's a little easier to control.

  1. Click on the Player entity

  2. Select the Entity Input Movement tab

  3. Change the variables in this tab to the following values

    • Ground

      • Max Speed = 130

      • Jump Speed = 270

    • Air

      • Max Speed = 130

Next we'll zoom in the camera to make it easier to see the player.

  1. Click the Camera icon in Glue

  2. Change Resolution to 360x240

  3. Change Scale to 300%

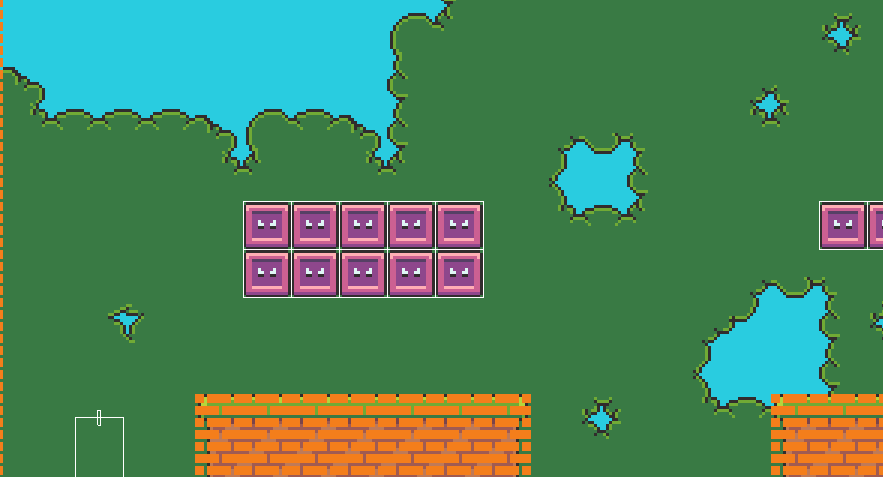

Now our character is easier to control and see.

Breaking Blocks Conceptually

To help us understand the code that we will be writing, let's first look at block breaking implementation concepts. For the player to break the blocks, a number of things must happen:

  1. The player must collide with the blocks. This may seem like an obvious requirement, but it's worth noting since it we will be writing code in the PlayerListVsBlockList collision relationship.

  2. The player must hit the block from below.

  3. Only one block can be destroyed at a time. Modern Super Mario Bros. games do support destroying multiple blocks at the same time, but the older games only support one at a time. We will follow the old approach.

  4. Once a block is destroyed, the surrounding block RepositionDirections must be adjusted to prevent snagging.

Of the four concepts listed above, the one which requires the most attention is the third.

Breaking One Block at a Time - Which Block Should Break?

To understand why breaking one block at a time adds complexity to our implementation, let's consider a few possible collision scenarios. The first scenario is the simplest - where the player collides with a single block as shown in the following image:

The player is represented by a blue rectangle and the block is represented by a red rectangle. In this case, the two overlap, and the player is hitting the block from below so the block should break. Keep in mind that the player may not be exactly below the block. The block should break even if the player is slightly offset, as shown in the following image:

In the image above, the block would still break. Of course things get a little more complicated when we add multiple blocks. For example, consider the following image:

Which block should break in this situation? The player overlaps more of the block on the right than the block on the left, so breaking the block on the right seems best. Unfortunately, when we perform collision between entities and players, the block on the right may not ever collide with the player. CollisionRelationships perform collisions between one player/block pair at a time, and which pair is checked first depends on the order of blocks in the BlockList, which can change depending on partitioning. In other words, when using CollisionRelationships, we cannot depend on collision being performed in a particular order. With this in mind, it's possible that the left-most tile collides with the player first, which would result in the player being shifted down, as shown in the following image:

If the left block collides first and the player is pushed down as a result of the collision, the right block will not perform collision with the player. The events raised for collision will only be raised for the left block. As explained above, the block which actually collides with the player is arbitrary - it could be the left or it could be the right. This means that we cannot rely purely on the Player vs Block relationship to decide which block to destroy - at least, not if we plan on controlling which block is destroyed in such a situation.

Solving Block Breaking with Sub Collisions

We can solve this problem by adding a second collision object to the Player to help us decide which block to destroy. Glue supports objects with multiple collision objects. Consider the following image, where the Player object has two collision shapes - a blue rectangle for the body and a green rectangle for determining which rectangle to destroy.

Of course, it is possible that a block collision may occur even without the green rectangle colliding, as is the case in a single-block collision where the player is offset from the block.

This means that we can not rely completely on either the body (blue) or sub collision (green) to decide which block to destroy. Instead, we need to use both to decide which to destroy. The logic should be as follows:

  • If the player collides with a block from below, then the player will destroy a block.

  • First, check all blocks to see if any block collides with the sub collision (green rectangle). If so, destroy that block.

  • Otherwise, if the sub collision (green rectangle) does not collide with any blocks, destroy the block that collided with the player body (blue)

This means that the sub collision is an optional collision. It should only be performed if the player body collides with the blocks from below. Therefore, we will be performing this collision manually in code rather than creating a collision relationship.

Adding Player BlockCollision

As mentioned above, Glue supports objects with multiple collision shapes. To add a new shape to the Player:

  1. Select the Player in Glue

  2. Select the Quick Actions tab and click the Add Object to Player button

  3. Select the AxisAlignedRectangle object type

  4. Enter the name BlockCollision

  5. Click OK

  6. Select the newly-created BlockCollision

  7. Set the following values:

    • Y = 12

    • Width = 1

    • Height = 5

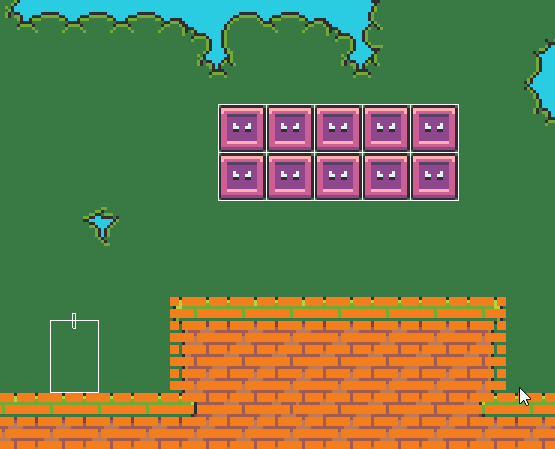

Our player now has a small rectangle at the top. However, this rectangle is currently considered as part of the entire player. This is most evident when hitting blocks from below. Notice that the new sub-collision performs solid collision.

We don't want this rectangle to perform solid collision - it should only be used in our code to check which block to break. To fix this, we can mark the BlockRectangle as being excluded from the default list of shapes used in collision. To do this:

  1. Select the BlockCollision object under Player

  2. Click the Properties tab

  3. Set the IncludeInICollidable to false

Now BlockCollision will still be part of the Player object but will not be considered in any CollisionRelationships (by default).

Adding Block Destroying Logic

Now that we have a BlockCollision rectangle, we can perform the logic explained above. We'll treat each of the four steps separately.

1. The Player Must Collide With the Blocks

We can handle Player vs Block collision by adding an event to this collision relationship:

  1. Expand GameScreen Objects folder in Glue

  2. Expand the Collision Relationships item

  3. Select PlayerListVsBlockList

  4. Select the Collision tab

  5. Click the Add Event button

  6. Click OK to accept the defaults

Glue has now added an event to the GameScreen.Events.cs file which is called whenever the Player collides with a Block.

The Player Must Hit the Block From Below

The OnPlayerListVsBlockListCollisionOccurred method is called whenever the player collides with a block from any side. This means that if the player is standing on a block, this function will be called every frame. We only want to destroy blocks if the player hits a block from below. Whenever a solid collision occurs, the objects being collided must be separated to prevent overlap. Since blocks cannot be moved when a collision occurs, the player must be moved. When hitting a block from below, the player must be moved downward (negative Y). We can check the player's AxisAlignedRectangleInstance.LastMoveCollisionReposition.Y value to see if the player was moved down due to the collision. If so, then the player hit the Block from below. Modify the OnPlayerListVsBlockListCollisionOccurred method as shown in the following code snippet:

void OnPlayerListVsBlockListCollisionOccurred (Entities.Player first, Entities.Block second)
{
    var wasPushedDown =
        first.AxisAlignedRectangleInstance.LastMoveCollisionReposition.Y < 0;
    if(wasPushedDown)
    {
        // The player hit the block from below
    }
}

Only One Block can be Destroyed at a Time

Now we can perform our destroy logic. As mentioned above, we will first check if the BlockCollision collides with any blocks. If so, we will destroy the block. Otherwise we will destroy the block that the body collided with. To do this, modify the OnPlayerListVsBlockListCollisionOccurred method as shown in the following code snippet:

void OnPlayerListVsBlockListCollisionOccurred (Entities.Player first, Entities.Block second)
{
    var wasPushedDown =
        first.AxisAlignedRectangleInstance.LastMoveCollisionReposition.Y < 0;
    if(wasPushedDown)
    {
        bool hasDestroyedBlock = false;
        // First see if the player (first) BlockCollision has collided with any
        // of the blocks
        for(int i = 0; i < BlockList.Count; i++)
        {
            if(BlockList[i].CollideAgainst(first.BlockCollision))
            {
                BlockList[i].Destroy();
                hasDestroyedBlock = true;
                break;
            }
        }
        // the BlockCollision doesn't collide with any of the blocks, so just destroy whichever block
        // we collided with
        if(!hasDestroyedBlock)
        {
            second.Destroy();
        }
    }
}

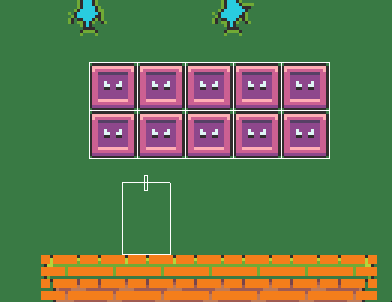

Now if we run the game, the Player can only destroy one Block at a time. If the Player collides with multiple Blocks, then the one which is directly above the Player will be destroyed. Of course, we there are some collision problems caused by the RepositionDirections not being adjusted properly. This is evident when trying to destroy the top row of blocks.

4. Once a Block is Destroyed, Update RepositionDirections

The RepositionDirections are initially set when all of the Blocks are created, and will work properly until one of the Blocks is removed. Once a Block is removed, surrounding Blocks must have their RepositionDirections updated. To do this, we will remove the Block's collision from the CombinedShapeCollection before destroying the Block. Doing so will result in all adjacent collisions updating their RepositionDirections. To do this, modify the OnPlayerListVsBlockListCollisionOccurred method as shown in the following code snippet:

void OnPlayerListVsBlockListCollisionOccurred (Entities.Player first, Entities.Block second)
{
    var wasPushedDown =
        first.AxisAlignedRectangleInstance.LastMoveCollisionReposition.Y < 0;
    if(wasPushedDown)
    {
        bool hasDestroyedBlock = false;
        // First see if the player (first) BlockCollision has collided with any
        // of the blocks
        for(int i = 0; i < BlockList.Count; i++)
        {
            if(BlockList[i].CollideAgainst(first.BlockCollision))
            {
                // New code:
                CombinedShapeCollection.RemoveRectangle(BlockList[i].AxisAlignedRectangleInstance);

                BlockList[i].Destroy();
                hasDestroyedBlock = true;
                break;
            }
        }
        // the BlockCollision doesn't collide with any of the blocks, so just destroy whichever block
        // we collided with
        if(!hasDestroyedBlock)
        {
            // New code:
            CombinedShapeCollection.RemoveRectangle(second.AxisAlignedRectangleInstance);

            second.Destroy();
        }
    }
}

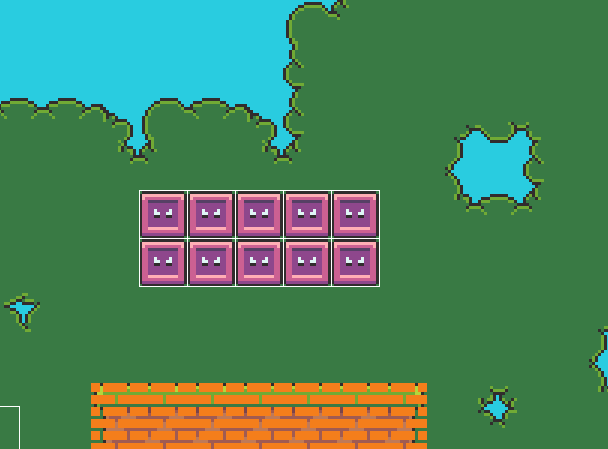

Notice that the rectangle is removed before the Block is destroyed. Also, notice that the RemoveRectangle method is called in two spots since we destroy blocks in two spots in the code above. Now the RepositionDirections are updated properly and the player will be able to collide with the blocks properly even after blocks are destroyed.

Conclusion

If you've made it this far, congratulations! You have worked through a complex collision example in FlatRedBall. Now you should be able to add blocks freely in Tiled and the game will collide properly.

🎓
