Direct Enemy Control

Introduction

This tutorial covers how to create enemy movement in a top down game with direct control over the enemy's input device. Compared to the Enemy Pathfinding tutorial, this tutorial shows how to directly control the input device manually. This approach is considered low level and is not recommended for beginners. If your game includes enemies which can pathfind through a map then the Enemy Pathfinding tutorial is recommended.

New Project Setup

This project tutorial assumes a Top Down Standard starting point (using the wizard), but the steps here can be used to add an Enemy entity to any project. We assume that the game already has levels.

Enemy Entity

We'll be creating a new Enemy entity for this tutorial. To do this:

  1. Click the Quick Actions tab

  2. Click the Add Entity button

  3. Enter the name Enemy

  4. Check AxisAlignedRectangle

  5. Check Top-Down for the Input Movement Type

  6. Leave the rest of the defaults and click OK

We will also change the color of the enemy rectangle to tell it apart from the player:

  1. Expand the Enemy Object folder

  2. Select AxisAlignedRectangleInstance

  3. Select the Variables tab

  4. Change Width to 16

  5. Change Height to 16

  6. Change Color to Red

Adding an Enemy to Level1

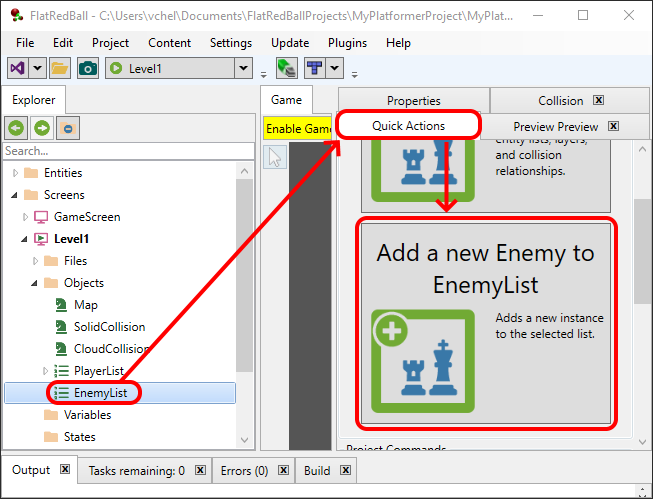

To add an enemy to Level1:

  1. Expand the Screens folder, then expand Level1's Objects folder

  2. Select the EnemyList

  3. Click the Quick Actions tab

  4. Click Add a new Enemy to Enemy List

  5. Modify the X and Y values for the new enemy so it is inside of the level boundaries by changing X to 160 and Y to -160

Setting the InputDevice

So far our Enemy instance is an entity with no behavior - it simply stays in the same spot when the game runs. First, we'll mark it as using Top-Down movement:

  1. Select the Enemy entity

  2. Click the Entity Input Movement tab

  3. Set Input Movement Type to Top-Down

  4. Set Input Device to None (Can Assign in Code)

Now our Enemy has the behavior of top-down movement, but it is not using an input device for movement. Custom input can be set by defining an input device class which inherits from FlatRedBall.Input.InputDeviceBase. To do this:

  1. Open the project in Visual Studio

  2. Create a new class called EnemyInput. Mine is in an Input folder.

The EnemyInput class needs to inhert from the FlatRedBall.Input.InputDeviceBase class which provides virtual methods to control how the input device behaves. Although the InputDeviceBase class offers many virtual methods, the only two that the top-down movement logic uses are:

  • GetDefault2DInputX

  • GetDefault2DInputY

We can override these to return values between -1 and 1. In this case we'll return constant values to test the functionality, as shown in the following code snippet.

internal class EnemyInput : FlatRedBall.Input.InputDeviceBase
{
    protected override float GetDefault2DInputX()
    {
        return 1.0f; // 1 means all the way to the right
    }
    protected override float GetDefault2DInputY()
    {
        return -.5f; // Negative values are down, so -.5 means halfway down
    }
}

Next we need to assign the EnemyInput on the Enemy. To do this:

  1. Open the Entities/Enemy.cs file in Visual Studio

  2. Modify the CustomInitialize as shown in the following snippet:

public partial class Enemy
{
    private void CustomInitialize()
    {
        var input = new Input.EnemyInput();
        this.InitializeTopDownInput(input);
    }
    ...

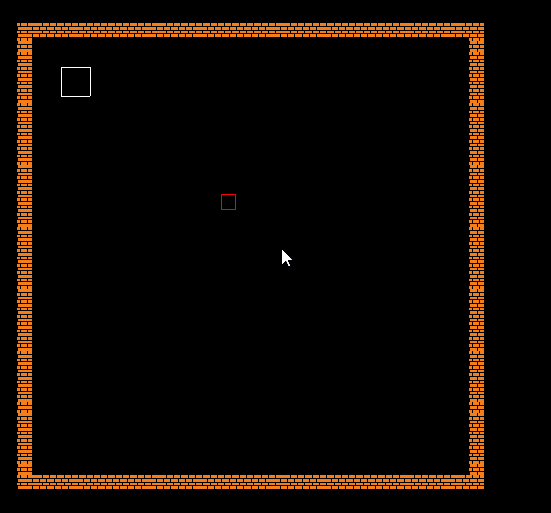

Now we can run the game and see the enemy move down to the right.

Building the Enemy Input

This tutorial primarily shows how to create an EnemyInput class which can be used to control your enemy. So far the device returns constant values for GetDefault2DInputX and GetDefault2DInputY. A real game would use logic to determine what to return, such as the position of the Player, or how far along the enemy has moved along a patrol path.

At this point the rest of the implementation is up to you depending on your needs.
