FlatRedBall
  • 🖥️Downloading FlatRedBall
  • 🏗️Building FlatRedBall From Source
    • Linking Games to FlatRedBall Engine Source
    • Linking FNA
  • ❓Need Help?
  • ✨FlatRedBall Features
  • 🎓Tutorials
    • Introduction To FlatRedBall
    • Quick Start Guide
    • Beefball - A Full FlatRedBall Tutorial Project
      • Creating a FlatRedBall Project
      • Creating an Entity
      • Creating a Screen
      • Controlling an Entity
      • Creating the Screen Collision
      • Advanced PlayerBall Controls
      • Creating the Puck Entity
      • Adding Multiple Players
      • Scoring and Restarting Rounds
      • Scoring Hud
      • Scoring Hud Logic
      • Adding Dashing
    • Platformer Tutorials
      • Platformer Basics
        • Creating an Entity
        • Controlling a Platformer Entity
        • Movement Values
        • Double Jump
      • Checkpoint and Level End
      • Climbing Ladders
      • Doors
      • GroundCollidedAgainst and Movement Values
      • Moving Platforms
      • Multiple Players
      • NPC Dialog
      • Breaking Blocks
        • New Project Setup
        • Creating Level1 Map
        • Creating the Block Entity
        • Block Removal
      • Dealing Damage
        • New Project Setup
        • Enemy Entity
        • Shooting Bullets
        • Damaging the Enemy
      • Enemy Movement
        • New Project Setup
        • Enemy Entity
        • Enemy Input Logic
        • Detecting Platform Edges
      • Ground Type and Water Movement
        • New Project Setup
        • Creating Level1 Map
        • Adding Ice and Water
        • Platformer Movement Values
      • Animation and Platformer Values
        • New Project Setup
        • Creating AnimationLayers
        • Modifying Platformer Values
      • Wall Sliding and Jumping
    • Damage Dealing
      • Setup
      • Team Index
      • Damage Events
      • IDamageArea Removal
      • Melee Damage
    • Entity Variants Using Inheritance
    • FlatRedBall.Forms
      • Getting Started with FlatRedBall.Forms
        • Setup
        • Working with Common Controls
        • Forms vs Gum in Code
      • Forms and Xbox360GamePad
      • Data Binding (BindingContext)
        • BindingContext Property
        • Binding FlatRedBall.Forms
        • Parent and Children Binding using BindingContext
        • ListBox Templates
      • Styling Forms
      • Defining New Forms Types
        • Adding New Types to FlatRedBall.Forms Library
      • Accessing Forms Events in Gum Runtimes
    • Top Down Games
      • Top Down Basics
        • Setup
        • Input Device
        • CurrentMovement
      • Enemy Movement
        • Enemy Pathfinding
        • Direct Enemy Control
      • GroundVelocity
      • Animation
      • Sorting
    • Post Processing
    • Rock Blaster - A Full FlatRedBall Tutorial Project
      • Introduction
      • Setup
      • Game Skeleton
      • Player Entity
      • Player Behavior
      • Rock Entity
      • Collision
      • Rock States
      • HUD
      • Multiple Players
      • Health
      • Health Part 2
      • Destroying Entities
      • Cleaning Up
    • Code-Only Projects (No Editor)
      • Creating a FlatRedBall Project
      • Adding a Circle
      • Loading Textures and Using Sprites
    • Code Tutorials
      • 3D Camera Setup
      • Adding FlatRedBall to a MonoGame/FNA Project
      • Adding WPF to an Existing Game
      • async and await
      • CLR Profiler
      • Collision Jitter
      • Culling
      • Customizing Cursor Visuals
        • Windows Desktop
        • windows-rt
      • Depth Buffer Z Fighting
      • Dictionaries and Enum Keys
      • FlatRedBall XNA in Windows Form
      • Improving Performance
        • CustomActivity Performance
        • Identifying Screen Creation Performance Issues
        • Rendering Performance
        • Manually Updated Objects
          • Introduction
          • Measuring Automatic Updates
          • Measuring Sprite Automatic Updates
          • Manual Particle Systems
      • Object Sorting
      • Pix
      • Rendering Sprites with Shaders
      • Tile-Based Movement
      • Velocity
    • Distribution
      • App Icon
      • Emptying bin Folder Using Probing Path
      • itch.io
      • Release Build
      • Steam
    • FlatRedBall and Velcro Physics
      • Using Velcro Physics with the FlatRedBall Editor
      • Code-Only Velcro Projects
    • FlatRedBall Editor Plugins
      • Introduction to FlatRedBall Plugins
      • Creating a Plugin Project
      • Creating a Plugin Class
      • Adding UI to FlatRedBall
      • Using MVVM
      • Creating a NamedObjectSave-Editing Plugin
      • Adding File Format Support
      • Adding Code Files to a Game Project
      • Errors
      • Exporting a Plugin
    • Additional FlatRedBall Editor Tutorials
      • How to Create a First Person Camera
      • How to Play Sounds
      • How to Share Reference Data Between Screens and Entities
    • Math Tutorials
      • Circle Collision
      • Determining required magnitude for trajectory
      • Introduction to Collision
      • Power of Two
      • Rectangle Collision
      • rotation
      • statistics
      • trigonometry
      • vector
      • matrix
      • interpolation
    • Overworld Tutorials
      • Spinning Mode 7
        • New Project Setup
        • Adding Camera Code
        • Fading In and Out
  • 🎞️Videos
  • 📐FlatRedBall Editor
    • Display Settings
    • Entities
      • BaseEntity
      • Constructor
      • ConvertToManuallyUpdated
      • CreatedByOtherEntities
      • CustomActivity
      • CustomDestroy
      • CustomInitialize
      • Destroying Entities
      • Entity Performance
      • Export Entity
      • Implements IClickable
      • Implements ICollidable
      • Implements IDamageArea
      • Implements IDrawableBatch
      • Implements IGumCollidable
      • Implements IVisible
      • Implements IWindow
        • SlideOnClick
      • Import Entity
      • Inheriting from FlatRedBall Types
      • LayerProvidedByContainer
      • MoveToLayer
      • PooledByFactory
      • Top Down Movement
        • TopDownSpeedMultiplier
      • Use Global Content
    • Events
      • ResolutionRrOrientationChanged
    • Factories
      • CreateNew
      • EntitySpawned
      • Initialize
      • SortAxis
    • Files
      • File Types
        • Animation Chain List (.achx)
        • Comma Separated Values (.csv)
          • Combining .csvs With Entities
          • CreatesDictionary
          • Cross Referencing CSVs
          • Instantiating Custom Types
          • OrderedList
          • SetCreatedClass
            • generate-data-class
          • uniformrowtype
        • Effect (.fx, .fxb)
        • Font (.fnt)
        • JSON (.json)
        • Model (.fbx)
        • MP3
        • Node Network (.nntx)
        • OpenDocument Spreadsheet (.ods)
        • ShapeCollections (.shcx)
        • SplineList (.splx)
        • Texture2D (.png)
        • Wave (.wav)
      • Accessing Files in Code
      • Adding File Objects to Managers
      • Destroy on Unload
      • File Build Tool
      • Folders
      • Global Content Files
      • IsDatabaseForLocalizing
      • IsManuallyUpdated
      • IncludeDirectoryRelativeToContainer
      • LoadedAtRuntime
      • LoadedOnlyWhenReferenced
      • Name
      • Platform Inclusions
      • Project Specific Files
      • RuntimeType
      • SourceFile
      • UseContentPipeline
      • Wildcard Files
    • FileVersion (.gluj)
    • Generated Code
    • Global Content Files
      • LoadAsynchronously
      • Reload
      • Setting Files At Runtime
    • Live Edit
      • Render Targets
    • Menu
      • Content
        • Additional Content
          • Using Runtime Types as Objects
          • creating-runtime-objects
          • runtime-object-charateristics
          • simple-line-of-text-tutorial
        • Introduction
        • pipeline-settings
      • File
        • New Project
      • Edit
        • Find File References
      • Plugins
        • Install Plugin
        • Manage Plugins
      • Project
        • View Projects
      • Settings
        • Camera Settings
        • File Associations
        • File Build Tools
        • Performance Settings
      • Update
        • Introduction
        • glue-reference-menu-frbdk
        • glue-reference-menu-libraries
    • Multi-Platform
      • Synced Projects
      • Changing Main Project Type
      • Android
        • Distribution
        • Setup
      • iOS
        • Certificates and Profiles
        • Copying Projects to Mac
        • Using Xamarin Build Host
      • Switch (Nintendo)
      • Web
    • Objects
      • Object Types
        • AxisAlignedRectangle
        • Camera
        • CameraControllingEntity
        • Circle
        • CollisionRelationship
        • Layer
          • DestinationRectangle
          • Is2D
        • Polygon
        • PositionedObjectList
        • RenderTarget2D
        • ShapeCollection
        • SoundEffectInstance
        • Sprite
        • Text
        • TileNodeNetwork
      • AddToManagers
      • AttachToCamera
      • AttachToContainer
      • CallActivity
      • Collidable Objects
      • EntireFile
      • ExposedInDerived
      • HasPublicProperty
      • IgnoresPausing
      • IncludeInIClickable
      • IncludeInICollidable
      • IsContainer
      • LayerOn
      • Map
      • SetByDerived
      • SourceFile
      • SourceType
    • Plugins
      • glue-gluevault-component-pages-rendertargetrenderer
      • glue-gluevault-component-pages-simple-command-console
      • glue-gluevault-component-pages-squid-gui-integration
      • kalldrexx-interactive-debugging-console
    • Profiling
    • Screens
      • AsyncLoadingState
      • BaseScreen
      • Constructor
      • Creating a New Screen
      • CustomDestroy
      • CustomInitialize
      • DefaultLayer
      • GameScreen
      • IsActivityFinished
      • IsLoadingScreen
      • LoadStaticContent
      • MoveToScreen
      • PauseAdjustedCurrentTime
      • Set as StartUp Screen
      • UnloadsContentManagerWhenDestroyed
    • States
      • InterpolateToState
      • InterpolateToState vs InterpolateBetween
      • State Categories
      • State Classes
      • States and Inheritance
      • Tunneling Category Variables
    • Variables
      • CreatesEvent
      • HasAccompanyingVelocityProperty
      • IsShared
      • Proper Variable Naming
      • SetByDerived
      • Type
      • Variable Order
    • Visual Studio Project (.csproj)
  • 🏃Animation Editor
    • Frame Time
    • Animation Shapes and Collision
  • Tiled
    • Tiled Basics
      • Introduction
      • Creating a GameScreen
      • Adding Collision
      • Colliding Entities Against TileShapeCollections
      • Working with Multiple Levels
      • Creating Entities from Tiles
      • Creating Entities from Object Layers
      • Accessing Tiled Properties
      • Working with Tiled Shapes
    • Tiled Files in Entities
    • TileEntityInstantiator
    • Using TiledObjects.Generated.xml
    • LayeredTileMap
      • Collisions
      • Destroy
      • FromTiledMapSave
      • Z
    • MapDrawableBatch
      • AddTile
      • CoordinateAdjustment
      • GetBottomLeftWorldCoordinateForOrderedTile
      • MergeOntoThis
      • NamedTileOrderedIndexes
      • PaintTile
      • PaintTileTextureCoordinates
      • ParallaxX
      • Paste
      • Properties
      • RemoveQuads
      • RenderingScale
      • SortAxis
    • TiledMapSave
    • TileShapeCollection
      • AddCollisionAtWorld
      • AddCollisionFrom
      • AddCollisionFromTilesWithProperty
      • AddMergedCollisionFromLayer
      • AddMergedCollisionFromTilesWithProperty
      • AdjustRepositionDirectionsOnAddAndRemove
      • CollideAgainst
      • CollideAgainstClosest
      • GetRectangleAtPosition
      • InsertCollidables
      • LastCollisionAxisAlignedRectangles
      • Rectangles
      • RemoveFromManagers
      • RemoveSurroundedCollision
  • 🟩Gum
    • Tutorials
      • Introduction and Setup
      • Screens in Gum
      • Gum Objects in Code
      • Events on Gum Objects
      • Events on Gum Objects Part 2
      • Exposed Variables
      • States
      • Adding Code to Gum Objects
    • Accessing Gum Screens in Code
    • Adding Components to Layers
    • Adding Gum Screens to FlatRedBall
    • Animations in Code
    • Components in FlatRedBall Entities
    • Converting Gum Coordinates
    • Creating Components in Code
    • GraphicalUiElement as IWindow
    • Gum Resolution
    • Gum Properties Tab
    • Gum Animations
      • How to Play Gum Screen Animations
      • Named Events
      • Setting Gum Animationchain Achx in Code
  • 🦴Spine
    • Setup
    • Atlas
    • Changing Spine Textures at Runtime
    • SpineDrawableBatch
      • Event
      • PlayAnimation
      • SetCollision
      • Skeleton
  • ⏸️Aseprite
    • AnimationChainList
  • 🏫API Documentation
    • FlatRedBall Engine
      • AI
        • LineOfSight
          • VisibilityGrid
        • Pathfinding
          • PositionedNode
          • Link
            • Cost
            • NodeLinkingTo
          • NodeNetwork
            • GetPath
            • UpdateShapes
            • Visible
          • TileNodeNetwork
            • AddAndLinkTiledNode
            • AddAndLinkTiledNodeWorld
            • OccupyTileWorld
            • SetCosts
      • Audio
        • AudioManager
          • AreSoundEffectsEnabled
          • CurrentlyPlayingSong
          • MasterSongVolume
          • MasterSoundVolume
          • Play
          • PlaySong
          • PlaySongs
          • StopSong
        • PositionedSound
        • Sound
      • Camera
        • AbsoluteRightXEdge
        • AbsoluteRightXEdgeAt
        • AddLayer
        • AddSpriteToBillboard
        • AspectRatio
        • AttachTo
        • BackgroundColor
        • CameraCullMode
        • ClearMinimumsAndMaximums
        • ClearsDepthBuffer
        • DestinationRectangle
        • DrawsShapes
        • DrawsToScreen
        • DrawsWorld
        • FarClipPlane
        • FieldOfView
        • FixAspectRatioYConstant
        • ForceUpdateDependencies
        • GetViewport
        • IsSpriteInView
        • KeepSpriteInScreen
        • Layer
        • Layers
        • Main
        • MaximumX
        • Orthogonal
        • OrthogonalHeight
        • OrthogonalWidth
        • PixelsPerUnitAt
        • Position
        • PositionRandomlyInView
        • RelativeXEdgeAt
        • RemoveLayer
        • RotationMatrix
        • SetBordersAtZ
        • SetLookAtRotationMatrix
        • SetSplitScreenViewport
        • UpdateViewProjectionMatrix
        • UpVector
        • UsePixelCoordinates
        • UsePixelCoordinates3D
        • View
      • Content
        • ContentLoadBatch
        • AnimationChain
          • AnimationChainListSave
        • ContentManager
          • AddUnloadMethod
          • FileAliases
          • IsAssetLoadedByName
          • Load
          • LoadFromGlobalIfExists
          • Multiple Content Managers
        • Math
          • Geometry
            • ShapeCollectionSave
        • Polygon
          • PolygonSave
        • Scene
          • CameraSave
          • SceneSave
        • SpriteEditorScene
          • Camera
      • Debugging
        • Debugger
          • CommandLineWrite
          • GetFullPerformanceInformation
          • TextBlue
          • WriteAutomaticallyUpdatedObjectInformation
      • Entities
        • CameraControllingEntity
        • IDamageable
        • IDamageArea
      • FlatRedBallServices
        • AddDisposable
        • AddManager
        • CornerGrabbingResize
        • Draw
        • ForceClientSizeUpdates
        • Game
        • GetManagerInformation
        • GlobalContentManager
        • GraphicsOptions
        • Initialize
        • IsLoaded
        • Load
        • Owner
        • Random
        • RenderAll
        • Unload
        • Update
        • WindowHandle
      • Graphics
        • Animation
          • AnimationChain
            • Clone
            • FrameToFrame
            • TotalLength
          • AnimationChainList
          • AnimationController
          • AnimationFrame
            • RelativeX
            • ShapeCollectionSave
            • Texture
          • IAnimationChainAnimatable
            • Animate
            • Animation and Timing
            • AnimationChains
            • AnimationSpeed
            • CurrentChainName
            • CurrentFrameIndex
            • JustChangedFrame
            • JustCycled
            • UseAnimationRelativePosition
        • BitmapFont
          • BMFC File
          • BitmapCharacterInfo
          • FNT File
          • Glyphs
          • LineHeightInPixels
          • RenderToTexture2D
        • BlendOperation
        • ColorOperation
          • Add
          • Color
          • ColorTextureAlpha
          • InterpolateColor
          • Modulate
          • Texture
        • GraphicsOptions
          • Filtering
          • IsFullScreen
          • ResolutionHeight
          • SetFullScreen
          • SetResolution
          • SizeOrOrientationChanged
          • TextureFilter
          • TextureLoadingColorKey
          • UseMultisampling
        • IColorable
          • Alpha
          • BlendOperation
          • Blue
          • ColorOperation
        • IDrawableBatch
          • Z
          • RenderState
        • IVisible
          • IgnoresParentVisibility
        • Layer
          • Layer Membership Details
          • LayerCameraSettings
          • Remove
          • RenderTarget
          • SortType
          • Sprites
          • UsePixelCoordinates
        • LayerCameraSettings
          • OrthogonalWidth
          • TopDestination
        • Particle
          • EmissionSettings
            • Drag
            • PixelSize
            • ScaleX
          • Emitter
        • PostProcessing
          • SwapChain
        • RenderBreak
        • Renderer
          • Draw
          • LastFrameRenderBreakList
          • RenderBreaksAllocatedThisFrame
        • Text
          • AdjustPositionForPixelPerfectDrawing
          • ColorOperation
          • DisplayText
          • GetWidth
          • Font
          • HorizontalAlignment
          • InsertNewLines
          • MaxWidth
          • MaxWidthBehavior
          • NewLineDistance
          • NumberOfLines
          • ScaleX
          • SetColor
          • SetPixelPerfectScale
          • VerticalAlignment
          • Width
        • TextManager
          • AddManuallyUpdated
          • AddText
          • AddToLayer
          • FilterTexts
          • RemoveText
        • Texture
          • RenderTargetSprite
          • ImageData
            • ApplyColorOperation
            • Fill
            • FromTexture2D
      • Gui
        • Cursor
          • Camera
          • ClickNoSlideThreshold
          • CustomUpdate
          • GetRay
          • IngnoreInputThisFrame
          • IsInWindow
          • IsOn
          • IsOn3d
          • PrimaryClick
          • PrimaryClickNoSlide
          • PrimaryPushTime
          • ScreenX
          • SecondaryClick
          • SetControllingGamepad
          • SetJoystickControl
          • TransformationMatrix
          • WindowOver
          • WidowPushed
          • WorldPosition
          • WorldX
          • WorldXAt
          • WorldYAt
          • XForUi
        • GuiManager
          • AddDominantWindow
          • BringsClickedWindowsToFront
          • BringToFront
          • GamepadsForUiControl
          • MakeRegularWindow
          • RemoveWindow
          • SortZAndLayerBased
          • Windows
        • IClickable
        • IInputReceiver
          • IWindow
            • CallClick
            • Enabled
          • ReceiveInput
      • Input
        • AnalogButton
        • AnalogStick
          • IsMaxPositionNormalized
        • DelegateBased1DInput
        • DelegateBased2DInput
        • DelegateBasedPressableInput
        • I1DInput
        • I2DInput
        • IMouseOver
        • InputDeviceBase
        • InputManager
          • ClearAllInput
          • InputReceiver
        • IPressableInput
        • Keyboard
          • Clear
          • ControlPositionedObject
          • Get2DInput
          • GetKey
          • GetStringTyped
          • IgnoreKeyForOneFrame
          • KeyDown
          • KeyPushed
        • Mouse
          • GrabbedPositionedObject
          • IsOn3D
          • ModifyMouseState
          • Restricting Mouse to Screen Bounds
          • SetScreenPosition
        • TouchScreen
          • LastFrameGestures
          • ReadsGestures
        • Windows
          • WindowsInputEventManager
        • Xbox360GamePad
          • ButtonDown
          • ButtonMap
          • ButtonPosition vs Button
          • ButtonPushed
          • ControlPositionedObject
          • CreateDefaultButtonMap
          • Deadzone
          • DeadzoneType
          • FakeIsConnected
          • GamepadLayout
          • IgnoreButtonForOneFrame
      • Instructions
        • DelegateInstruction
        • IInstructable
          • Call
          • Cnstructions
          • Set
        • Instruction
        • InstructionList
          • ExecuteAndRemoveOrCyclePassedInstructions
        • InstructionManager
          • Add
          • AddSafe
          • Instructions
          • MoveThrough
          • MoveTo
          • MoveToAccurate
          • ObjectsIgnoringPausing
          • PauseEngine
          • Pulse
          • RotateToAccurate
        • Reflection
          • LateBinder
          • PropertyCollection
        • MethodInstruction
        • StaticMethodInstruction
      • IO
        • Csv
          • CsvHeader
          • CsvFilemanager
            • Cells with Multiple Lines
            • Color
            • CsvDeserializelist
            • Rows with Lists
          • RuntimeCsvRepresentation
            • FromList
            • GenerateCsvString
        • FileManager
          • BinarySerialize
          • CloneObject
          • FromFileText
          • GetAllFilesInDirectory
          • GetUserFolder
          • InitializeUserFolder
          • RelativeDirectory
          • SaveEmbeddedResource
          • SaveText
          • Standardize
          • UserApplicationDataForThisApplication
          • XmlDeserialize
          • XmlSerialize
      • Localization
        • LocalizationManager
      • Managers
        • IManager
      • Math
        • IAttachableRemovable
        • AttachableList
          • FindByName
          • MakeOneWay
        • Collision
          • CollisionManager
            • Relationships
            • Update
        • Geometry
          • AxisAlignedCube
            • CollideAgainstBounce
          • AxisAlignedRectangle
            • Axis Alignment And Rotation
            • CollideAgainstMoveSoft
            • Color
            • GetRandomPositionInThis
            • KeepThisInsideOf
            • LastMoveCollisionReposition
            • Left
            • RepositionDirections
          • Capsule2D
          • Circle
            • CollideAgainst
            • CollideAgainstBounce
            • CollideAgainstMove
            • IsPointInside
            • LastCollisionTangent
            • LastMoveCollisionReposition
            • ProjectParentVelocityOnLastMoveCollisionTangent
            • Visible
            • Z
          • Colliding a List of Shapes Against Itself
          • FloatRectangle
          • ICollidable
          • IScalable
            • Scale
          • Line
            • Color
            • LastCollisionPoint
            • RelativePoint1
            • SetFromAbsoluteEndpoints
          • Point
          • Polygon
            • AbsolutePointPosition
            • Clone
            • CollideAgainstBounce
            • CollideAgainstMove and Attachments
            • CollideAgainstMove
            • Color
            • CreateEquilateral
            • CreateRectangle
            • ForceUpdateDependencies
            • IsPointInside
            • LastMoveCollisionReposition
            • OptimizeRadius
            • Points
            • Position
            • ProjectParentVelocityOnLastMoveCollisionTangent
            • ScaleBy
            • Thin Polygon Problem
            • VectorFrom
            • Visible
            • Z
          • Segment
            • ClosestPointTo
          • Shape
          • ShapeCollection
            • AttachTo
            • AxisAlignedRectangles
            • CollideAgainst
            • CollideAgainstBounceWithoutSnag
            • CollideAgainstMove
            • CollideAgainstMoveWithoutSnag
            • LastCollisionAxisAlignedRectangles
            • SortAscending
            • Visible
          • ShapeManager
            • AddToLayer
            • Remove
            • ShapeDrawingOrder
          • ShapeMerger
          • Shapes and 2D Collision
          • Sphere
        • IAttachable
          • Attachment Updates in the Engine
          • Detach
          • ParentRotationChangesPosition
          • ParentRotationChangesRotation
          • TopParent
        • IRotatable
          • RotationMatrix
        • MathFunctions
          • AbsoluteToWindow
          • AngleToAngle
          • AngleToVector
          • GetPointInCircle
          • GetPositionAfterTime
          • RegulatAngle
          • RotatePointAroundPoint
          • RoundFloat
          • RoundToInt
          • WidowToAbsolute
        • Paths
          • Path
        • PositionedObjectList
          • Add
          • AttachTo
          • Clear
          • GetFirstAfter
          • GetFirstAfterPosition
          • SortXInsertionAscending
        • Splines
          • Spline
            • GetPositionAtLengthAlongSpline
      • Performance
        • Measurement
          • Section
            • GetAndStartContextAndTime
            • Save
            • ToStringVerbose
      • PositionedObject
        • Acceleration
        • AttachTo
        • Children
        • Clone
        • Drag
        • ForceUpdatedependencies
        • ForceUpdatedependenciesDeep
        • Initialize
        • KeepTrackOfReal
        • LastPosition
        • Mirrored properties
        • ParentRotationChangesPosition
        • ParentRotationChangesRotation
        • Position
        • RelativePosition
        • RelativeRotationZ
        • RelativeVelocity
        • RemoveSelfFromListsBelongingTo
        • RotationZ
        • SetRelativeFromAbsolute
        • TimedActivity
        • TopParent
        • UpdateDependencies
        • Velocity
        • Z
      • Screens
        • Screen
          • ContentManagerName
          • CustomDestroy
          • IsActivityFinished
          • MoveToScreen
          • PauseThisScreen
        • ScreenManager
          • Activity
          • CurrentScreen
          • Start
      • Sprite
        • Alpha
        • AnimateSelf
        • AnimationChains
        • AnimationSpeed
        • Bottom
        • BottomTextureCoordinate
        • Changing a Sprite's Origin
        • ColorOperation
        • CurrentChainName
        • CurrentFrameIndex
        • IgnoreAnimationChainTextureFlip
        • Inheriting from the Sprite Class
        • JustCycled
        • LeftTextureCoordinate
        • PixelSize
        • Position
        • RightTextureCoordinate
        • SetAnimationChain
        • SetScaleXRatioToY
        • Sorting and Overlapping
        • Sprite vs Texture2d
        • Texture Coordinates
        • Texture
        • TextureAddressMode
        • TextureCoordinate
        • TextureFilter
        • TextureScale
        • TimeIntoAnimation
        • TopTextureCoordinate
        • UseAnimationRelativePosition
        • Vertices
        • VerticesForDrawing
        • Visible
      • SpriteList
      • SpriteManager
        • AddDrawableBatch
        • AddManagedInvisibleSprite
        • AddManualSprite
        • AddParticleSprite
        • AddPositionedObject
        • AddSprite
        • AddToLayer
        • AddZBufferedDrawableBatch
        • AddZBufferedSprite
        • AutomaticallyUpdatedSprites
        • Camera
        • ConvertToAutomaticallyUpdated
        • ConvertToManagedInvisible
        • ConvertToManuallyUpdated
        • ConvertToZBufferedSprite
        • DrawableBatches
        • ManagedPositionedObjects
        • ManualUpdate
        • MaxParticleCount
        • MoveToBack
        • OrderedSortType
          • Z
        • OrderedSprites
        • RemoveDrawableBatch
        • RemoveLayer
        • RemovePositionedObject
        • RemoveSprite
        • RemoveSpriteOneWay
        • SortTexturesSecondary
        • SortYSpritesSecondary
        • UnderAllDrawnLayer
      • TimeManager
        • Accumulating Time
        • CurrentScreenSecondsSince
        • CurrentTime
        • Profiling
        • SecondDifference
        • SecondsSince
        • SumTimeSection
        • SystemCurrentTime
        • TimeFactor
        • Working with TimeSpan
      • Utilities
        • StringFunctions
    • FlatRedBall.Forms
      • Controls
        • Button
        • CheckBox
        • ComboBox
        • FrameworkElement
          • DefaultFormsComponents
          • HandleTab
          • Show
          • Visual
        • Games
          • DialogBox
          • OnScreenKeyboard
          • SettingsView
        • ListBox
        • ListBoxItem
        • RadioButton
        • ScrollBar
        • ScrollViewer
        • Slider
        • StackPanel
        • TextBox
        • TreeView
        • TreeViewItem
      • MVVM
        • DependsOnAttribute
    • FlatRedBall Editor Plugin
      • customvariable
      • Introduction
      • flatredball-glue-elements-objectfinder
      • flatredball-glue-guidisplay-propertygriddisplayer
      • Introduction
      • flatredball-glue-projectmanager
      • Introduction
      • flatredball-glue-saveclasses-namedobjectsave
      • flatredball-glue-saveclasses-referencedfilesave
      • flatredball-glue
        • plugins
          • flatredball-glue-exportedinterfaces-igluestate
          • flatredball-glue-exportedinterfaces-igluxcommands-addreferencedfiletoglobalcontent
          • flatredball-glue-exportedinterfaces-igluxcommands
          • Introduction
          • flatredball-glue-exportedinterfaces-iprojectcommands-makeabsolute
          • flatredball-glue-exportedinterfaces-iprojectcommands
          • flatredball-glue-interfaces-icodegeneratorplugin
          • flatredball-glue-interfaces-imenustripplugin
          • Introduction
          • flatredball-glue-pluginbase-getfilesreferencedby
          • flatredball-glue-pluginbase
          • Introduction
        • vshelpers
          • codebuilditemadder
    • FlatRedBall Editor (Glue)
      • AssetTypeInfo
      • Cleaning Up Screens
      • CodeGeneration
        • ICodeBlock
      • CustomActivity
      • CustomLoadStaticContent
      • Entity
        • Introduction
        • glue-reference-entities-destroy
      • Game1CodeGenerator
      • GetFile
      • PauseThisScreen
      • SaveClasses
        • GlueSettingsSave
      • Screen
        • glue-reference-screens-pauseadjustedsecondssince
    • Live Edit
      • EditorVisuals
        • Circle
        • Text
      • Instance Creation
    • Gum Runtime
      • GraphicalUiElement
        • GetAbsoluteLeft
        • GetGraphicalUiElementByName
        • HasCursorover
        • InterpolateBetween
        • InterpolateTo
        • MoveToFrbLayer
        • RaiseChildrenEventsOutsideOfBounds
        • SetProperty
        • ShowLineRectangles
        • TestCollision
      • RenderingLibrary
        • camera
        • ipositionedsizedobject
        • graphics
          • Layer
          • text
            • textrenderingmode
    • iOS
      • uikit-uiviewcontroller
    • Microsoft.Xna.Framework
      • Audio
        • SoundEffect
        • SoundEffectInstance
      • Color
      • Introduction
      • Game
        • IsActive
        • IsFixedTimeStep
        • IsMouseVisible
        • TargetElapsedTime
      • GameWindow
        • Introduction
        • Introduction
        • handle
      • Graphics
        • Shared Parameters
        • model
        • spritebatch
        • GraphicsDevice
          • renderstate
          • SetRenderTarget
        • renderstate
          • referencealpha
        • Texture2D
          • Creating New Textures Programatically
      • GraphicsDeviceManager
        • supportedorientations
      • Media
        • MediaPlayer
        • Song
          • FromUri
      • Vector3
    • NAudio
      • NAudio_Song
    • SkiaGum
      • SkiaSpriteCanvas
      • Renderables
        • RenderableSkiaObject
    • State Interpolation
      • Tween
      • Tweener
      • TweenerManager
  • 🏘️Contributing
    • How to Contribute
    • Builds (Releases)
      • Gum
    • Writing Documentation
    • Contributing Code (Pull Requests)
    • Automated Test Project
    • Programming Style Guide
  • 🎮FlatRedBall Games
    • angry-boy
    • avatar-skate
    • avatar-word-wave
    • bobble-biker
    • box-the-gopher
    • cargo-crush
    • combo-red-moon-rising
    • cubism
    • eat-my-shuriken-and-die
    • elemento
    • food-battler
    • free-towels
    • gravi-dot
    • hyperdodge
    • juice-factory
    • operation-sd-space-defense
    • picture-puzzle-revolution
    • prismatic
    • quarantine
    • quest-for-freshness
    • star-stepper
    • steambirds
    • sticky-bump
    • tile-trip
    • trashman
    • tumble-heads
    • udder-chaos
    • without-escape
    • games-oniro
  • 🔴FlatRedBall Logo
  • Installing XNA in Visual Studio 2017
Powered by GitBook
On this page
  • Introduction
  • Creating a New Entity
  • Creating an object layer
  • Verifying the Door Entity
  • Colliding Against the Door Entity
  • Conclusion

Was this helpful?

Edit on GitHub
Export as PDF
  1. Tiled
  2. Tiled Basics

Creating Entities from Object Layers

PreviousCreating Entities from TilesNextAccessing Tiled Properties

Last updated 1 year ago

Was this helpful?

Introduction

In the previous tutorial we covered how to create entities from tiles. This approach can simplify entity creation, and works great for entities which are uniform (each instance is identical aside from position). Some entities require custom properties per-instance. For example, consider a game where players can walk through doors to enter other maps. In this case, each door entity needs to have a custom property for which level it links to. This walk-through shows how to create object layers in Tiled and how to create entities using these objects.

Creating a New Entity

For this tutorial we will be creating a Door entity which can be used to move the player from one level to the next. This entity will need to have collision so that the player can collide with it and we can respond to the collision. To create a Door entity:

  1. Select the Quick Actions tab in the FRB editor

  2. Click Add Entity

  3. Enter the name Door

  4. Check the Circle check box

  5. Leave the defaults and click OK

Now you will have a Door entity. We should change the color of the door so it doesn't look like the player (which is currently a white circle). To do this, change the CircleInstance's Color value to Green.

We need to create a variable for which level to load when the Player collides with the Door:

  1. Right-click on the Variables folder under the Door entity

  2. Select Add Variable

  3. Select the Create a new variable option

  4. Select string as the Type

  5. Enter the Name LevelToGoTo

  6. Click OK

The name of the variable that we created (LevelToGoTo) needs to match the name of the property that we will be adding to the tile later in this guide. Note that if using a entity types XML, the property will automatically be added.

Creating an object layer

Tiled object layers allow placing geometric shapes (such as rectangles, circles, and custom polygons) as well as free-floating images (not snapped to the grid). These images (also referred to as "tiles" in the Tiled program) can be used purely for non-interactive visuals or can be used to place entities. Objects can be created and added to tile maps, where each instance has all of its properties set individually, or objects can be given default properties in the tileset. First we'll set up the common properties on our Door tile:

  1. Open TiledIcons.tsx in Tiled (click the edit button if the tsx file is not already open)

  2. Select the door tile

  3. Enter Door as the Type. Note that this may already be the default.

  4. Click the + button to add a new property

  5. Enter the name LevelToGoTo

  6. Verify the type is string

We won't assign the value of LevelToGo yet, we'll do that per-instance. Now that we've defined the Door tile properties, we'll add a Door to the Level2Map.tmx file. Don't forget to save your tileset in Tiled. First we'll make an object layer:

  1. Open Level2Map.tmx in Tiled

  2. Click the Add Layer button

  3. Select Object Layer

  4. Name the new layer GameplayObjectLayer

Next we'll add an instance of the door to the EntityObjectLayer:

  1. Verify that EntityObjectLayer is selected

  2. Select the tile to be placed in the tile set

  3. Click on the tile map to place the tile. Be careful - if you place the door in the same place as where the player starts, the player will immediately collide with the door, and will move to the next level once we add the collision code.

Notice that the placed door may not align with the tiles. If you wish to make it align, you use the Select Objects command to select the tile and either move it visually or change its X an Y properties:

Alternatively, holding the CTRL key will snap objects to the grid while you place them. Now we can add the LevelToGoTo property to our placed tile:

  1. Click the Select Objects button (if not already selected)

  2. Select the placed Door object (if not already selected)

  3. Enter the value Level1 for the LevelToGoTo property. More generally, the door's LevelToGoTo property should be the name of the screen that we want to go to when the Player entity touches the Door.

Don't forget to save the tile map.

Verifying the Door Entity

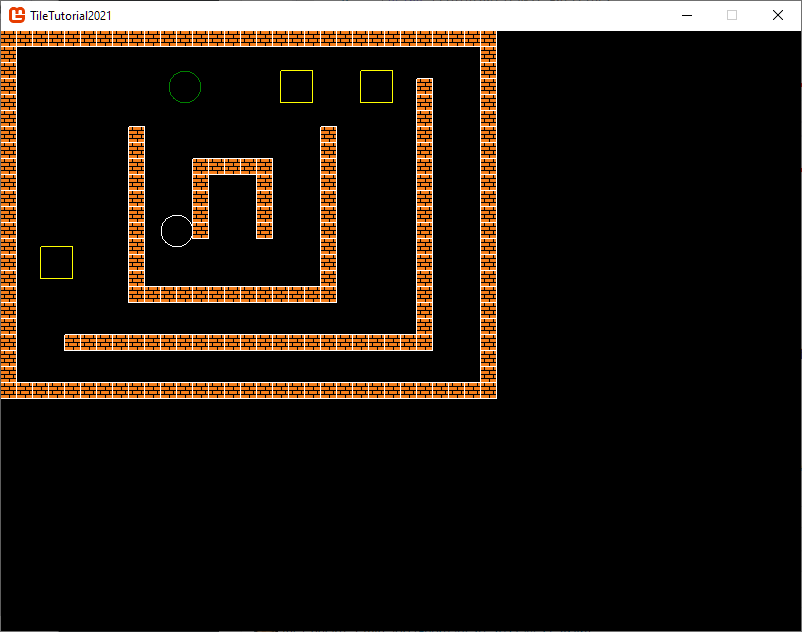

If we run our game now, we should see the Door tile that we placed in Tile replaced by a green circle, which is the collision of the Door entity:

Troubleshooting Entities Not Created

Colliding Against the Door Entity

We can use the Door entity to navigate between levels. We'll check collision between the Player and all doors in the DoorList object (our game only has one door, but it could be expanded to have more). If a collision occurs, we'll go to the level set by the Door's LevelToGoTo variable. First we'll create a collision relationship between the PlayerList and DoorList in our GameScreen:

  1. Expand the GameScreen Objects folder in Glue

  2. Drag the PlayerList onto the DoorList to create a CollisionRelationship

This time we won't change the Collision Physics because the purpose of the door isn't to block the movement of the player. Instead, we'll create an event which will contain code to move to a different level. To do this:

  1. Scroll down to the bottom of the Collision tab of the newly-created CollisionRelationship

  2. Click the Add Event button

  3. If asked, leave the defaults on the New Event window and click OK

Collision events are added to the Events file for the current screen. In this case, the events are added to GameScreen.Events.cs. To add handle the code:

  1. Open the project in Visual Studio

  2. Open GameScreen.Event.cs. Notice that the newly created collision event will be located under the GameScreen.cs file

  3. Enter the code to move to a screen based on the Door's LevelToGoTo

void OnPlayerVsDoorCollided (Entities.Player player, Entities.Door door)
{
  MoveToScreen(door.LevelToGoTo);
}

Now when the player collides with the door in Level2, the game will move to Level1.

Conclusion

Now that we've covered object layers, you can create entities which are either all identical on tile layers or which have custom properties. Here's some things to try next:

  • Add a door in Level1 which goes back to Level2. Remember, you don't have to set up the CollisionRelationship again. It's already set up in GameScreen which covers all levels.

  • Try adding collision between the player and monsters. On collision, you can handle the event by restarting the screen (indicating the player has died)

If you are not seeing the Door entity in the game, there may be a problem with the Tiled map, the inheritance in your game, or settings on the entity. Fortunately, the process that FlatRedBall uses to create entities on object layers is the same as the process for creating entities on tile layers. Therefore, to troubleshoot the problem you should go back to the and see if you can create entities from tiles. The previous tutorial also includes troubleshooting steps.

previous tutorial
Create a Door Entity with a Circle
Create a PlayerVsDoor by drag+dropping the PlayerList on the DoorList
Add Event to PlaeyrVsDoor
OnPlayerVsDoorCollided event in Visual Studio
Player moving from one level to another by touching the door
